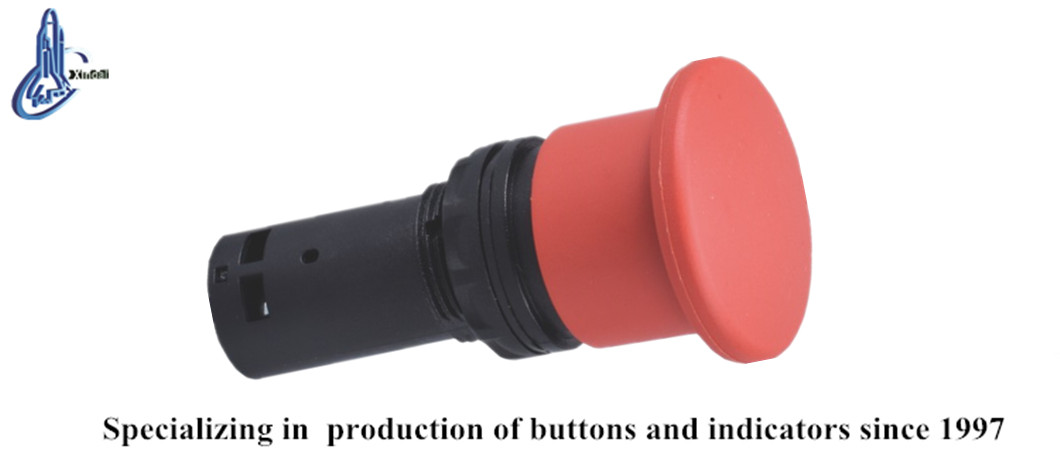

Spring Return Push Button Switch
This spring return push button switch is designed for controlling circuits with AC voltage up to 660V. It is used for controlling signals and interlocking purposes.
Technical Specifications
Product Overview
Industrial Spring Return Push Button
The XDL27-EC45 series is a robust mechanical push button switch engineered for demanding industrial control circuits. Featuring a reliable spring-return mechanism, the button automatically reverts to its original state upon release, making it ideal for signal, control, and interlocking applications. Built with high-grade anti-flame plastic and zinc alloy, these switches utilize silver alloy contacts to ensure exceptional electrical erosion resistance and long-term durability in power stations and communication networks.
Electrical Specifications
- Rated Insulation Voltage
- AC 600V (50Hz/60Hz)
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
Mechanical Specifications
Mechanical Life
- Pushbutton: 1,000,000 operations
- Selector switch: 500,000 operations

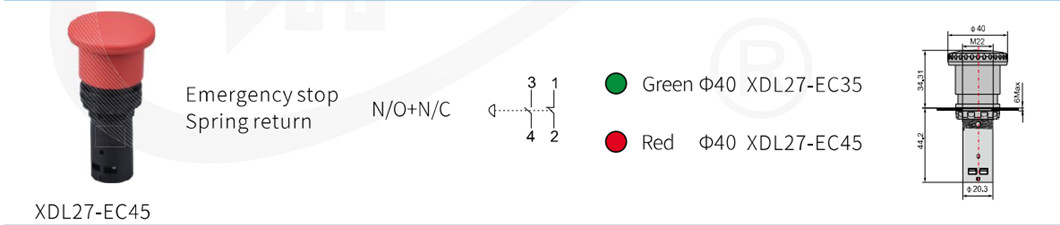

- Mounting Hole Diameter
- M22
- Mushroom Head Diameter
- 40 mm
Certifications
- Certified Standards
- CEISO 9001ROHSULGB/T14048.1IEC60947-5-1
Performance Metrics
Core Operational Metrics
2.5 kV
Withstand Voltage
60 cd/m2
Indicator Brightness
100,000 h
Continuous Work Life
