Spring Return Projecting Push Button Switch with Symbol
This spring return switch features a projecting push button with a symbol. It is designed for use in controlling circuits in a range of electrical applications.
Technical Specifications
Overview
Professional Control Switch

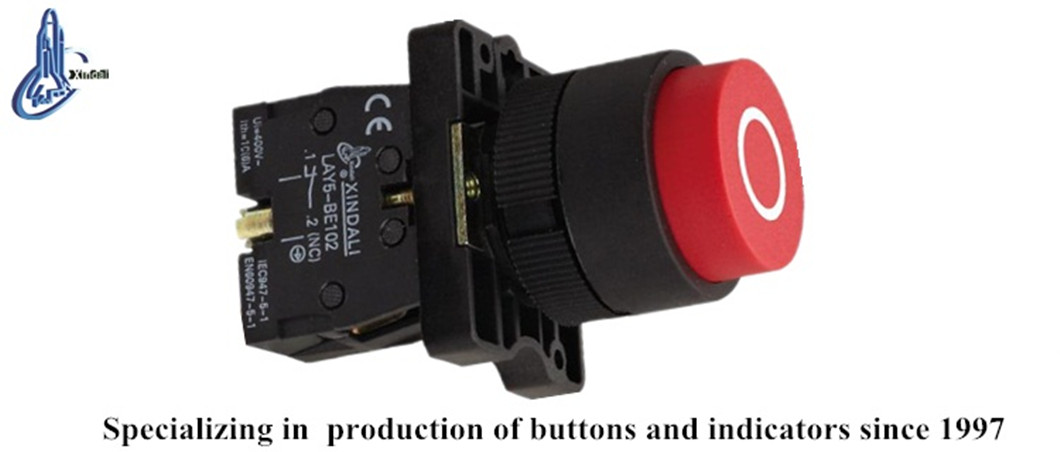

The LAY5-EL4322 is a high-performance spring return projecting push button switch, engineered for reliable signal control and interlocking in industrial electrical circuits. Built with a durable zinc alloy body and high-grade anti-flame plastic, it features silver alloy contacts to minimize electrical erosion. This versatile switch is compatible with AC voltages up to 660V and DC voltages below 400V, making it an ideal choice for control panels, machinery, and power distribution systems.
Technical Specifications
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Design & Construction

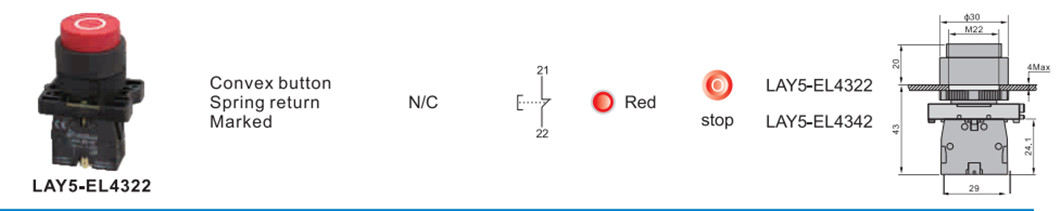

Contact Configuration
Normally Closed (NC)
- Mounting Hole Diameter
- 22 mm
- Switch Type
- Spring Return Projecting Push Button
Compliance
- Certifications & Standards
- CEISO 9001RoHSULIEC 60947-5-1GB/T14048.1
