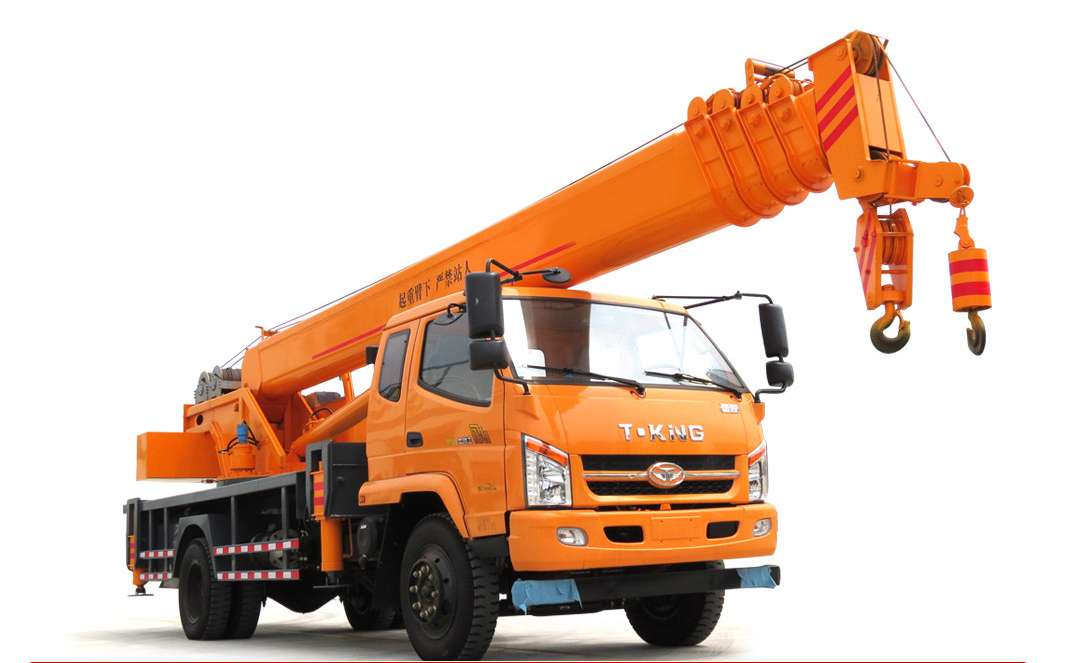

Small Truck Crane
This small truck crane is designed for diverse lifting applications. Its optimized layout and upgraded components ensure stable and reliable performance.
Technical Specifications
Overview
Versatile 12-Ton Truck Crane
This robust 12-ton truck-mounted crane is engineered for demanding lifting tasks in construction and infrastructure projects. It features a telescopic boom and an EFI supercharged engine for high efficiency and reliability. The vehicle is equipped with a dual-power oil and electricity system, 360-degree rotation, and multiple hydraulic safety features to ensure precise material handling.
Performance
Key Performance Metrics
13,000 kg
Max Lifting Capacity
85 km/h
Driving Speed
15 KW
Motor Power
Technical Specifications
Crane and Chassis Details
| Feature | Specification |
|---|---|
| Boom Configuration | 7 meters (6 or 7 knots) |
| Dimensions (LxWxH) | 9.6 x 2.2 x 3.1 m |
| Weight | 14000 kg |
| Tires | 825-20 |
| Turntable | 1.4 m internal tooth |
Features
Operational Capabilities
- Dual oil and electricity motor system with all-copper core
- Double pump confluence for hydraulic efficiency
- 360-degree continuous turntable rotation
- Planetary reduction mechanism for stable lifting
- Five enlarged and extended hydraulic outriggers
- Hydraulic cooling system
- Air brake system
- Safety & Driver Support
- Double hooksDouble winchesSteering assistanceHigh/Low speed drivingLuxury double cab
