Single Gang Push Button Switch with Screwless Terminal

This single gang, one-way push button switch is designed for electrical power transmission and distribution applications. It features a screw-less terminal for quick and secure wiring connections.

Request a Quote Download PDFPDF

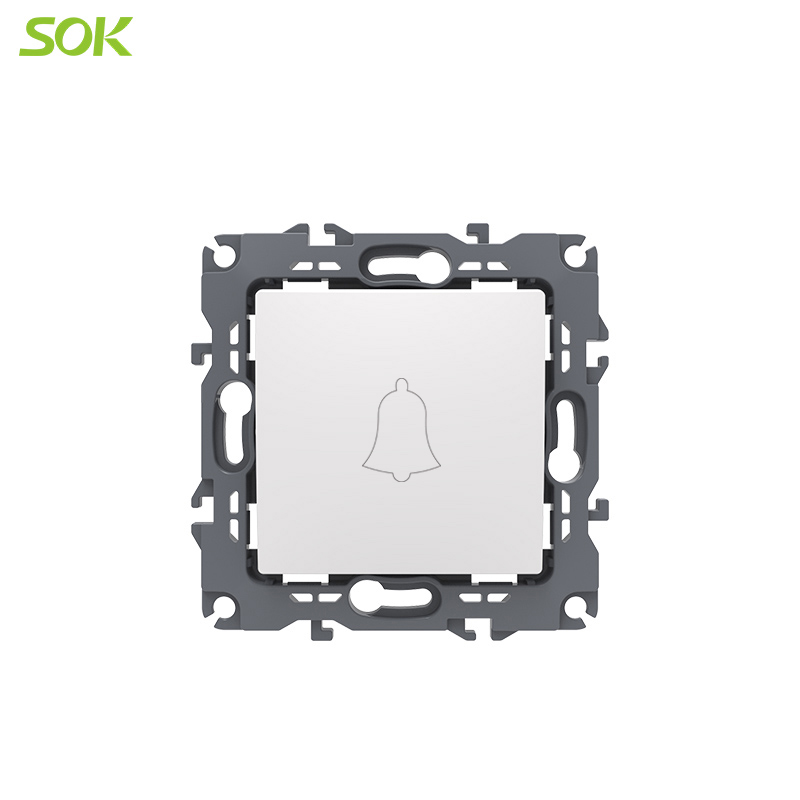

Single Gang 1 Way Push Button with Screw-less Terminal - Image 1

Technical Specifications

Product Overview

Professional Series Push Button Switch

The S80 series single gang 1-way push button switch is designed for high-performance electrical power distribution. Featuring a large-board aesthetic and reliable screwless terminal technology, it ensures quick installation and durable connectivity. This modular component is built from fire-resistant polycarbonate and is rigorously tested to ensure safety and long-term mechanical reliability in residential or commercial environments.

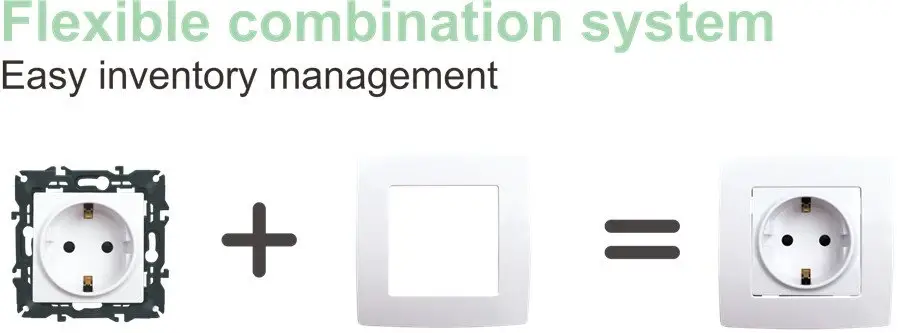

Modular assembly view showing socket insert and frame — Flexible modular system allows for easy inventory and custom configurations.

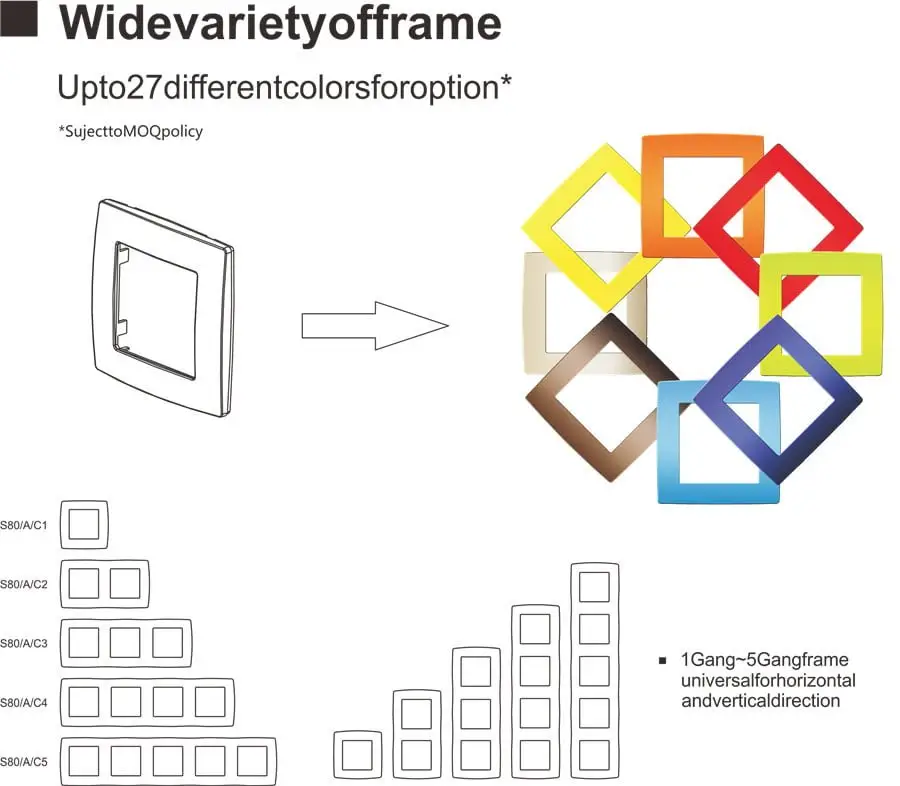

Wide variety of color frames and gang options — Frame options available in up to 27 colors, supporting 1 to 5-gang configurations.

Technical Specifications

Electrical Rating

10 A

Rated Current

250 V

Rated Voltage

Wiring Specifications

Screwless terminals for fast installation
Clamping capacity: 0-2.5 mm² for rigid cable
Clamping capacity: 0-2.5 mm² for flexible cable
Wire stripping length: 12.5 mm

Performance Metrics

Metric	Value
Electrical Durability	10,000 cycles
Dielectric Strength	2000 V
Opening Distance	> 3 mm
IP Rating	IP20

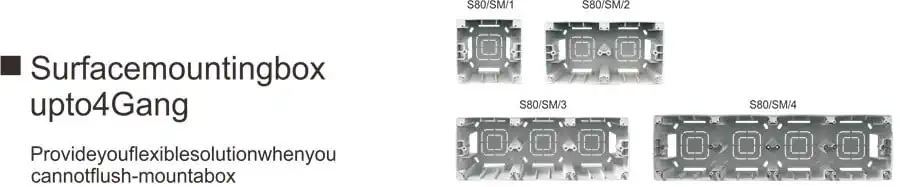

Surface mounting box installation — Surface mounting solutions for areas where flush-mount installation is not possible.

Technical dimensional drawing of the push button switch — Precise dimensional measurements for professional installation.

Certifications & Compliance

Certifications: TUVCEROHSEN/IEC 60669-1
