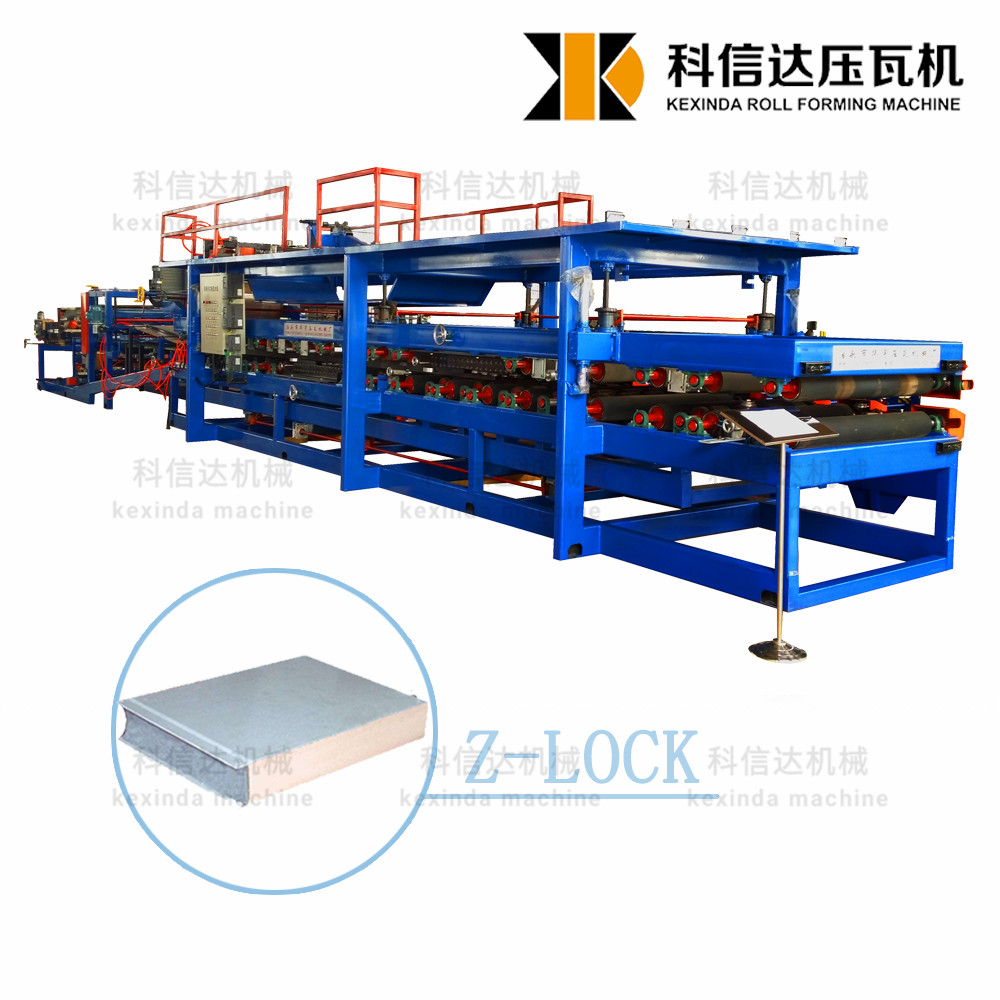

Sandwich Panel Roll Forming Machine

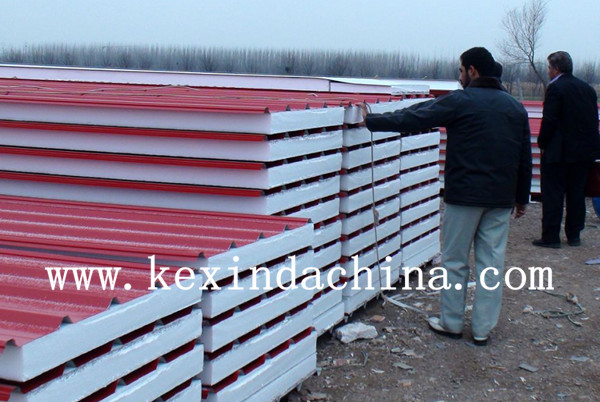

This machine forms sandwich panels with a design resembling traditional roof tiles. It offers resistance to frost, heat, hail, and gales, ensuring 100% waterproof performance due to the lateral run-off channel design.
Technical Specifications
Overview
High-Efficiency Sandwich Panel Production

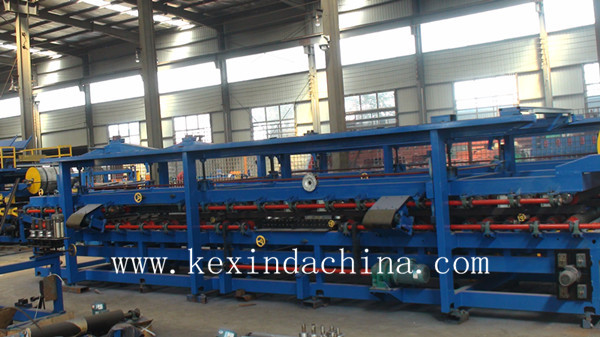

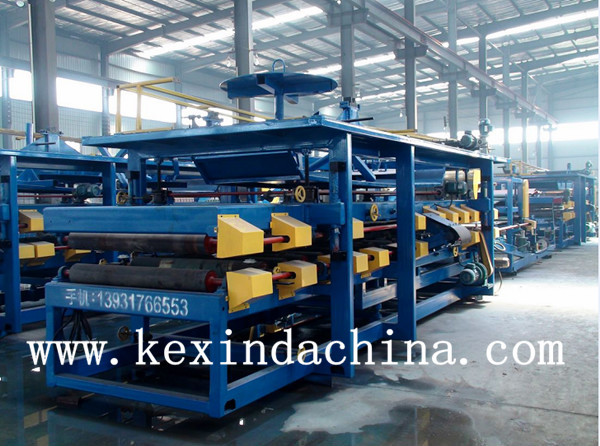

This roll forming machine is designed for the high-precision manufacturing of insulated sandwich panels used in modern construction. It features a robust forming stand that guarantees uniform quality and a stylish, traditional roof tile appearance for the final products. The system is fully automated to minimize cutting length tolerances and maximize production efficiency for B2B industrial applications.
Technical Parameters
Production Capacity
4.5 m/min
Max Speed
2 m/min
Min Speed
- Total Power
- 30 kW
- Total Weight
- 17 ton
- Production Line Dimensions
- 40000mm x 2500mm x 2200mm
Material Specifications
- Compatible Core Materials
- EPSRock WoolPolyurethane
- Metal Plate Thickness
- 0.3 - 0.8mm
- Core Thickness Range
- 20 - 300mm
Machine Features
Control System
PLC Automated Control
Operational Advantages

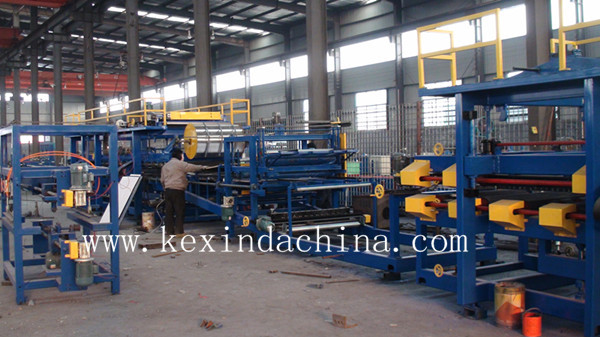

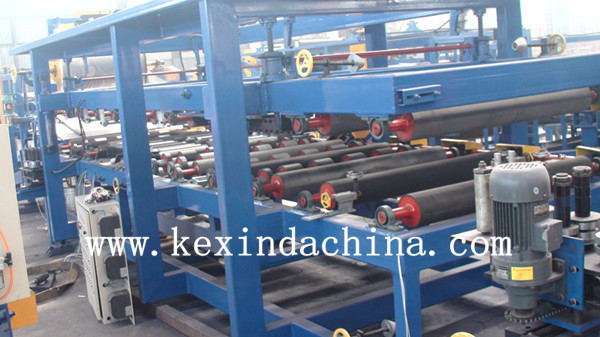

- Precise roll forming stations

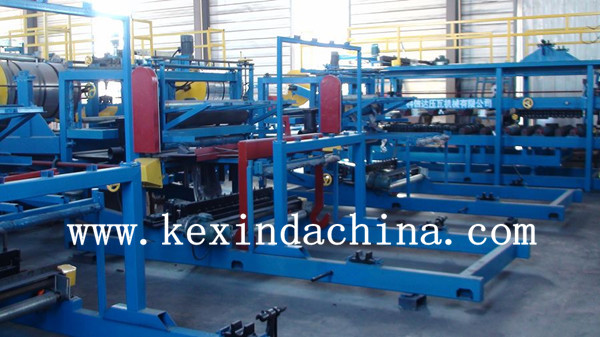

- High-solid forming stand for uniform quality
- Automatic cutting length tolerance minimization
- Integrated decoiling and leveling units
- Hydraulic or pneumatic cutting systems
Final Product Benefits

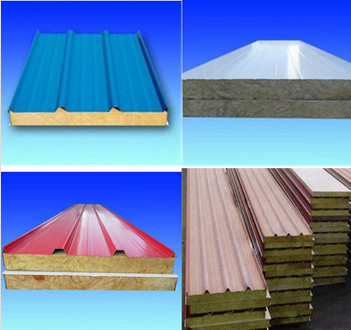

Panel Performance
- 100% Waterproof with lateral run-off channels
- Resistant to frost, heat, hail, and gales
- Elegant and noble aesthetic appearance
- Traditional roof tile design profile
Applications
- Typical Applications
- Industrial FactoriesHotelsExhibition CentersVillasCivil ConstructionWarehouses
