Technical Specifications
Overview
High-Efficiency Double Layer Roofing Solution

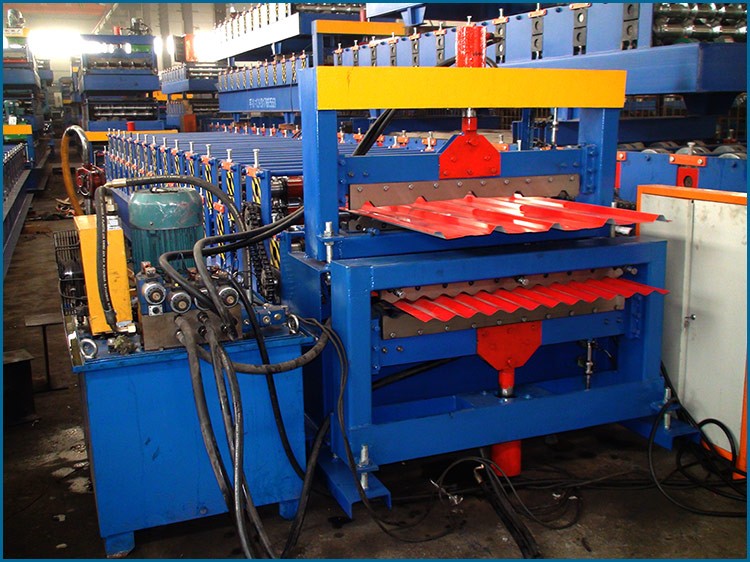

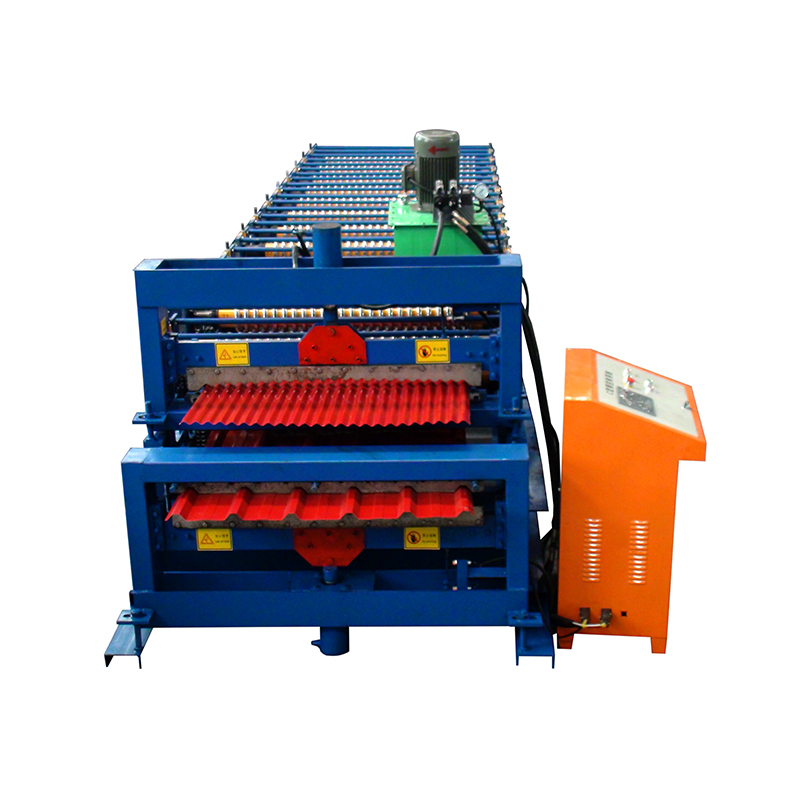

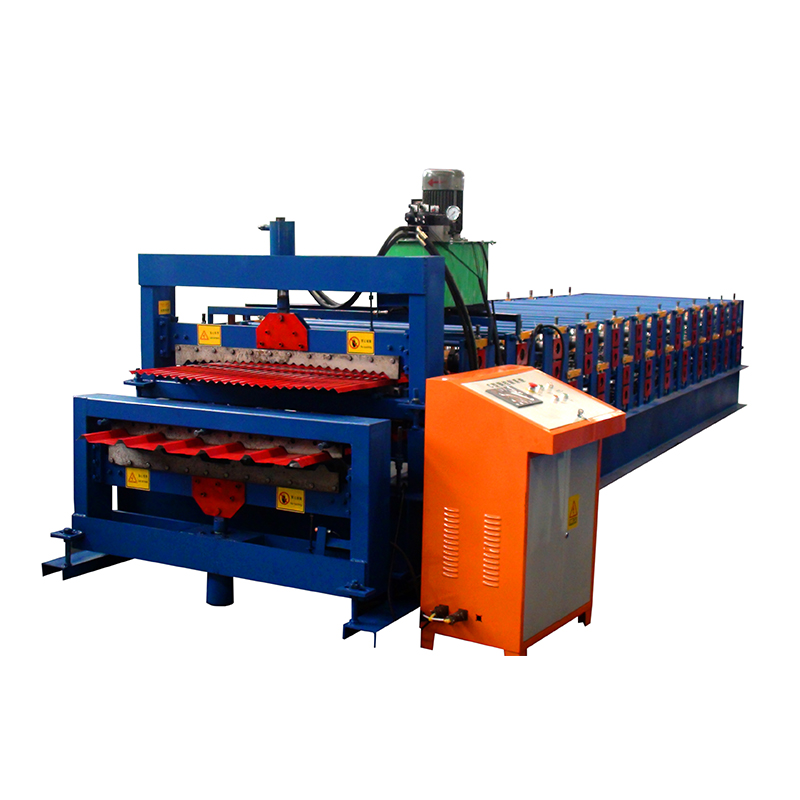

The 836+840 double layer metal roofing sheet machine is a versatile roll forming solution designed to produce two different profiles from a single compact unit. Engineered for high-volume production, it efficiently processes color steel, galvanized sheets, and aluminum coils into precise IBR and corrugated profiles. This automated system features a robust hydraulic cutting mechanism and a user-friendly PLC control interface, making it an ideal choice for industrial, commercial, and residential roofing manufacturing.
Key Performance Metrics
Key Performance Metrics
12 m/min
Max Productivity
5 T
Uncoiler Capacity
15 m/min
Max Working Speed
Material Compatibility
- Suitable Materials
- Color steel plateGalvanized sheetAluminum coils
- Material Thickness Range
- 0.3 - 0.8mm
- Feeding Material Width
- 914 - 1250mm
Technical Specifications
- Roller Stations
- 11-18 rows (customizable)
- Roller Material
- High grade No.45 forged steel
- Shaft Diameter
- 70-80mm

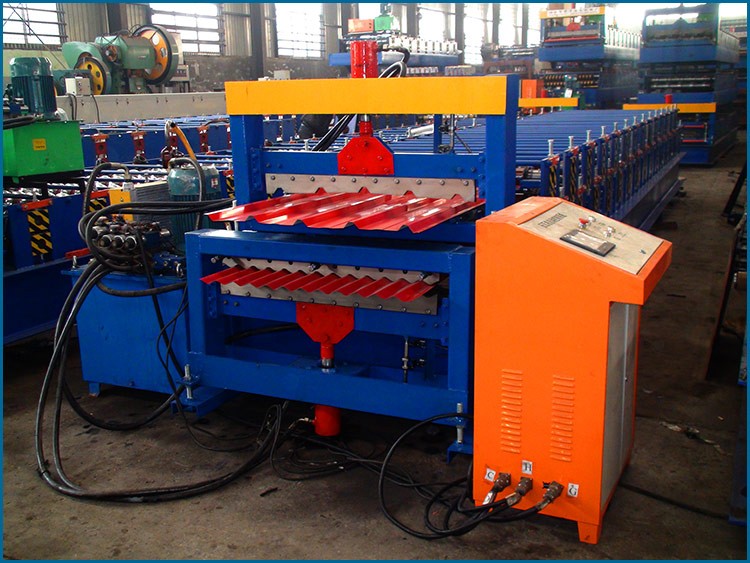

Control & Automation
Control System
- PLC Computer Control
- Automatic and Manual modes
- Programmable profile length and quantity
- Multi-language support (English, Chinese, Spanish, Russian)
Hydraulic & Cutting System
Cutting System Details
- Blade Material: Cr12Mov with quenched treatment
- Drive: Hydraulic drive
- Hydraulic Power: 4kW
- Working Pressure: 12-16Mpa (adjustable)
- Oil Type: 46# hydraulic oil
Uncoiler & Output
Manual Uncoiler Specifications
| Parameter | Value |
|---|---|
| Inner Diameter | 500-508mm |
| Max Outer Diameter | 1250mm |
| Max Coil Width | 1300mm |
| Main Motor Power | 5.5KW AC motor |
Certifications & Quality
Quality Standards
CE CertifiedISO 9001Assessed Supplier
Service & Support
- Warranty Period
- 1 Year
