Rotary Indicator Pushbutton Switch IP68 Waterproof
This rotary indicator pushbutton switch is designed for on and off control. Its IP68 waterproof rating ensures reliable performance in harsh environments.
Technical Specifications
Product Overview
Industrial Rotary Indicator Switch

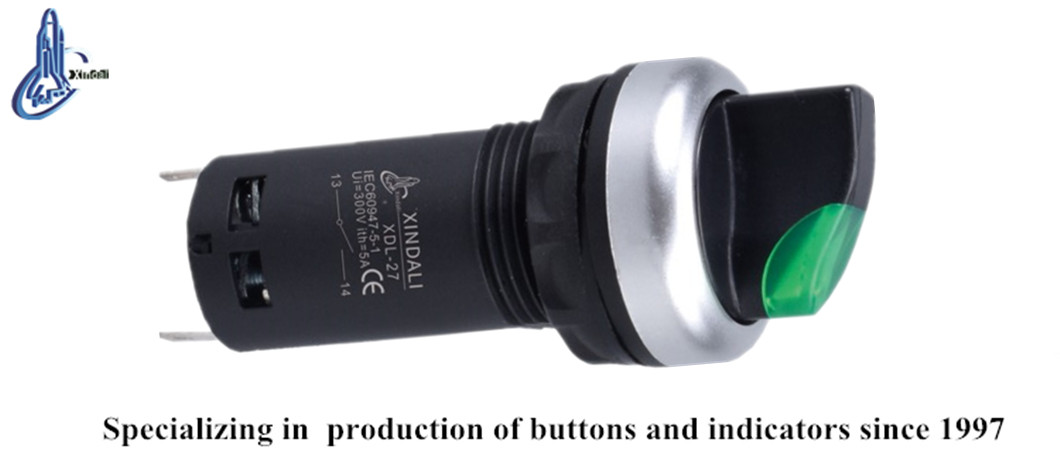

The XDL27-CK2361 is a high-performance rotary indicator pushbutton switch engineered for demanding industrial environments. Featuring a durable high-grade anti-flame plastic construction and an IP68 waterproof rating, this switch ensures reliable operation in both wet and dusty conditions. It is designed for circuit control in AC systems up to 660V and DC systems below 400V, making it ideal for signal, warning, and emergency control purposes.
Electrical Specifications
Rated Voltage
660 V
AC Voltage Capacity
400 V
DC Voltage Capacity
Insulation Performance
- Rated Insulation Voltage: AC 600V (50Hz/60Hz)
- Insulation Resistance: ≥50MΩ
- Withstand Voltage: AC 2.5KV/min
Mechanical Specifications
Mechanical Life Cycles
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Standards and Certification
- Certifications
- CEISO9001ROHSUL
- Standards Compliance
- GB/T14048.1IEC60947-5-1
Technical Details

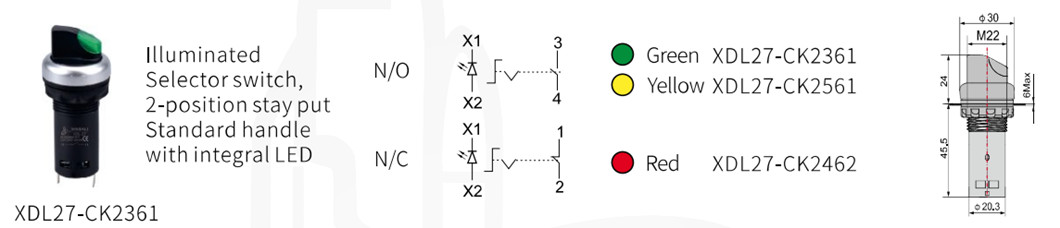

Physical Dimensions
| Parameter | Value |
|---|---|
| Mounting Size | M22 |
| Head Diameter | 30 mm |
| Max Panel Thickness | 6 mm |
| Overall Height | 45.5 mm |
