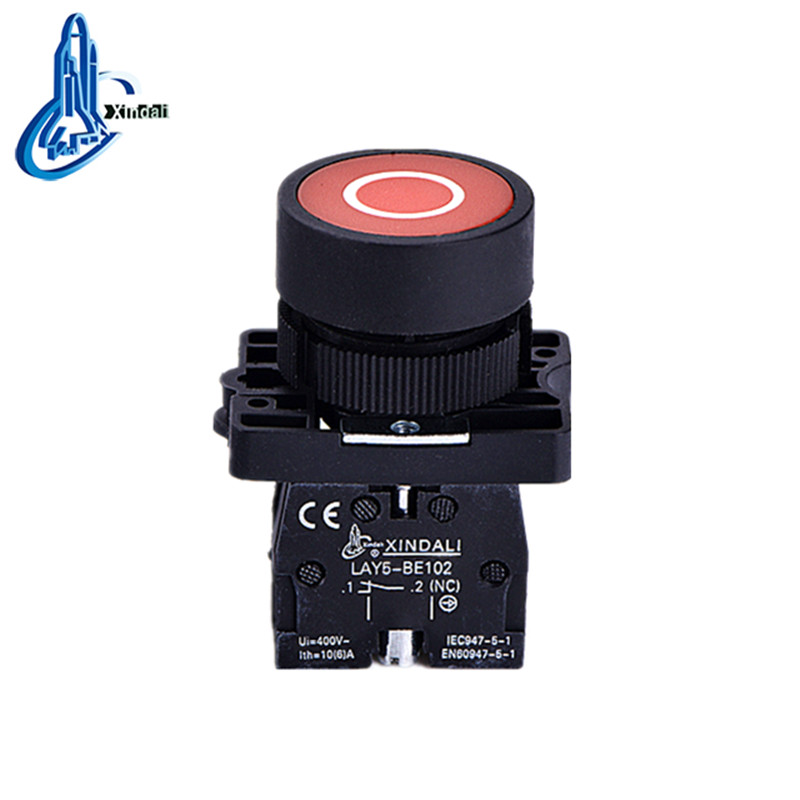

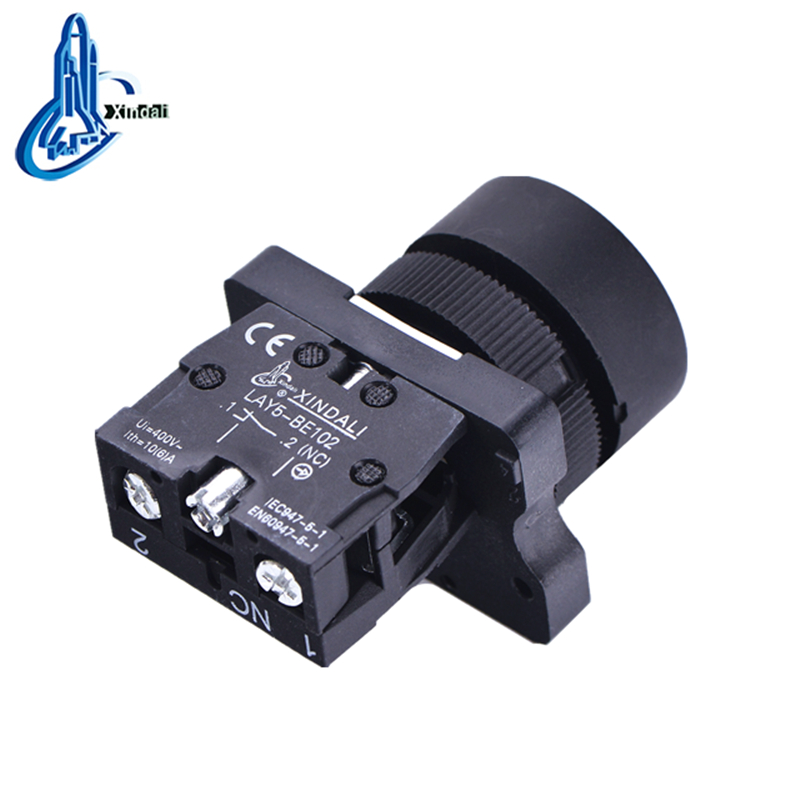

Ring Symbol Electrical Button Ignition Switch
This electrical button ignition switch features a ring symbol. It is made from durable plastic and designed for use in various control applications.
Technical Specifications
Overview
Industrial Control Switch
This robust electrical push button switch is engineered for demanding industrial control circuits, supporting AC voltages up to 660V and DC voltages up to 400V. Featuring a durable plastic construction and a distinctive ring symbol, it provides reliable visual indication and long-lasting operation. The unit is designed for high-performance signal and interlocking applications, complying with international safety standards including IEC and CE.
Electrical Ratings
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
Performance Metrics
Mechanical Life
1,000,000 ops
Pushbutton Cycles
Electrical Life
500,000 ops
Pushbutton Cycles
Compliance & Standards
Regulatory Standards
- IEC60947-5-1
- GB/T14048.1
- Certifications
- CERoHSULISO 9001

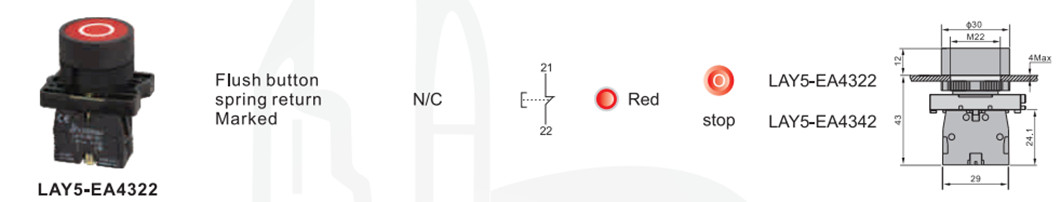

Dimensions
Physical Dimensions
| Feature | Value |
|---|---|
| Mounting Hole Diameter | 22mm |
| Button Diameter | 30mm |
| Max Panel Thickness | 4mm |
| Total Height | 43mm |
