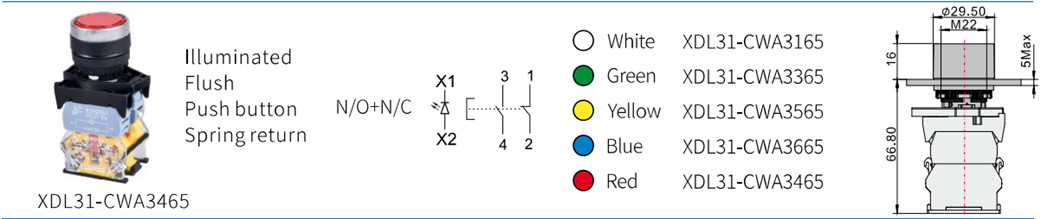

Red Light Indicator Push Button Switch
This red light indicator switch is designed for use as a signal light or push button switch. It is suitable for use in controlling circuits of AC voltage up to 660V/AC50Hz or 60Hz, and DC voltage below 400V.
Technical Specifications
Product Overview
Industrial Push Button Switch
This high-performance red light indicator push button switch is designed for reliable control and signaling in industrial circuits. Built with a combination of high-grade anti-flame plastic and durable zinc alloy, it offers exceptional resilience against environmental factors and mechanical wear. Compliant with international IEC standards, it is an ideal solution for control panels, machinery, and emergency signaling systems.
Electrical Specifications
- Rated Insulation Voltage
- 600 V
- Rated Withstanding Impulse
- 6 kV
- Contact Operation
- Slow breakingNCNO
- Short-Circuit Protection
- 10A fuse (IEC269-1 compliant)
Mechanical Specifications
Mechanical Life
3,000,000 operations
Standard Button
300,000 operations
Emergency Button
- Fastening Torque
- 0.8Nm (Max: 1.2Nm)
Environmental Ratings
IP Protection Grade
IP40IP54IP65IP66IP67IP68
Compliance
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
- CE
- ISO9001
- RoHS
- UL
- Operating Temperature
- -5°C to +55°C
- Storage Temperature
- -25°C to +70°C
