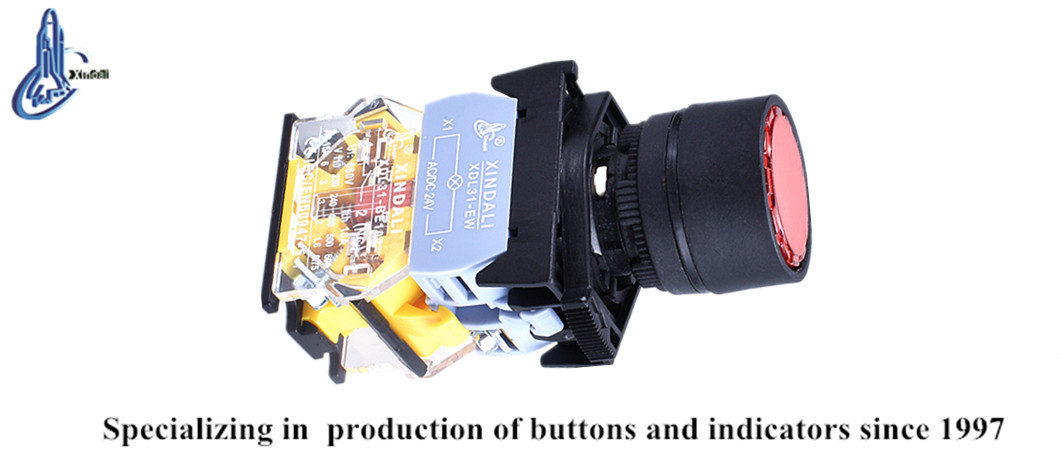

Red LED Signal Indicator Push Button Switch
This plastic push button switch features a red LED signal indicator. It is designed for controlling signals and interlocking purposes in AC voltage up to 660V and DC voltage below 400V.
Technical Specifications
Overview
Professional Signal Indicator Push Button
This LED signal indicator push button is designed for reliable control circuit management in demanding industrial environments. Featuring a durable plastic housing with high-grade anti-flam properties and silver alloy contacts, it ensures long-term operational stability and excellent anti-electrical erosion performance. The unit supports versatile AC and DC voltage configurations, making it an ideal choice for machinery interfaces, emergency signaling, and control panels.
Electrical Ratings
Performance Ratings
600 V
Rated Insulation Voltage
6 kV
Withstanding Impulse Voltage
10 A
Max Fuse Protection
- Contact Type
- N/O + N/C (Slow Breaking)
Technical Standards
- Certifications & Standards
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
Environment
Protection Grade
IP40IP54IP65IP66IP67IP68
- Operating Temp Range
- -5°C to +55°C
Mechanical
Operational Lifecycle
| Component | Cycles |
|---|---|
| Standard Push Button | 3,000,000 |
| Emergency Stop Button | 300,000 |

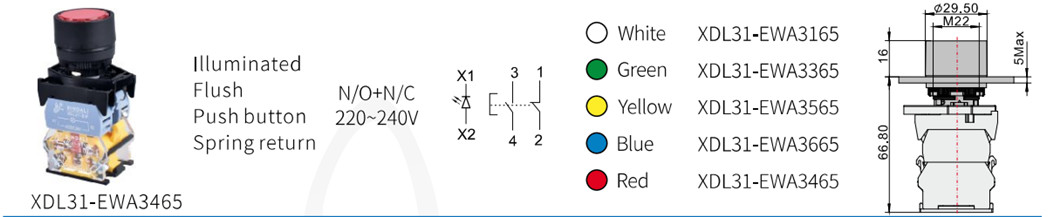

Dimensions
Installation Dimensions
- Mounting Hole: M22
- Head Diameter: 29.5mm
- Height Above Surface: 16mm
- Max Protrusion: 5mm
- Total Height: 66.8mm
