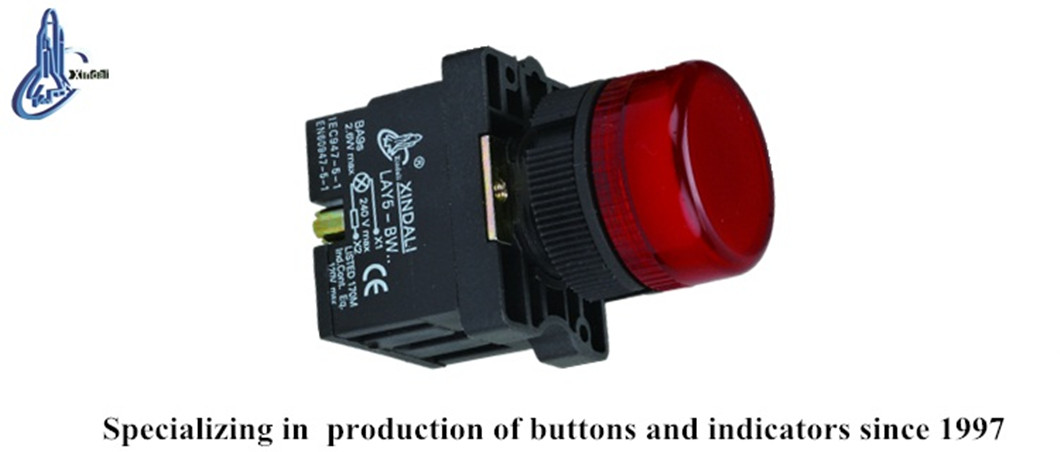

Red Flush Push Button Switch with Lamp
This red flush push button switch combines control functionality with a built-in indicator lamp. It is designed for easy installation and reliable operation in elevator control panels and industrial applications.
Technical Specifications
Product Overview
Professional Control Interface

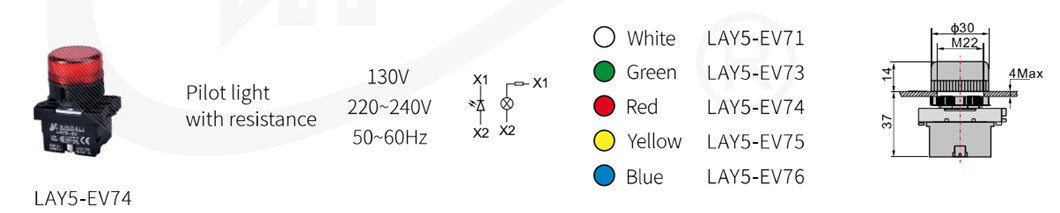

The LAY5-EV74 is a red flush push button switch with an integrated lamp, designed for elevator control panels and industrial applications. It features a durable construction using zinc alloy and high-grade anti-flam plastic, ensuring reliable performance in control circuits. The unit is compliant with international safety standards including CE and IEC60947-5-1, making it a dependable choice for signaling and interlocking purposes.
Technical Specifications
- Rated Insulation Voltage
- AC 600V (50/60Hz)
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Withstand Voltage
- AC 2.5KV/min
- Lamp Brightness
- 60 cd/m2
Durability
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Certifications
- Standards & Certifications
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
