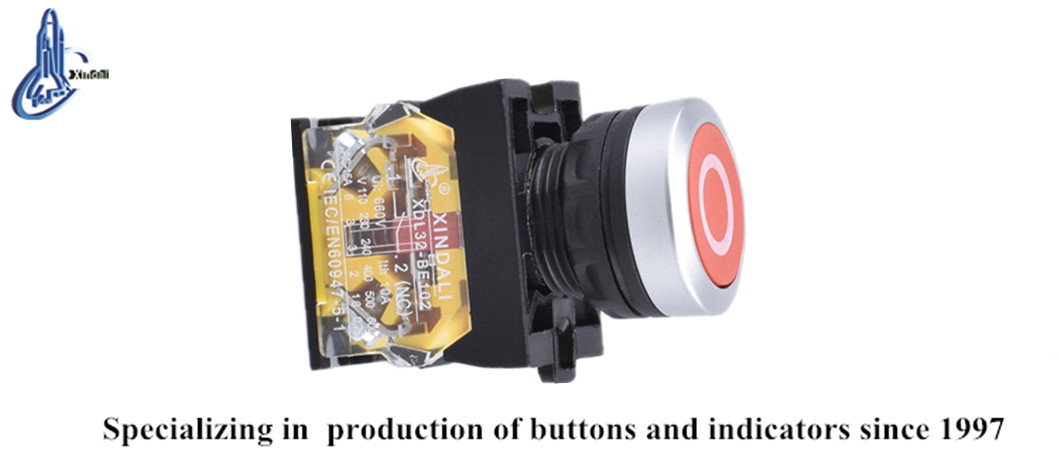

Red Flush Mount Push Button Switch
This industrial electric push button switch is constructed with a metal symbol and a red flush button. It is designed for controlling signals and interlocking purposes in circuits up to 660V.
Technical Specifications
Product Overview

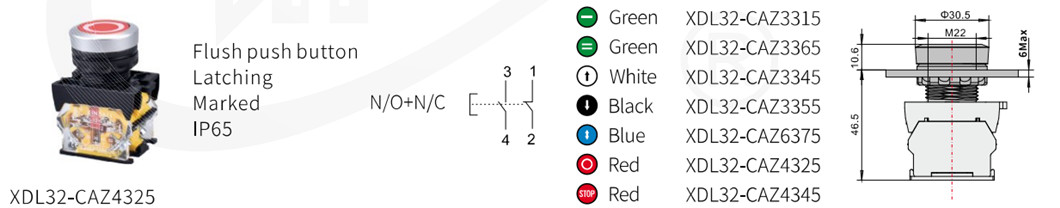

Industrial Flush Pushbutton Switch
This high-performance flush mount push button switch is designed for industrial control circuits, supporting AC voltages up to 660V and DC voltages up to 400V. Constructed from high-grade zinc alloy and anti-flammable plastic, it features silver alloy contacts to minimize electrical erosion and ensure long-term reliability. The unit is built to withstand harsh environments with a high degree of ingress protection and is compliant with international electrical standards.
Electrical Ratings
- Rated Insulation Voltage (Ui)
- 600 V
- Rated Withstanding Impulse Voltage (Uimp)
- 6 kV
- AC-15 Performance
- A600 or Ue=240V & Ie=3A
- DC-13 Performance
- Q600 or Ue=250V & Ie=3A
Environmental Conditions
- Operating Temperature
- -5°C to +55°C
- Protection Grade
- IP40IP54IP65IP66IP67IP68
- Relative Humidity
- 35% - 85% RH
Mechanical Specifications
Mechanical Life (Operations)
3,000,000 ops
Standard Button
300,000 ops
Emergency Stop
- Fastening Torque
- 0.8 Nm
Compliance
Certifications & Standards
CEISO 9001RoHSULIEC 60947-5-1
