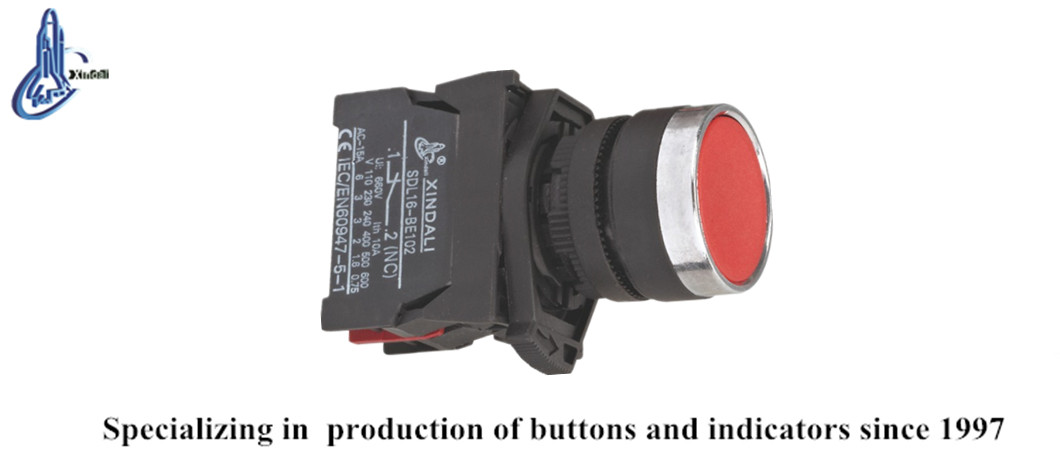

Red Flush Head Waterproof Pushbutton
This red flush head pushbutton is waterproof and designed for industrial applications. It is used for controlling signals and interlocking purposes.
Technical Specifications
Product Overview
Industrial Flush Head Pushbutton
This high-quality flush head pushbutton is engineered for reliability in demanding industrial environments. Built with a durable zinc alloy body and advanced silver alloy contacts, it provides superior resistance against electrical erosion and mechanical wear. The unit is designed for versatile signal and circuit control, ensuring seamless performance in various electrical appliances and power systems.
Technical Specifications
Electrical Ratings
660 V
Rated Insulation Voltage
10 A
Heating Current
6 kV
Withstanding Impulse Voltage
Mechanical and Electrical Life
| Component | Mechanical Ops | Electrical Ops |
|---|---|---|
| Pushbutton | 1,000,000 | 5,000,000 |
| Selector Switch | 500,000 | 250,000 |
Operating Environment
- Operating Temperature: -5°C to +55°C
- Storage Temperature: -25°C to +70°C
- Pollution Grade: 3
- Protection Rating: IP65
Compliance and Standards
- Certifications
- CEISO 9001ROHSULIEC60947-5-1
