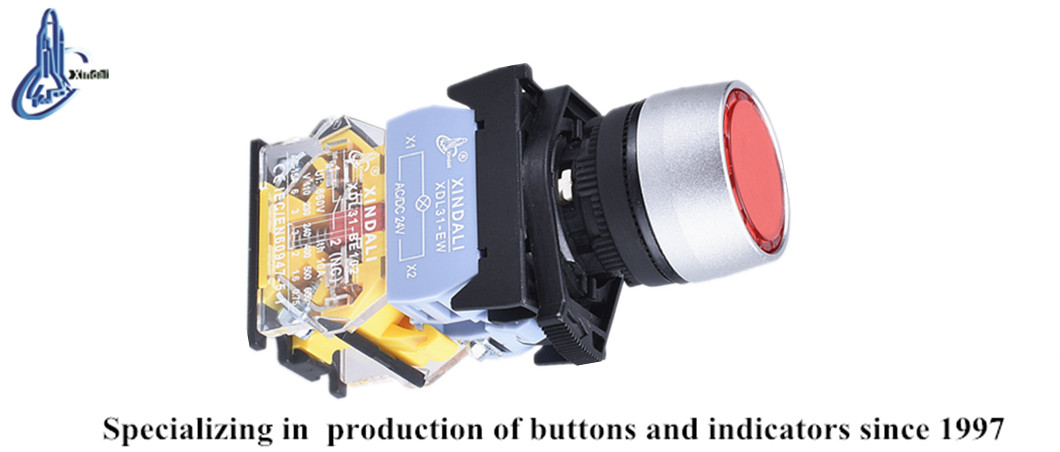

Red Flush Head Signal Indicator Light Push Button Switch
This push button switch features a red flush head and is designed for controlling circuits. It is used for controlling signal and interlocking purposes.
Technical Specifications
Product Overview
Industrial Signal Indicator Push Button
This red flush head push button switch is engineered for high-performance industrial control and signaling applications. It features a robust design utilizing zinc alloy and high-grade anti-flam plastics, ensuring durability and resistance to environmental stress. The switch incorporates specialized silver alloy contacts designed to minimize electrical erosion, providing reliable operation in demanding circuit control environments.
Technical Specifications
Operating Voltage
- AC up to 660V (50/60Hz)
- DC below 400V
Protection Grade
IP40IP54IP65IP66IP67IP68
Mechanical Life
3,000,000 operations
Standard Button
300,000 operations
Emergency Button
- Rated Insulation Voltage
- 600 V
Environmental Ratings
- Operating Temperature
- -5°C to +55°C
- Storage Temperature
- -25°C to +70°C
- Relative Humidity
- 35-85% RH
- Pollution Grade
- 3
Standards and Compliance
Standards Conformance
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
- IEC 68-2-6 (Vibration)
- IEC 68-2-27 (Impact)
- Certifications
- CEISO 9001RoHSUL

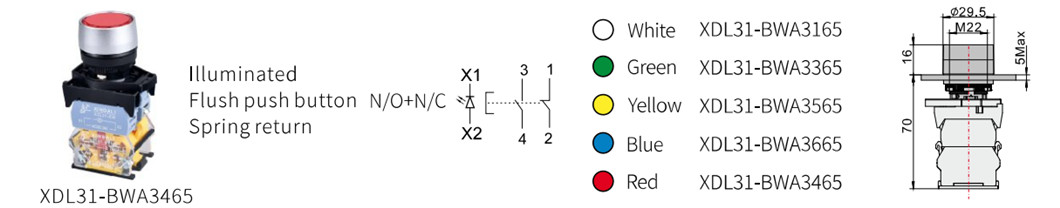

Installation and Mounting
- Mounting Diameter
- 22 mm
- Fastening Torque
- 0.8Nm (Max: 1.2Nm)
