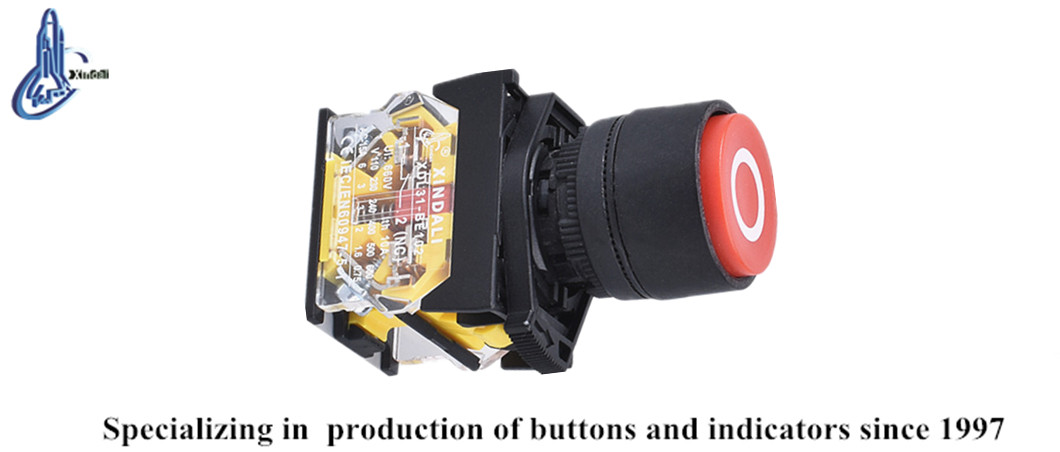

Red Electric Push Button Switch with Spring Return
This electric push button switch features a spring return and a red convex button with a white symbol. It is suitable for use in control panels, machinery, and other electrical equipment.
Technical Specifications
Product Overview
Robust Industrial Push Button
This convex push button switch with spring return is engineered for high-performance control circuit applications. Constructed with durable zinc alloy and high-grade anti-flam plastic, it features silver alloy contacts to minimize electrical erosion. It is fully certified for global use, meeting strict electrical and safety standards for industrial control panels.
Electrical Ratings
- Thermal Current
- 10 A
- Rated Insulation Voltage
- 660 V
- Contact Configuration
- NONC

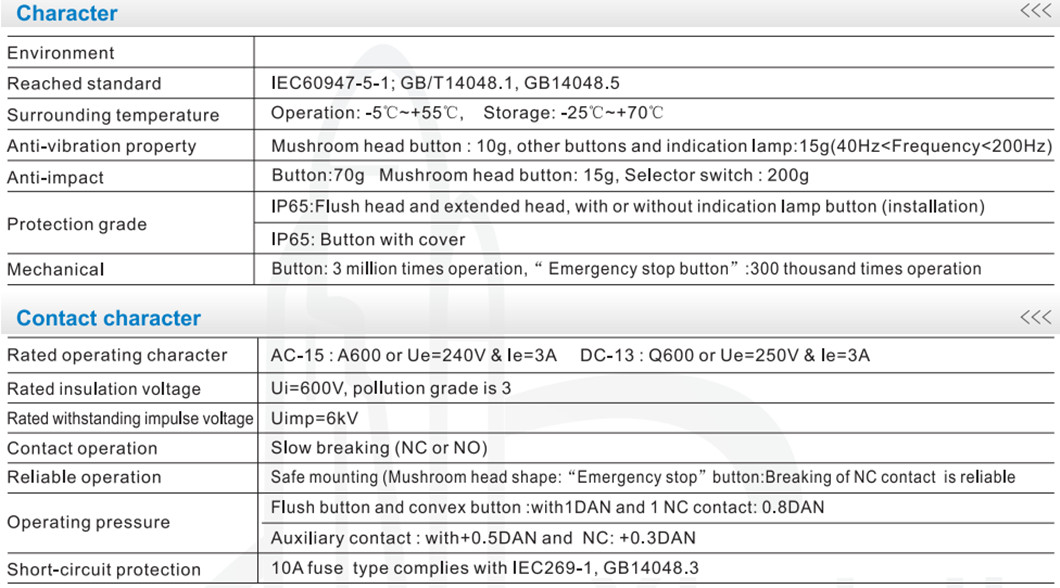

Environmental Specifications
Protection Rating
IP40IP54IP65IP66IP67IP68
- Operating Temperature Range
- -5°C to +55°C
- Pollution Grade
- 3
Mechanical Specifications
Mechanical Durability
3,000,000 Cycles
Standard Push Button
300,000 Cycles
Emergency Stop Button

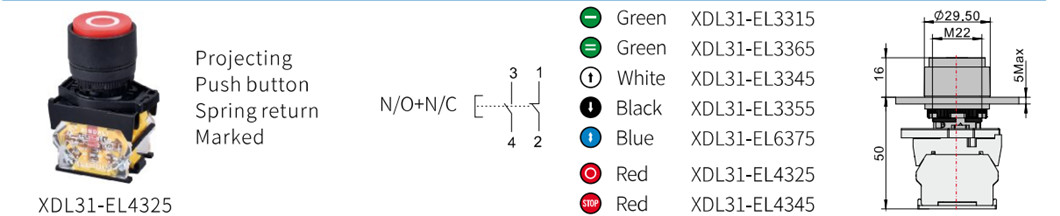

- Mounting Diameter
- M22
Compliance and Standards
Compliance Standards
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
- Industry Certifications
- CEISO 9001RoHSUL
