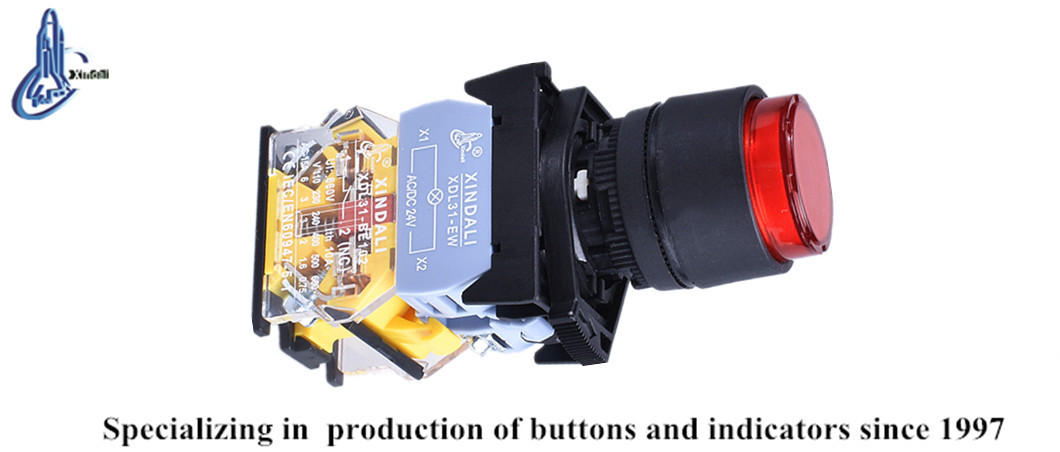

Red Convex Head Pushbutton Light Switch
This electrical pushbutton light switch features a red convex head. Constructed from durable plastic, this switch is designed for reliable performance in various industrial and commercial applications.

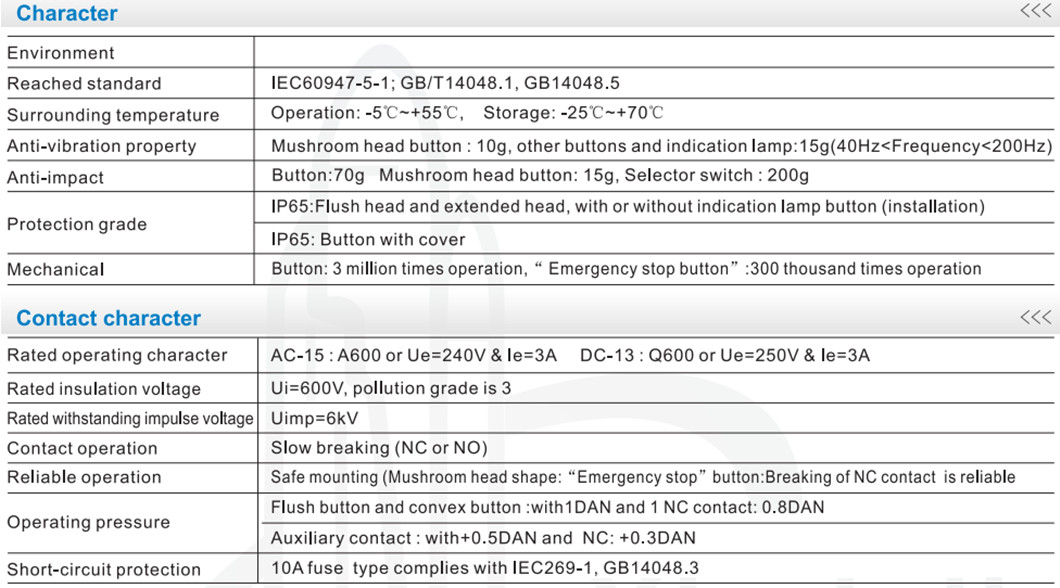

Technical Specifications
Product Overview
Industrial Convex Head Pushbutton

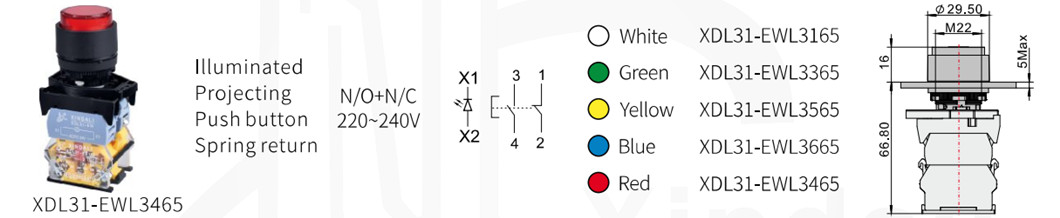

The XDL31-EWL3465 is a robust electrical pushbutton switch featuring a vibrant red convex head for high visibility. Designed for industrial control circuits, it operates reliably in AC and DC environments and features a spring-return mechanism for intuitive use. Its construction utilizes high-grade anti-flam plastic and specialized silver alloy contacts to ensure long-term durability and resistance to electrical erosion.
Technical Specifications
Operating Voltage
660 V
AC Voltage Max
400 V
DC Voltage Max
- Mechanical Life
- 3,000,000 operations
- Mounting Diameter
- 22 mm
Environmental Ratings
Protection Grade
IP40IP54IP65IP66IP67IP68
- Operating Temperature Range
- -5°C to +55°C
Compliance & Quality
Conforming Standards
- IEC 60947-5-1
- GB/T 14048.1
- GB 14048.5
- Certifications
- CEISO 9001RoHSULIEC 60947-5-1
