Pilot Light Switch
This pilot light switch is designed for use in industrial control panels and machinery. It provides clear visual indication of equipment status with its bright illumination.
Technical Specifications
Overview
Industrial Pilot Light Switch

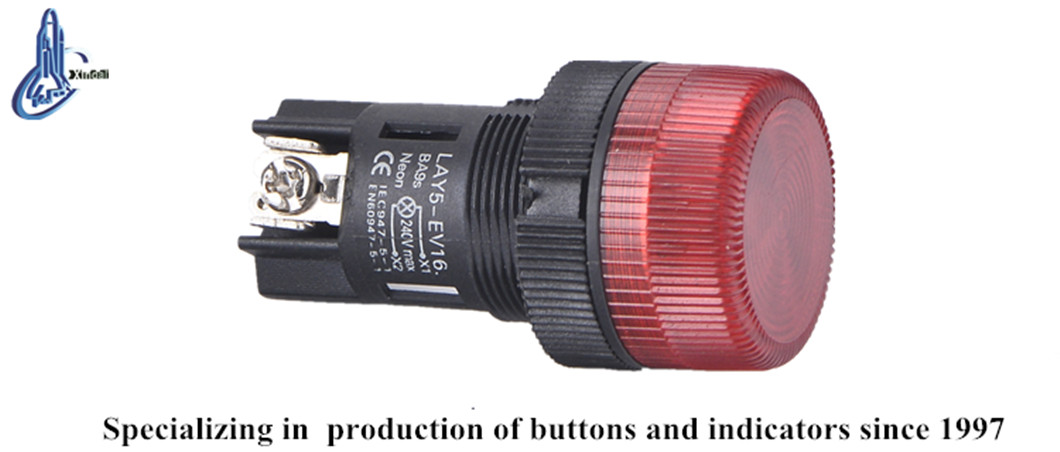

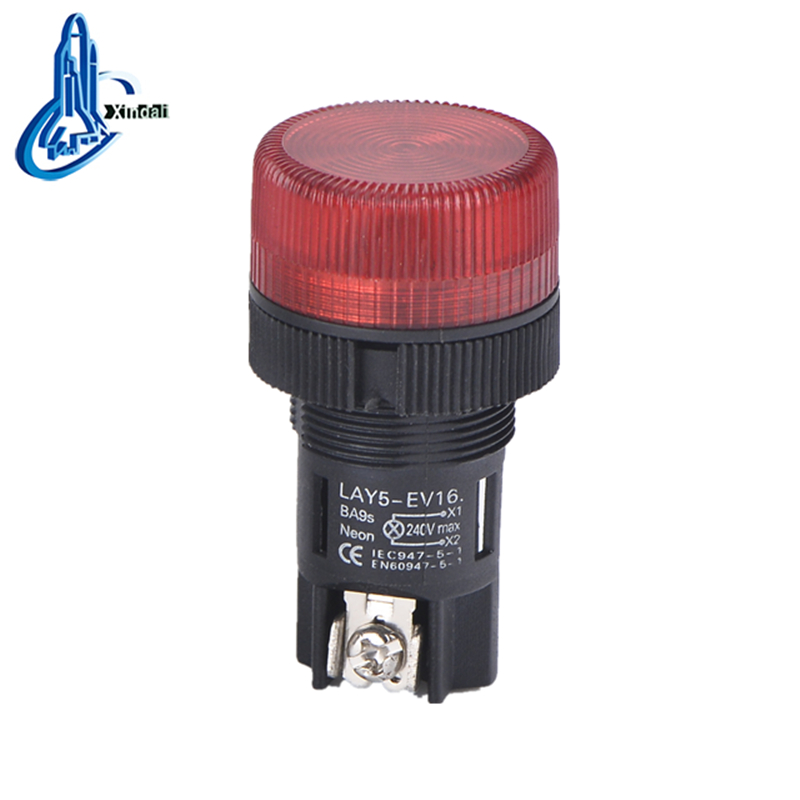

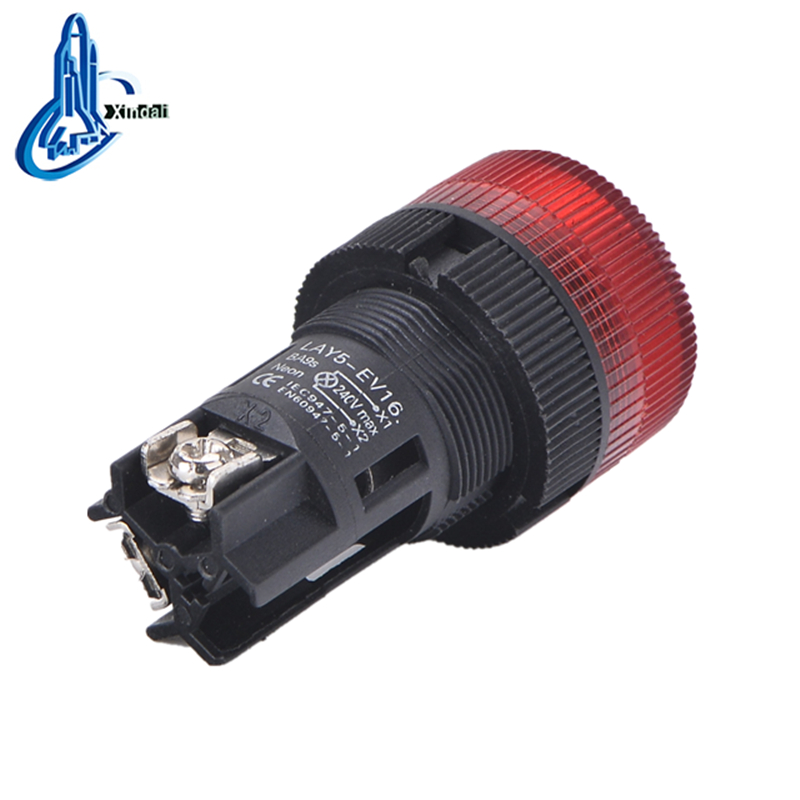

The LAY5-EV444 is a robust pilot light switch designed for industrial control panels and signaling applications. Engineered with a durable plastic housing and a high-grade contact system, it ensures reliable performance in demanding environments. This series is fully compliant with international standards, making it an ideal choice for machinery status indication, warning signals, and emergency control circuits.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
- Voltage Wave Tolerance
- ±20%
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
500,000 cycles
Pushbutton
250,000 cycles
Selector Switch
- Continuous Working Life
- 100000 h
Certifications & Compliance
- Certifications
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1

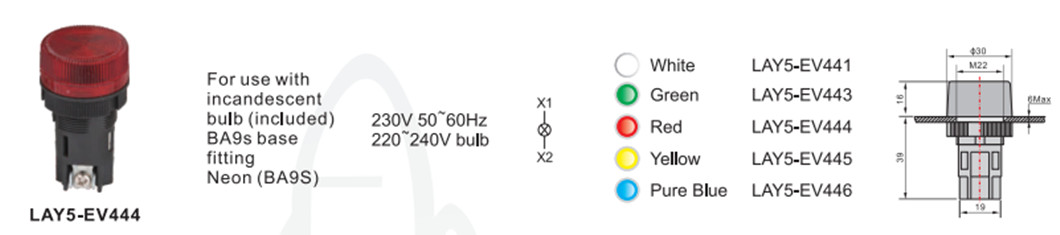

Design & Dimensions
Key Dimensions
| Parameter | Value |
|---|---|
| Diameter | Ø30mm / M22 |
| Height | 16mm |
| Total Length | 39mm |
| Base Width | 19mm |
| Max Panel Thickness | 6mm |
Available Colors
White (EV441)Green (EV443)Red (EV444)Yellow (EV445)Blue (EV446)
