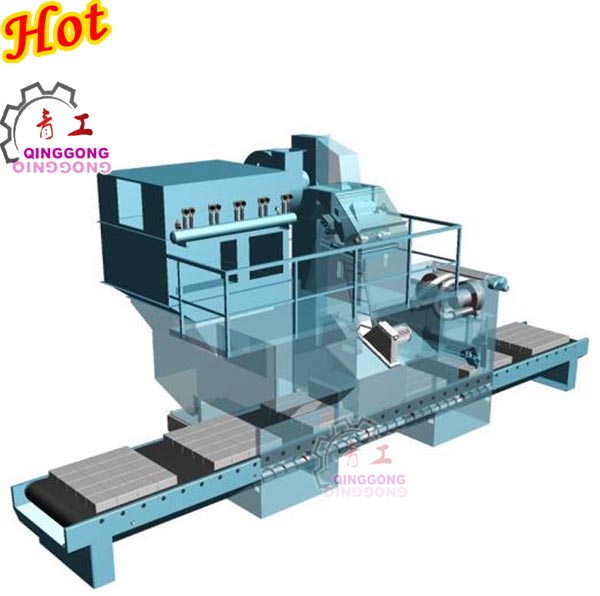

Paver Block Surface Blasting Machine
This machine is designed for surface treatment of paver blocks and similar construction materials. It utilizes a high-velocity stream of abrasive media to remove surface contaminants, scale, and imperfections, resulting in a clean and uniform finish.
Technical Specifications
Product Overview
Surface Treatment Excellence
This surface blasting machine is designed for the high-quality treatment of concrete stones, plates, and kerbstones, enhancing their aesthetic appeal by revealing natural textures. Featuring flexible design and precise control, the system ensures uniform blast patterns on both horizontal and vertical surfaces, suitable for delicate materials. With integrated modern control systems and adjustable conveyor speeds, this machine offers efficient, consistent performance for various production line requirements.
Technical Specifications
Model Comparison
| Specification | QGSC-600 | QGSC-800 | QGSC-1000 |
|---|---|---|---|
| Effective Cleaning (W*H mm) | 600*200 | 800*200 | 1,000*200 |
| Roller Speed (m/min) | 0.5~6 | 0.5~6 | 0.5~6 |
| Blasting Wheel Power (kW) | 2*11 | 2*11 | 2*11 |
| Dust Collector Ventilation (m³/h) | 7,000 | 10,000 | 10,000 |
| Total Power (kW) | 43.4 | 46.9 | 47.7 |
Operational Features
Key Capabilities
- Adjustable blast wheels for uniform surface results
- Electro-pneumatic dosage regulation
- Stepless speed control
- Integrated blow-off station for abrasive removal
- Compatible with indexing and continuous operations
- Hardened tool steel wear parts for extended service life
Recommended Abrasive
- Control System
- Modern interface with touch panel operation
