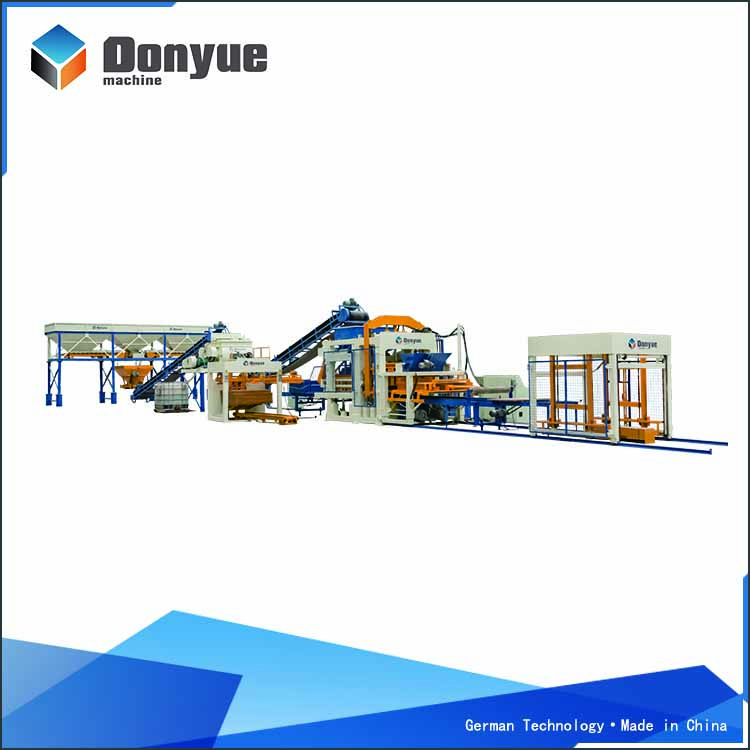

Concrete Block Making Machine
This machine is designed for efficient production of concrete blocks, pavers, and bricks. It integrates material mixing, conveying, molding, and stacking processes for large-scale production.
Technical Specifications
Overview
High-Efficiency Concrete Block Production
This industrial-grade block making line is designed to support large, medium, and small-scale operations with flexible automation levels. The system integrates a comprehensive workflow including material feeding, batching, mixing, conveying, and automated stacking. Utilizing advanced hydraulic pressing and PLC control, the machine ensures high precision and consistent output for various concrete block shapes and sizes.
Technical Specifications
Vibration Force
130 kn
Max Vibration Force
- Overall Dimensions
- 3800 x 2500 x 3550 mm
- Block Making Cycle
- 15 s
- Host Machine Power
- 56.2 KW
- Host Machine Weight
- 13.5 T
- Pallet Dimensions
- 1400 x 900 x 35 mm
Production Capacity
Production Output by Block Type
| Block Size (mm) | Pcs/Mould | Pcs/Hour | Pcs/8 Hours |
|---|---|---|---|
| 200x100x60 | 42 | 7560 | 60480 |
| 240x115x53 | 60 | 10800-14400 | 86400-115200 |
| 400x200x200 | 12 | 2160-2880 | 17280-23040 |
| 200x163x60 | 28 | 4320 | 34560 |
System Features
- Automation Capabilities
- Full Automatic LinePLC ControlHydraulic PressingAutomatic StackingMaterial BatchingMaterial Mixing
