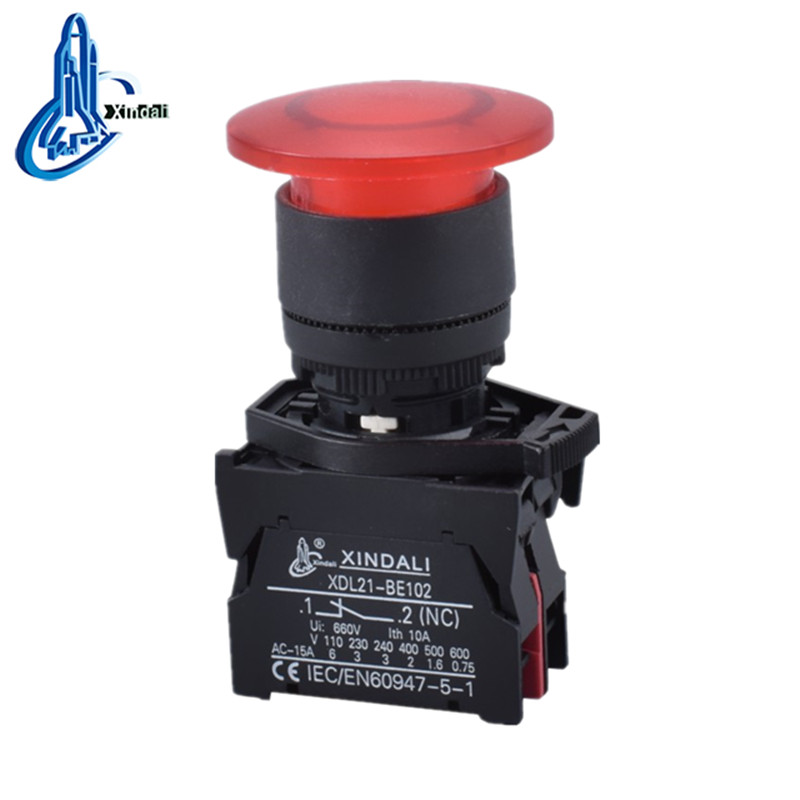

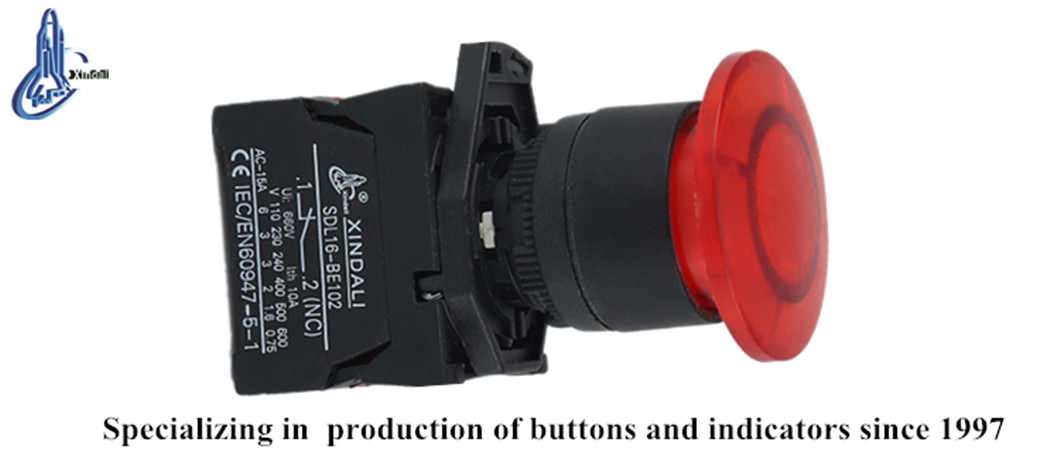

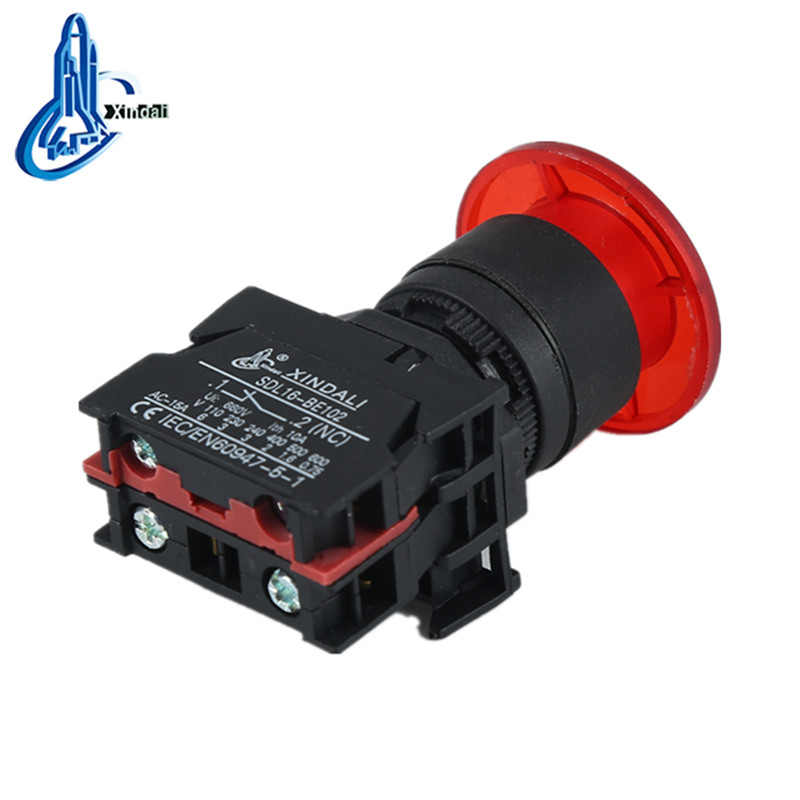

Mushroom Indicator Pushbutton Waterproof Switch
This mushroom indicator pushbutton switch is designed for waterproof applications. It features a robust construction suitable for various industrial control systems, providing clear visual feedback to enhance operational safety and efficiency.
Technical Specifications
Overview
Industrial Mushroom Pushbutton Switch
This high-performance mushroom indicator pushbutton switch is engineered for demanding industrial control systems, including distribution cabinets and power stations. Featuring a robust waterproof construction, it utilizes high-grade anti-flame materials and silver alloy contacts for superior electrical erosion resistance. The unit supports versatile AC and DC circuit configurations, ensuring reliable signal and interlocking performance in diverse environments.
Technical Parameters
Electrical Ratings
660 V
Rated Insulation Voltage
10 A
Conventional Heating Current
Basic Technical Specifications
| Parameter | Value |
|---|---|
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Power Frequency Withstand Voltage | AC 2.5KV/min |
| Brightness | 60cd/m2 |
| Voltage Wave Tolerance | ±20% |
Certifications
- Compliance and Standards
- CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1
Mechanical Performance
Operational Life
- Pushbutton mechanical life: 1,000,000 operations
- Selector switch mechanical life: 500,000 operations
- Pushbutton electrical life: 5,000,000 operations
- Selector switch electrical life: 250,000 operations
- Continuous working life: 100,000 hours
