Mushroom Head Spring Return Push Button Switch
This push button switch features a red mushroom head and spring return mechanism. It is constructed from durable plastic and has an IP67 rating for protection against dust and water.
Technical Specifications
Product Overview
Industrial Mushroom Head Push Button

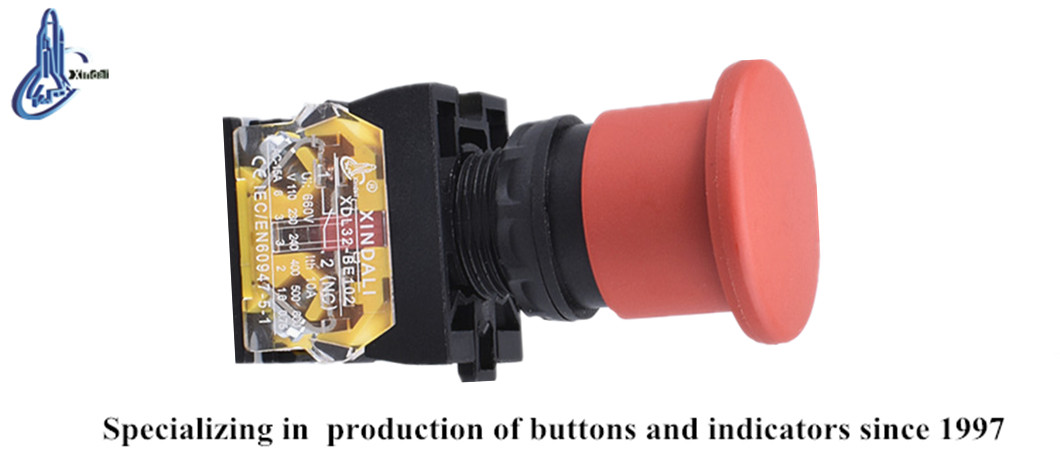

This XDL32-EC45 series push button switch features a prominent red mushroom-shaped actuator designed for immediate and reliable control. Built for demanding industrial environments, the switch is constructed from high-grade anti-flam plastic and offers superior protection against dust and water. The spring-return mechanism ensures safe, momentary operation suitable for control circuits up to 660V.
Electrical Ratings
- Operational Voltage
- Up to 660V ACBelow 400V DC
- Rated Insulation Voltage
- 600 V
- Withstanding Impulse Voltage
- 6 kV
Environment & Durability
Protection Grade
IP65IP66IP67IP68
Mechanical Life
3,000,000 Cycles
Standard Button
300,000 Cycles
Emergency Stop
- Operating Temperature
- -5°C to +55°C
Technical Specifications
Dimensions Table
| Attribute | Value |
|---|---|
| Head Diameter | 40mm |
| Mounting Thread | M22 |
| Max Panel Thickness | 6mm |
| Total Length | 46.50mm |
- Standards Conformance
- IEC60947-5-1GB/T14048.1GB14048.5CEISO9001RoHSUL
