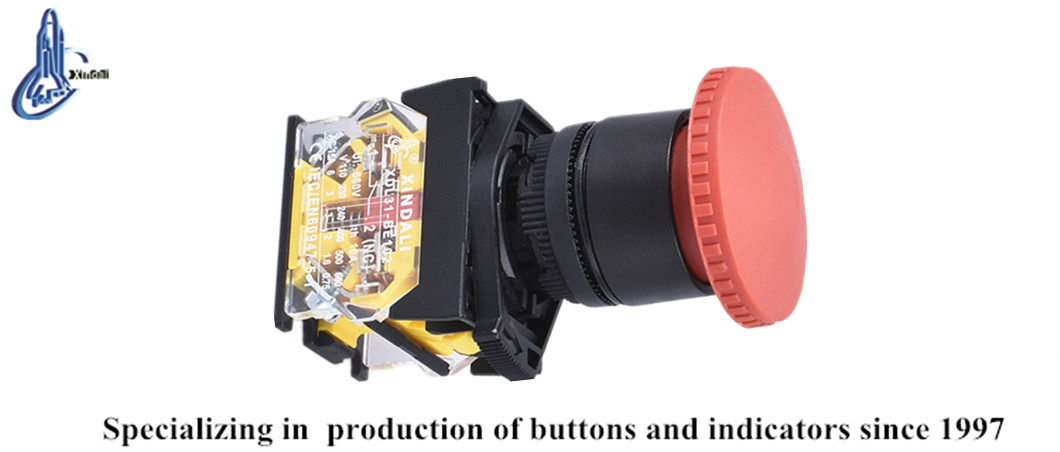

Mushroom Head Push-Pull Button Switch
This push-pull button switch features a red, mushroom-shaped head. It is designed for use in electrical power applications as a control or emergency stop mechanism.
Technical Specifications
Overview
Robust Mushroom Head Control Switch
The XDL31-EC45 is a professional-grade push-pull button switch featuring a highly visible red mushroom-shaped head. Engineered for reliability in demanding industrial environments, this switch is ideal for emergency stop mechanisms and critical control applications. Built with high-grade anti-flam plastics and durable silver alloy contacts, it ensures long-term operational stability and electrical efficiency.
- Certifications
- CEISO 9001RoHSULIEC 60947-5-1
Electrical Specifications
Voltage Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
6 kV
Impulse Withstand
Insulation and Protection
- Insulation Voltage (Ui): 600V
- Pollution Grade: 3
- Short-circuit Protection: 10A fuse (IEC269-1)
Mechanical Performance
Mechanical Life
3,000,000 cycles
Standard Button Ops
300,000 cycles
Emergency Stop Ops

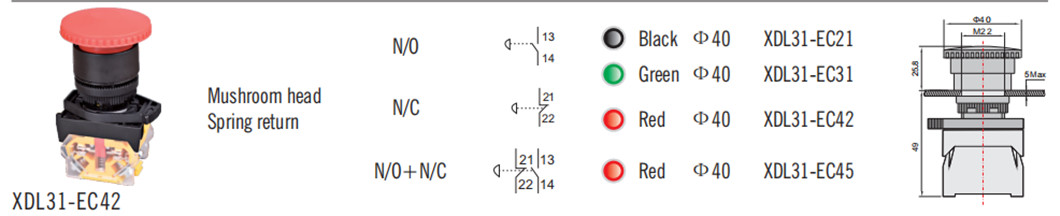

Installation Dimensions
| Dimension | Value |
|---|---|
| Mounting Thread | M22 |
| Head Diameter | 40mm |
| Max Panel Thickness | 5mm |
Environmental Conditions
Protection Grade
IP65IP66IP67IP68
- Temperature Range
- -5°C to +55°C (Operating), -25°C to +70°C (Storage)
