Mushroom Head Push-Pull Button Switch
This mushroom head push-pull button switch is designed for controlling circuits. It is constructed with high-quality materials to ensure durability and long-term performance.
Technical Specifications
Product Overview

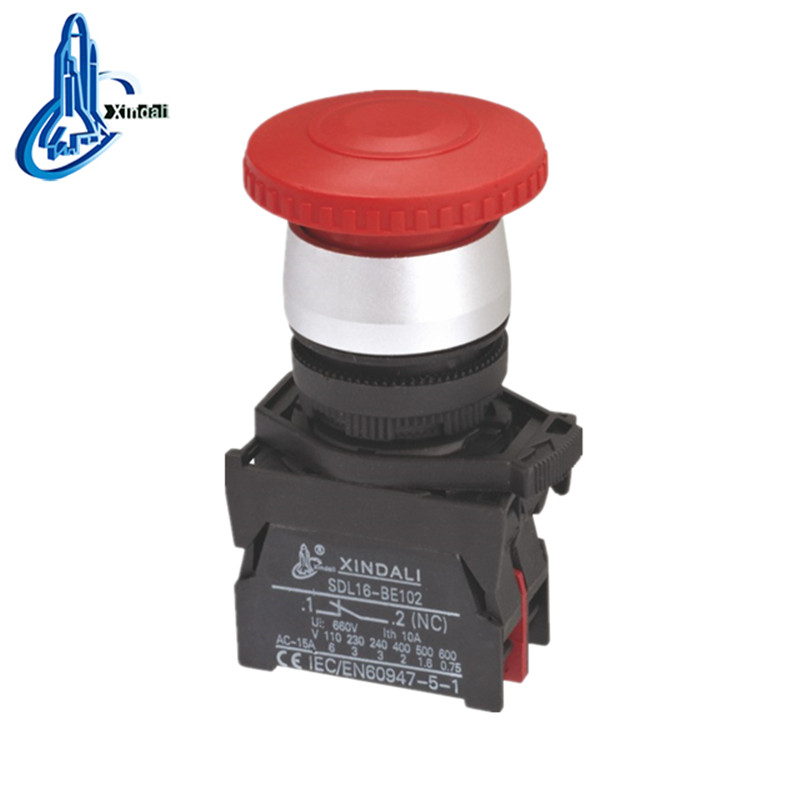

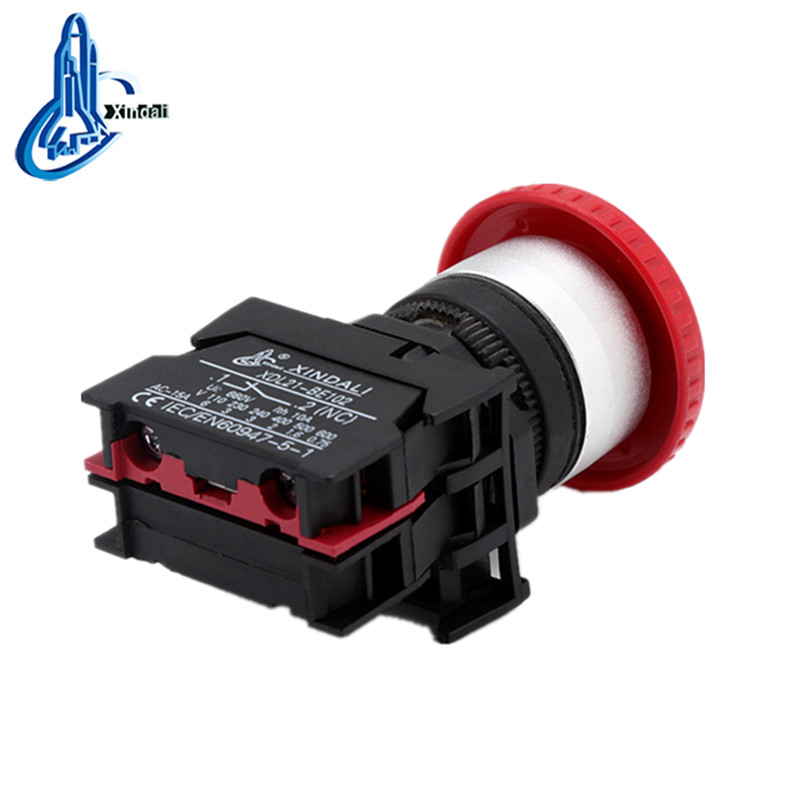

Industrial Mushroom Head Emergency Switch

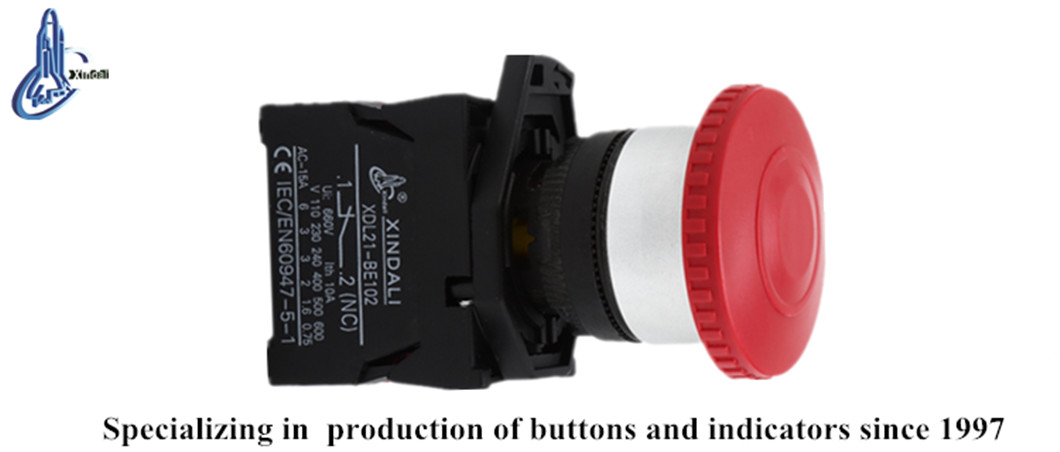

This mushroom head push-pull pushbutton switch is designed for reliable control circuit management in demanding industrial environments. Constructed with high-grade zinc alloy and flame-retardant plastics, it provides durability and high resistance to electrical erosion. The unit features a prominent red mushroom head for rapid activation, making it an ideal solution for emergency stop functions in distribution cabinets, control panels, and power stations.
Technical Ratings
Performance Highlights
660 V
Rated Insulation Voltage
10 A
Heating Current
65 IP
Protection Grade
- Operating Temperature Range
- -5°C to +55°C
- Mechanical Life (Emergency Stop)
- 300000 cycles

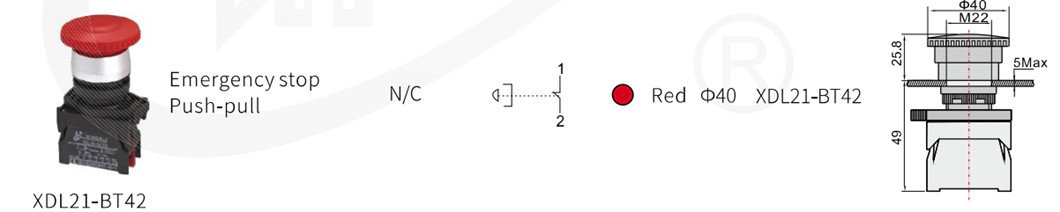

Mounting and Dimensions
Physical Dimensions
| Parameter | Value |
|---|---|
| Mounting Hole | M22 |
| Mushroom Head Diameter | 40mm |
| Max Panel Thickness | 5mm |
| Total Height | 49mm |
Compliance and Standards
- Certifications
- CEROHSISO9001ULIEC60947-5-1
