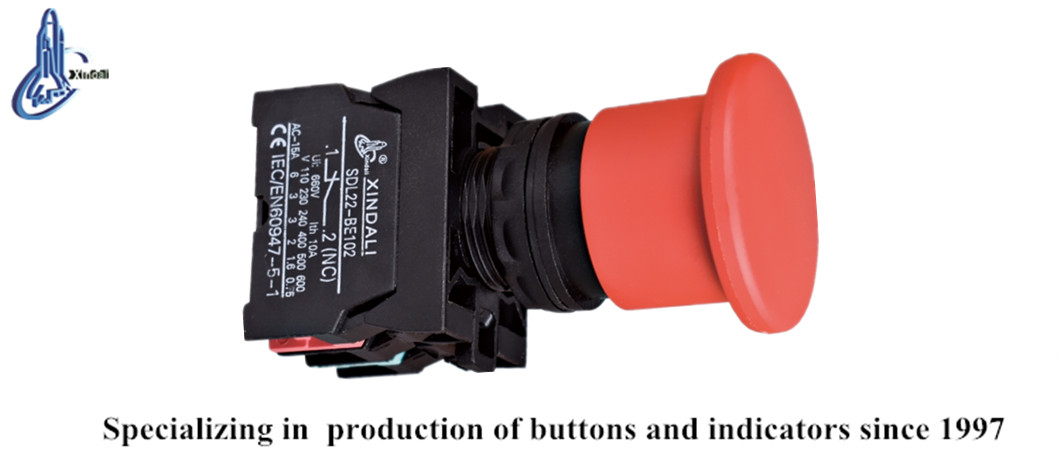

Mushroom Head Push Button Switch IP67
This mushroom head push button switch is designed for controlling circuits with AC voltage up to 660V. It is waterproof to IP67 standards and features a spring return mechanism.
Technical Specifications
Product Overview
Industrial Mushroom Head Push Button
This high-performance mushroom head push button is engineered for reliable signal control and interlocking in demanding industrial environments. Featuring a robust construction with an IP67 rating, it provides exceptional protection against water and dust ingress for outdoor or harsh-duty applications. Compliant with international IEC standards, it ensures safe and dependable performance for voltages up to 660V AC.
Technical Specifications
Performance Metrics

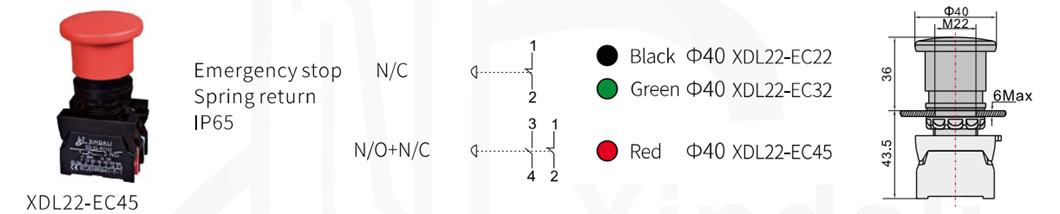

40 mm
Mushroom Head Diameter
6 mm
Max Panel Thickness
- Rated Insulation Voltage
- 660 V
- Thermal Current (Ith)
- 10 A
- Mounting Diameter
- 22 mm
- Operating Temperature
- -5°C to +55°C
- Certifications
- CEISO 9001RoHSULIEC60947-5-1
Environmental Protection
Protection Grade
IP67IP66IP65
- Pollution Grade
- 3
Mechanical Details
Mechanical Life
- Pushbutton: 300,000 cycles
- Emergency button: 30,000 cycles
- Max Fastening Torque
- 1.2 Nm
