Technical Specifications
Product Overview
Industrial Emergency Stop Solution

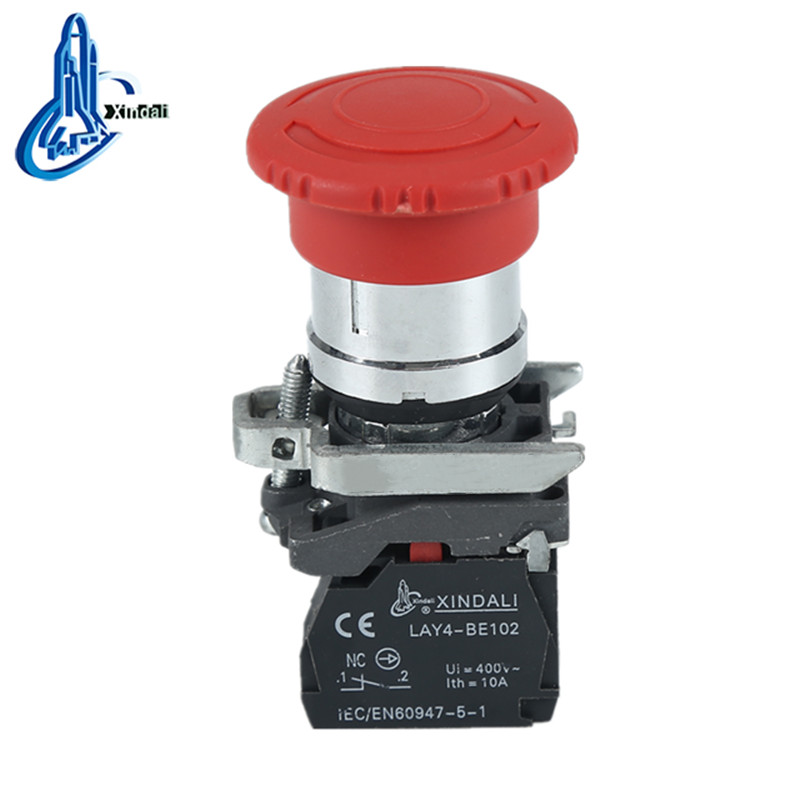

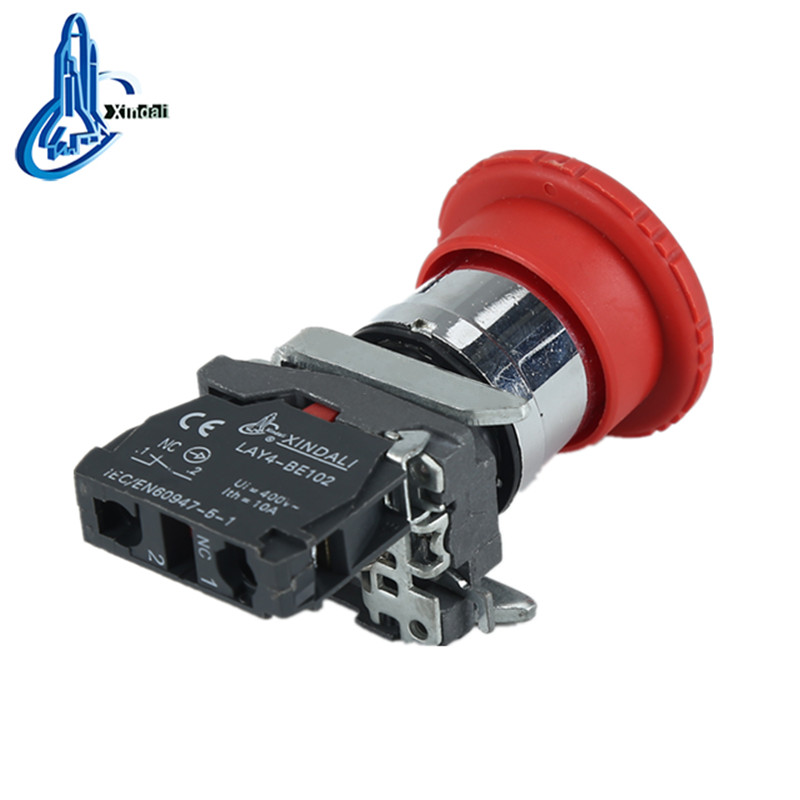

This mushroom head latching emergency stop push button is engineered for critical safety applications in industrial control circuits. Featuring a robust zinc alloy and high-grade anti-flam plastic construction, it ensures reliable performance in demanding environments. The latching mechanism requires a manual twist to release, preventing accidental restarts and providing a secure shutdown signal for machinery and power systems.
Electrical Ratings
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
Mechanical Performance
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Compliance & Standards
Compliance Standards
- GB/T14048.1
- IEC60947-5-1
- Certifications
- CEISO 9001RoHSUL
Technical Specifications
Technical Parameters
| Parameter | Value |
|---|---|
| Pf withstand voltage | AC 2.5KV/min |
| Voltage wave | ±20% |
| Brightness | 60cd/m2 |
| Continuous working life | 100,000h |
