Technical Specifications
Product Overview
Industrial Emergency Stop Solution

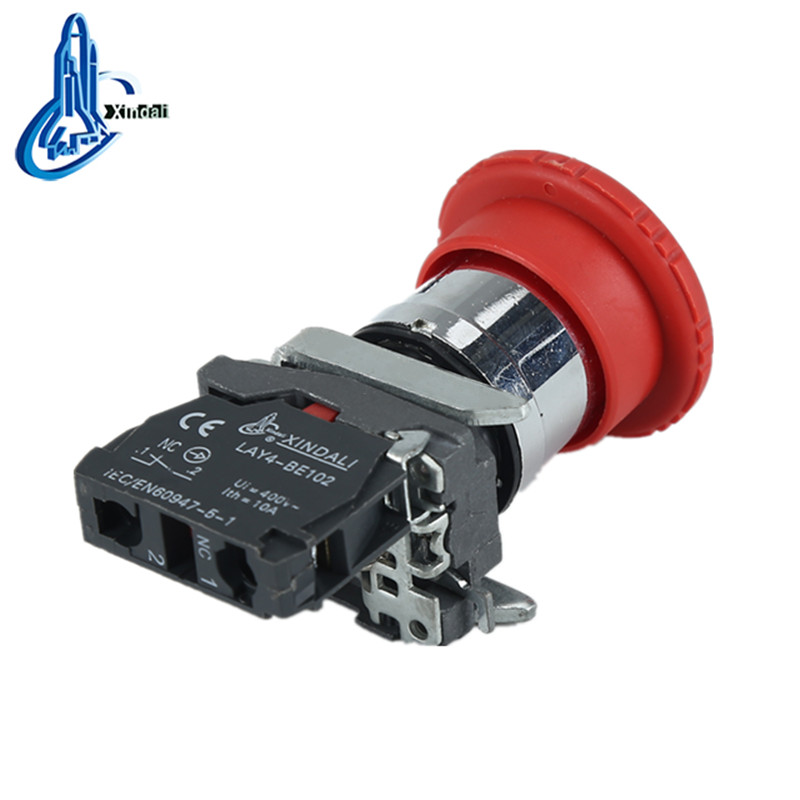

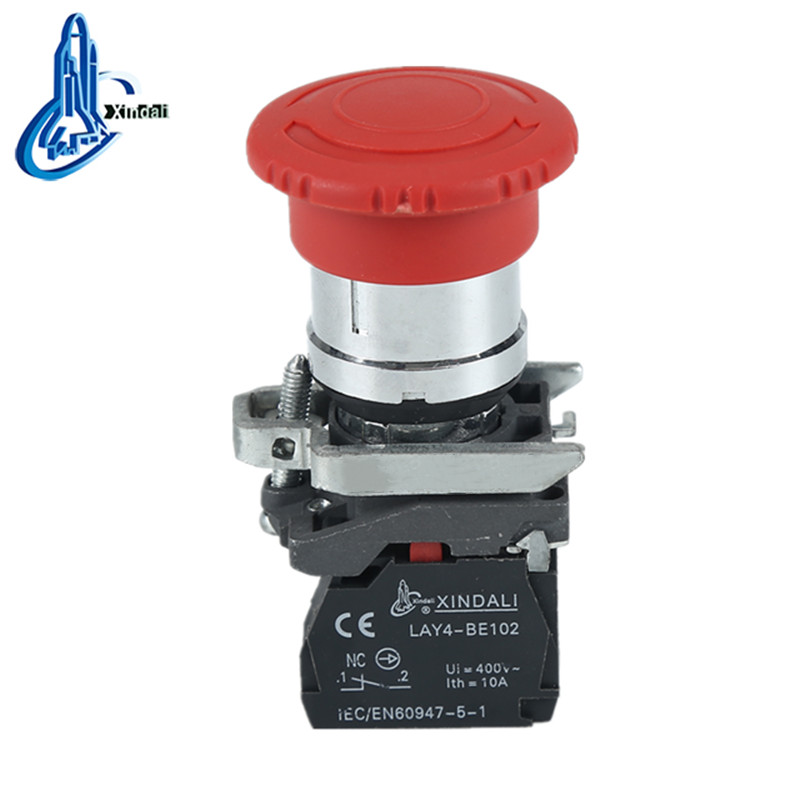

This mushroom head latching push button is engineered for critical safety and control applications in industrial environments. Featuring a robust zinc alloy and high-grade anti-flam plastic construction, it ensures reliability in demanding settings. The latching mechanism provides a secure emergency stop function that remains engaged until manually reset, making it ideal for control cabinets, power stations, and communication networks.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
- Voltage Wave Tolerance
- ±20%
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Compliance & Standards
Applicable Standards
- GB/T14048.1
- IEC60947-5-1
- Certifications
- CEISO 9001RoHSUL

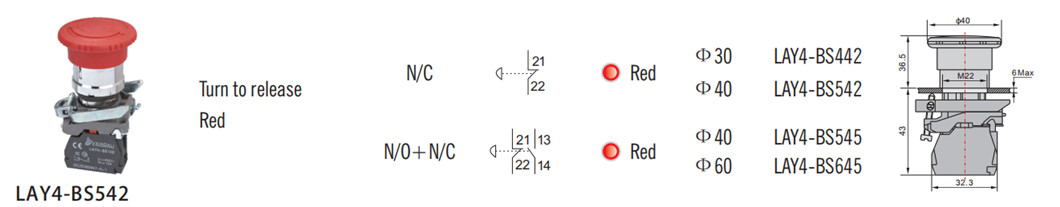

Dimensions & Mounting
Mounting Specifications
| Parameter | Value |
|---|---|
| Mounting Thread | M22 |
| Max Panel Thickness | 6mm |
| Overall Height | 43mm |
