Mushroom Head Emergency Stop Switch Push-Pull

This emergency stop switch features a mushroom-shaped red actuator. It is designed with a push-pull mechanism for reliable emergency shutdown functionality.

Request a Quote Download PDFPDF

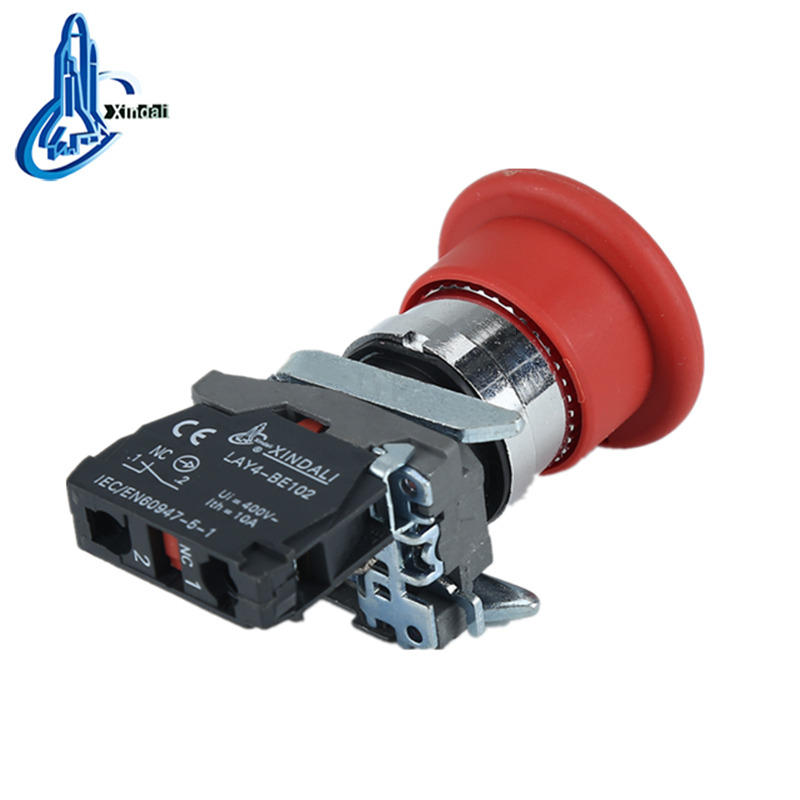

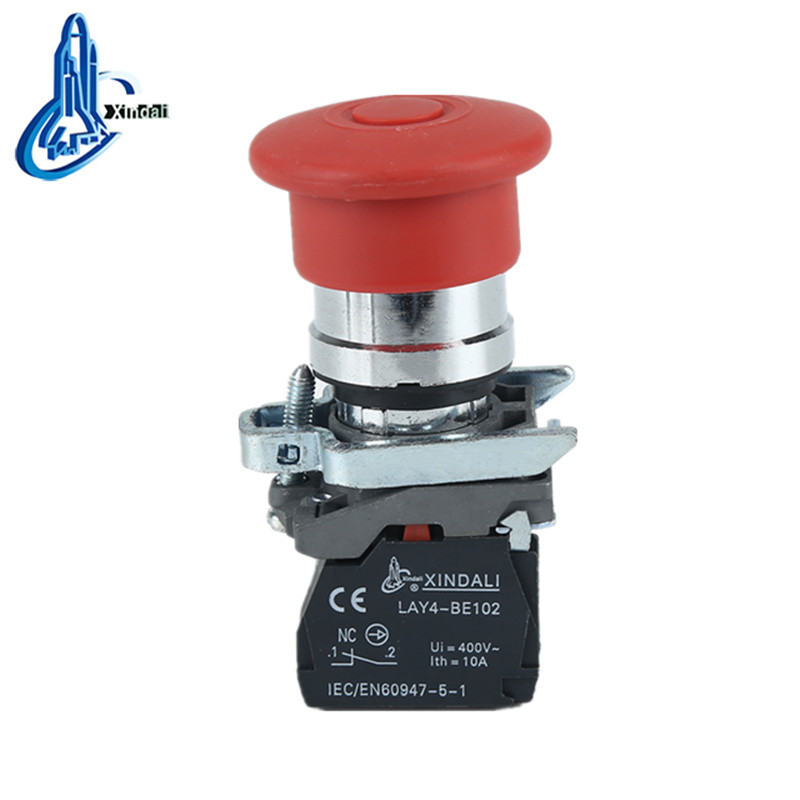

LAY4-BT42 emergency switch mushroom head push pull emergency stop switch - Image 1

Technical Specifications

Product Overview

Mushroom Head Emergency Stop Switch

This emergency stop switch features a prominent mushroom-shaped actuator designed for reliable push-pull operation in critical safety applications. Built with a zinc alloy and high-grade anti-flame plastic body, it offers durability and resistance to electrical erosion. It is ideal for industrial control panels, distribution cabinets, and machinery requiring immediate power interruption.

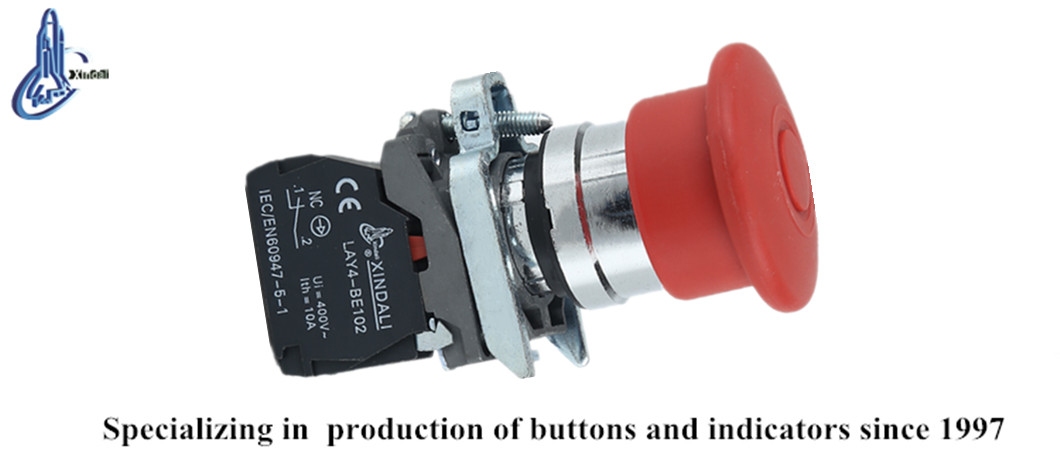

Close up of the mushroom head emergency stop switch showing standard markings — The mushroom head actuator provides high visibility and easy access for emergency shutdowns.

Electrical Specifications

Rated Insulation Voltage: 600 V
Conventional Heating Current: 10 A
Insulation Resistance: ≥50MΩ
Contact Resistance: ≤25mΩ
Withstand Voltage: AC 2.5KV/min

Mechanical Specifications

Mechanical Life: 1,000,000 operations
Electrical Life: 500,000 operations
Mounting Hole Diameter: 22 mm
Actuator Diameter: 40 mm

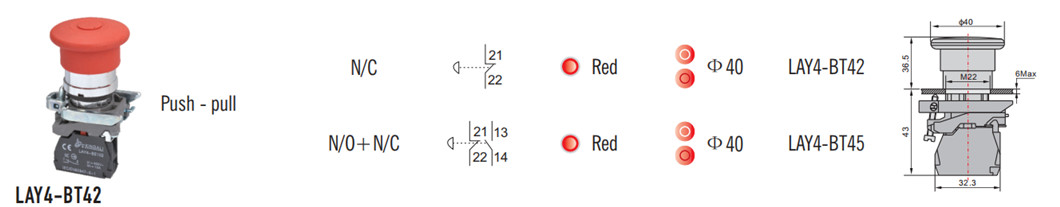

Technical diagram showing dimensions and contact configurations for the emergency stop switch — Technical dimensions and contact terminal layout for the push-pull emergency stop switch.

Certifications

Standards & Certifications: CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1

Application

Suitable Environments

Distribution boxes
Distribution cabinets
Control cabinets
Power stations
Communication networks
