Overview
Industrial Emergency Stop Solution

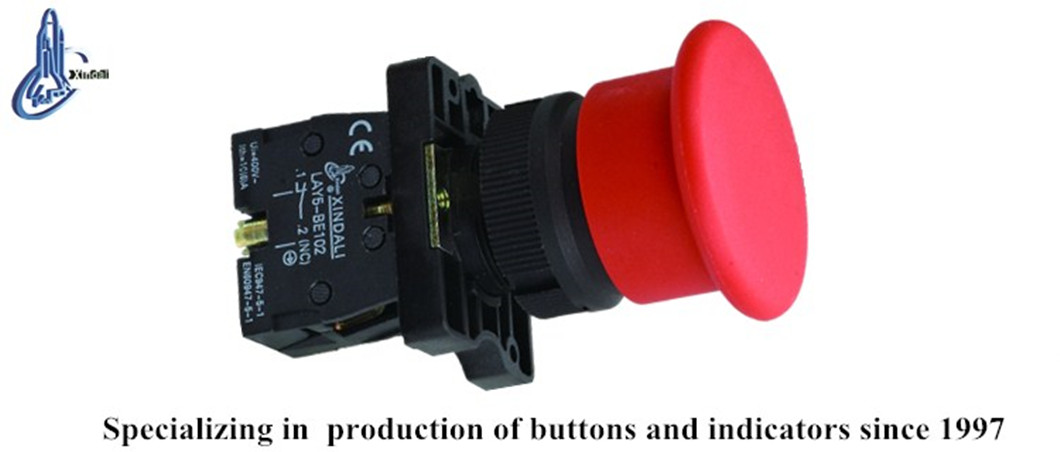

This red mushroom head push-pull emergency stop switch is engineered for reliable operation in demanding industrial environments. Designed for controlling circuits up to 660V AC or 400V DC, it provides essential safety and interlocking functionality for machinery and control panels. The unit features a robust construction using zinc alloy and high-grade anti-flam plastic, ensuring durability and compliance with international electrical standards.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Mechanical Performance
Mechanical Life Cycles
| Component Type | Cycles |
|---|---|
| Pushbutton | 1,000,000 |
| Selector Switch | 500,000 |
Electrical Life Cycles
| Component Type | Cycles |
|---|---|
| Pushbutton | 5,000,000 |
| Selector Switch | 250,000 |
Compliance & Standards
- Certifications
- CEISO 9001RoHSULGB/T14048.1IEC60947-5-1
Applications
Typical Applications
- Distribution boxes
- Distribution cabinets
- Control cabinets
- Power stations
- Communication networks
