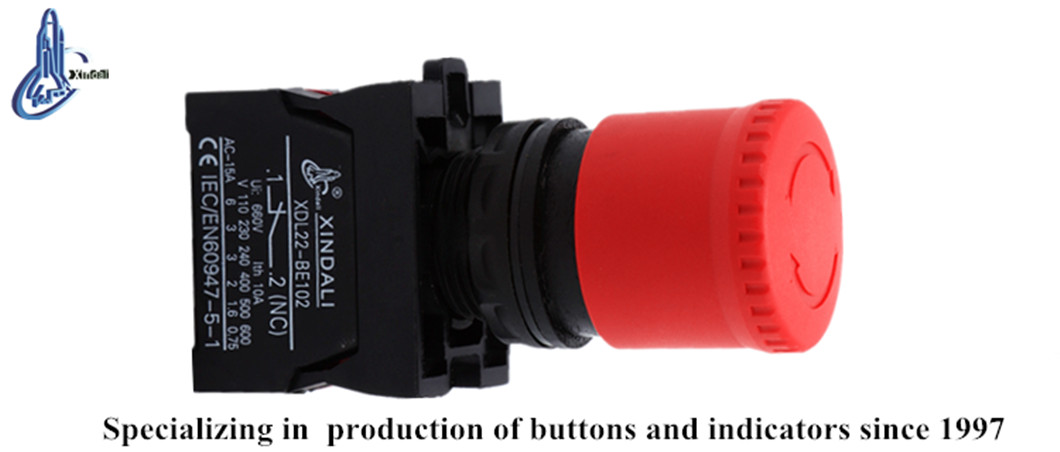

Mushroom Head Emergency Stop Pushbutton Switch
This mushroom head switch features a red plastic pushbutton for emergency stop functionality. It is designed for controlling circuits and interlocking purposes in various applications.
Technical Specifications
Overview

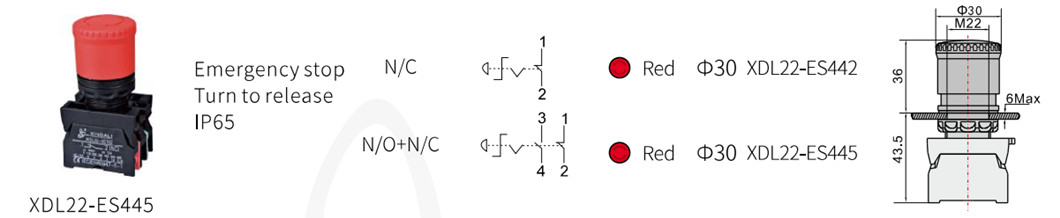

Mushroom Head Emergency Stop Switch
This industrial-grade emergency stop pushbutton is designed for critical safety applications in demanding environments. Featuring a high-visibility red mushroom head and a robust plastic construction, it provides a reliable mechanism to instantly halt machinery. The unit is engineered for durability, supporting a wide range of operational voltages and meeting rigorous international standards for safety and protection.
Electrical Ratings
Voltage Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Thermal Current
Operating Environment
- Ambient Temperature
- Operating: -5°C to +55°C; Storage: -25°C to +70°C
Technical Specifications
IP Protection Rating
IP40IP54IP65IP66IP67IP68
- Standards Compliance
- IEC 60947-5-1GB/T 14048CEISO 9001RoHSUL
Mechanical Characteristics
Mechanical Service Life
| Component | Cycles |
|---|---|
| Standard Pushbutton | 300,000 |
| Emergency Button | 30,000 |
- Fastening Torque
- 0.8 Nm
