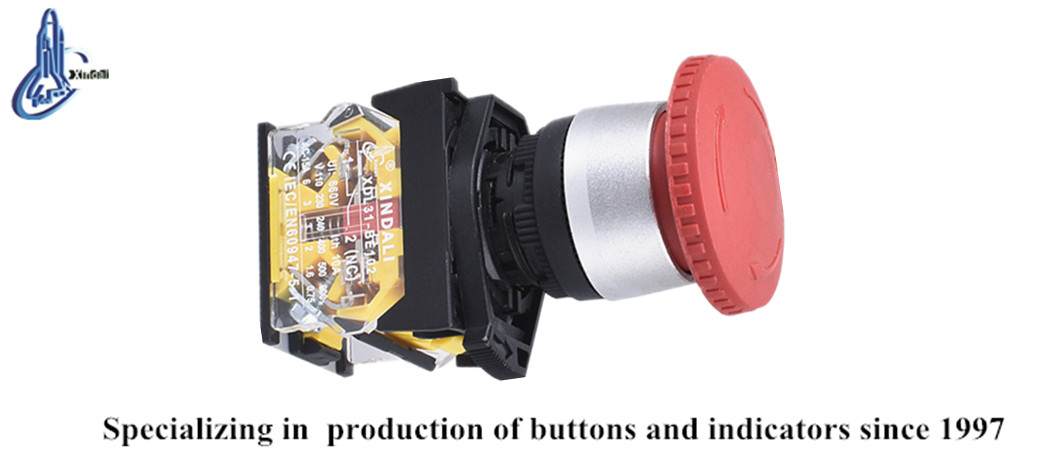

Mushroom Head Emergency Stop Pushbutton
This emergency stop pushbutton is designed for industrial applications. It features a red mushroom head for easy activation during emergencies to quickly shut down machinery.

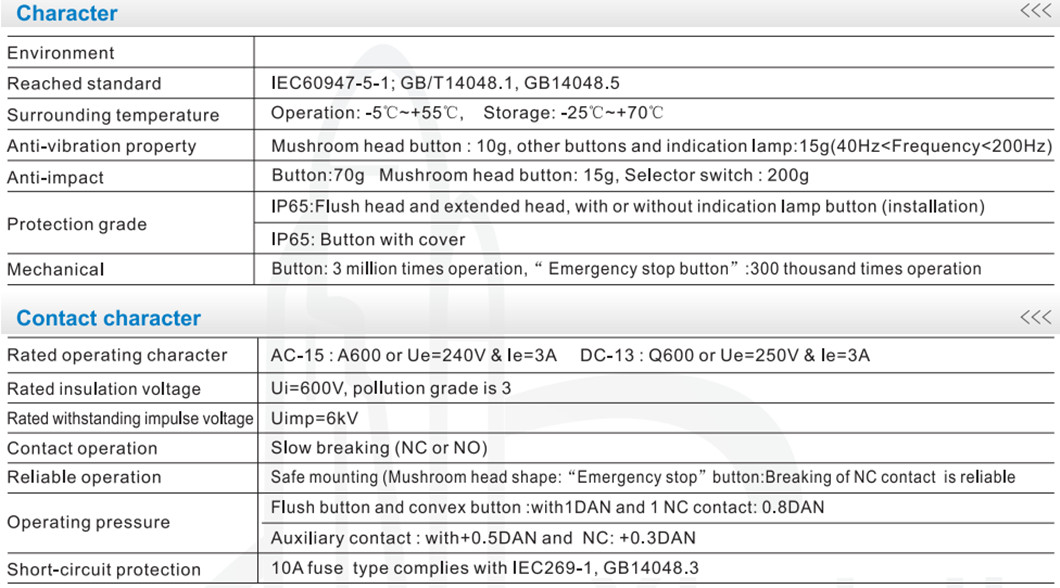

Technical Specifications
Product Overview
Industrial Emergency Stop Solution
This mushroom-head emergency stop pushbutton is engineered for critical safety applications in industrial environments. Designed for rapid power disconnection, it features a robust turn-to-release mechanism and high-grade anti-flam construction for reliable performance. Fully compliant with international safety standards, this unit ensures maximum protection for machinery and personnel.
Key Features
- Certifications
- CEISO9001RoHSULIEC60947-5-1
Electrical Specifications
Featured Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Thermal Current

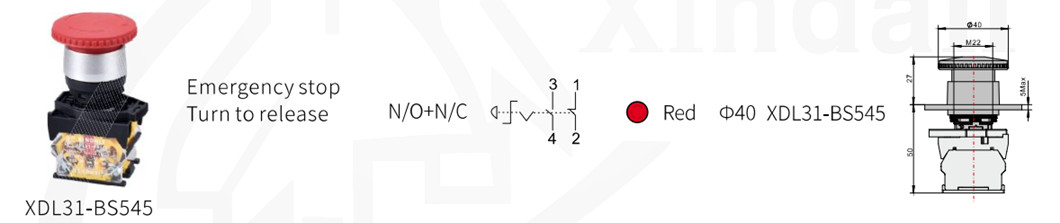

- Contact Configuration
- N/O + N/C
Mechanical Specifications
- Mechanical Life
- 300000 cycles
- Mounting Diameter
- 22 mm
Environmental Durability
Protection Rating
IP40IP54IP65IP66IP67IP68
- Operating Temp Range
- -5°C to +55°C
- Relative Humidity
- 35% - 85% RH
