Mushroom Head Emergency Stop Push Button Switch with Lockout
This is a mushroom head emergency stop push button switch with a lockout feature. The switch is designed for use in industrial control applications where immediate shutdown is required.
Technical Specifications
Product Overview

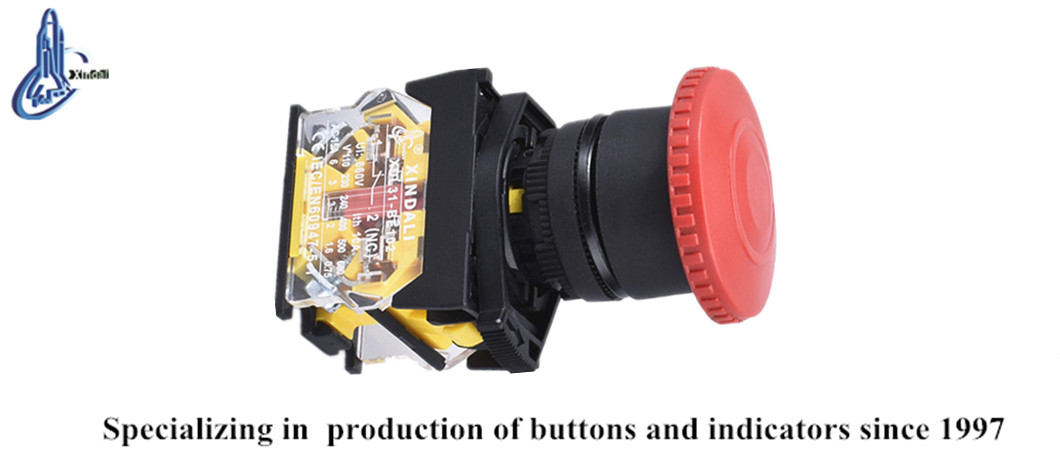

Mushroom Head Emergency Stop Switch
This emergency stop push button switch is engineered for high-reliability industrial control circuits. Featuring a robust mushroom head design, it ensures immediate and intuitive activation for critical safety shutdown procedures. The unit is built to withstand harsh environmental conditions with high vibration and impact resistance, complying with international IEC standards for safety and performance.
Electrical Specifications
Electrical Performance
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Thermal Current
6 kV
Impulse Voltage
- Contact Characteristics
- Slow breakingNC contactNO contact
Environmental Durability
Protection Rating
IP65IP66IP67IP68
- Operating Temperature Range
- -5°C to +55°C
Technical Standards
- Compliance and Standards
- CEISO9001RoHSULIEC60947-5-1GB/T14048.1
Mechanical Data
Lifespan Operations
| Type | Cycles |
|---|---|
| Standard Pushbutton | 3,000,000 |
| Emergency Stop Button | 300,000 |
- Fastening Torque
- 0.8 Nm
