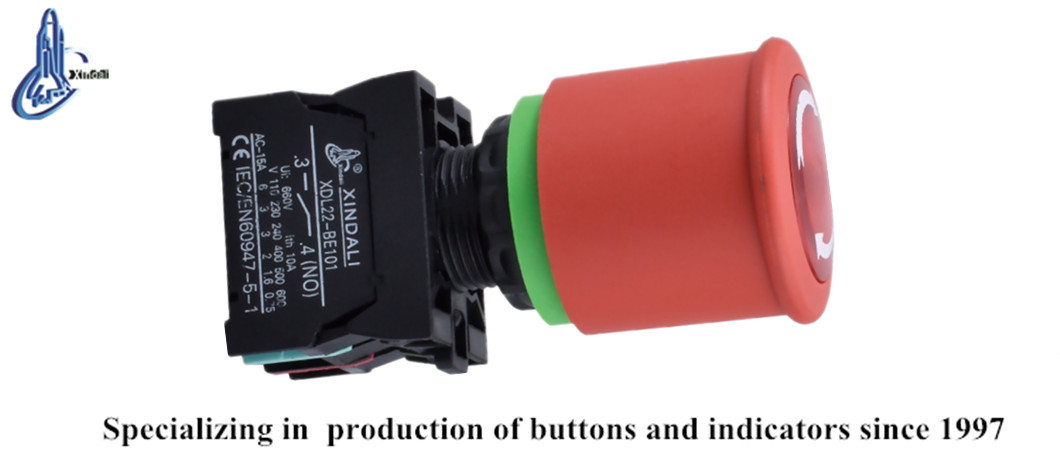

Mushroom Head Emergency Stop Push Button Switch with Light
This emergency stop push button switch features a mushroom-shaped actuator for easy activation. Its turn-to-release mechanism prevents accidental resets, and an integrated light enhances visibility.
Technical Specifications
Overview
Industrial Emergency Stop Safety
This mushroom-head emergency stop switch is engineered for high-reliability circuit control in industrial environments. Featuring a rugged turn-to-release mechanism and an integrated status light, it ensures clear visual feedback and prevents accidental reactivation. Built with premium zinc alloy and anti-flame materials, it provides superior resistance to electrical erosion and harsh operating conditions.
Technical Specifications
Electrical Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Thermal Current
Environment
| Parameter | Rating |
|---|---|
| Operating Temp | -5°C to +55°C |
| Storage Temp | -25°C to +70°C |
| Humidity | 35-85% RH |
| Pollution Grade | 3 |
- Compliance and Protection
- CEISO 9001RoHSULIP67
Mechanical Details
Mechanical Lifespan
- Push-pull type: 300,000 cycles
- Emergency button: 30,000 cycles
Installation Parameters
22 mm
Mounting Hole
0.8 Nm
Fastening Torque
