Mushroom Head Emergency Stop Push Button Switch Turn Release
This mushroom head emergency stop push button switch features a turn-to-release mechanism. It is designed for safety-critical applications requiring immediate power disconnection.
Technical Specifications
Product Overview
Safety-Critical Emergency Stop

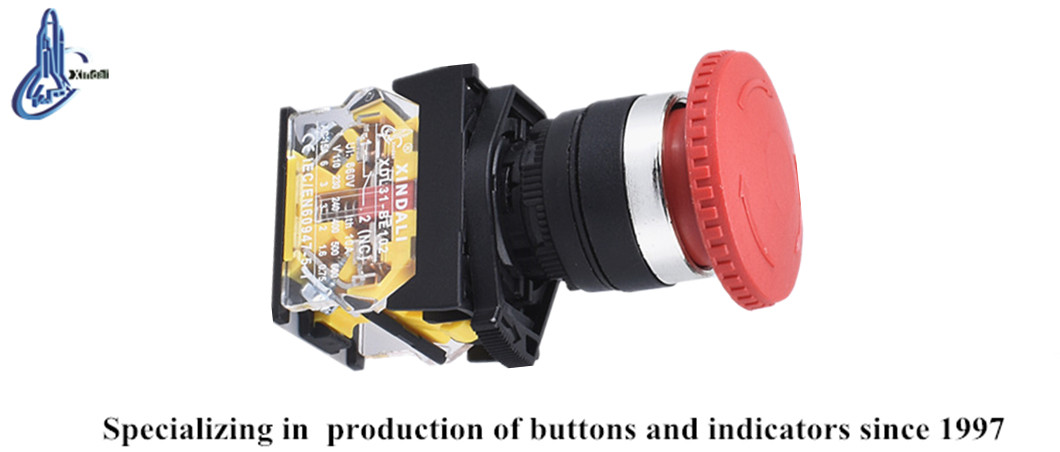

The XDL31-CS545 is a robust mushroom head emergency stop push button switch featuring a reliable turn-to-release mechanism for immediate power interruption. Engineered for safety-critical industrial applications, the switch utilizes high-grade anti-flam plastic and zinc alloy construction with silver alloy contacts to ensure longevity and superior electrical resistance. It complies with major international safety standards, making it an ideal choice for machinery and equipment requiring dependable shutdown capability.
Technical Specifications
- Rated Insulation Voltage (Ui)
- 600 V
- Mechanical Life (Emergency Stop)
- 300000 cycles
- Protection Grade
- IP40IP54IP65IP66IP67IP68
- Compliance Standards
- IEC60947-5-1GB/T14048.1GB14048.5CEISO9001RoHSUL
Operational Environment
Operating Temperature
-5 °C
Min Operating
55 °C
Max Operating
Storage Temperature
-25 °C
Min Storage
70 °C
Max Storage

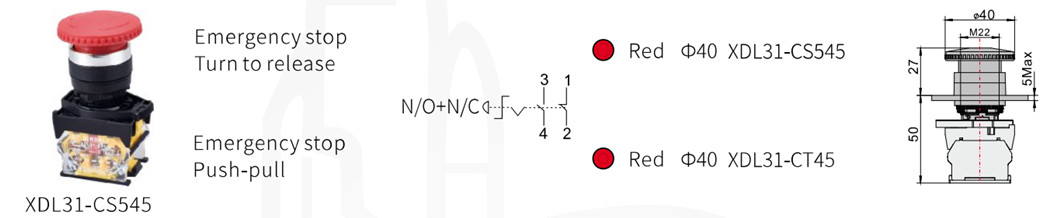

Mechanical Dimensions
Physical Dimensions
| Feature | Value |
|---|---|
| Button Diameter | 40mm |
| Mounting Hole | M22 |
| Panel Thickness | 5mm (max) |
| Total Height | 27mm |
