Mushroom Head Emergency Stop Push Button Switch
This plastic push button switch is designed with a mushroom head for easy operation, especially in emergency situations. It provides reliable reset functionality for various control applications.
Technical Specifications
Product Overview

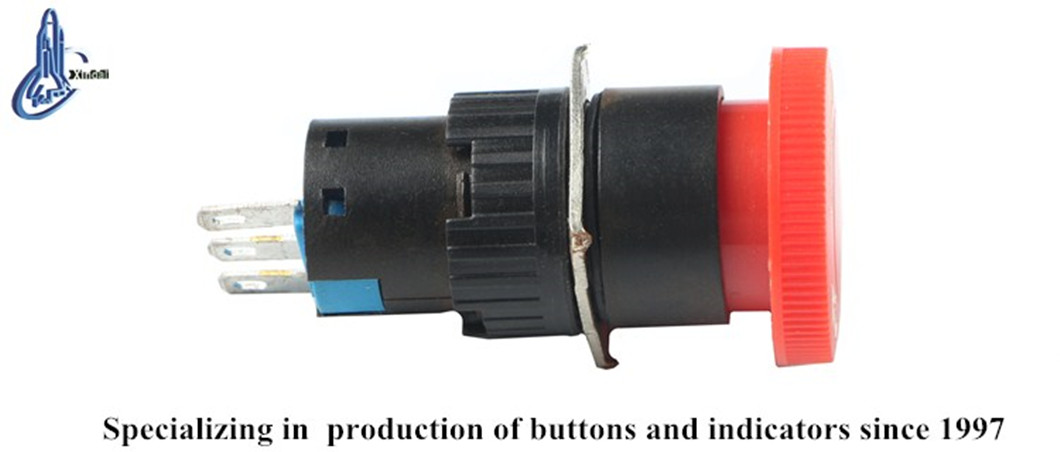

Mushroom Head Emergency Stop Switch
The XDL16-22ZS is a high-performance mushroom head push button switch engineered for critical emergency stop and control applications. Built from robust anti-flame plastic and high-grade zinc alloy, it features silver alloy contacts to ensure superior resistance to electrical erosion. This reliable switch is designed for industrial environments and is fully compliant with international safety standards, making it an ideal choice for control cabinets, distribution systems, and complex electrical circuits.
Electrical Ratings
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Power Frequency Withstand Voltage
- AC 2.5KV/min
- Contact Resistance
- ≤25mΩ
- Insulation Resistance
- ≥50MΩ
Mechanical Specifications
- Mechanical Life
- 1000000
- Mounting Hole Diameter
- 16 mm

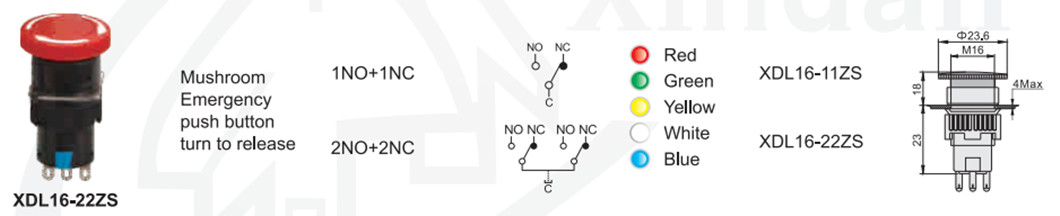

- Contact Configuration
- 2NO2NC
Environmental & Compliance
Certifications
CERoHSULISO9001
- Operating Temperature
- -25°C to +50°C
- Protection Grade
- IP40IP55
