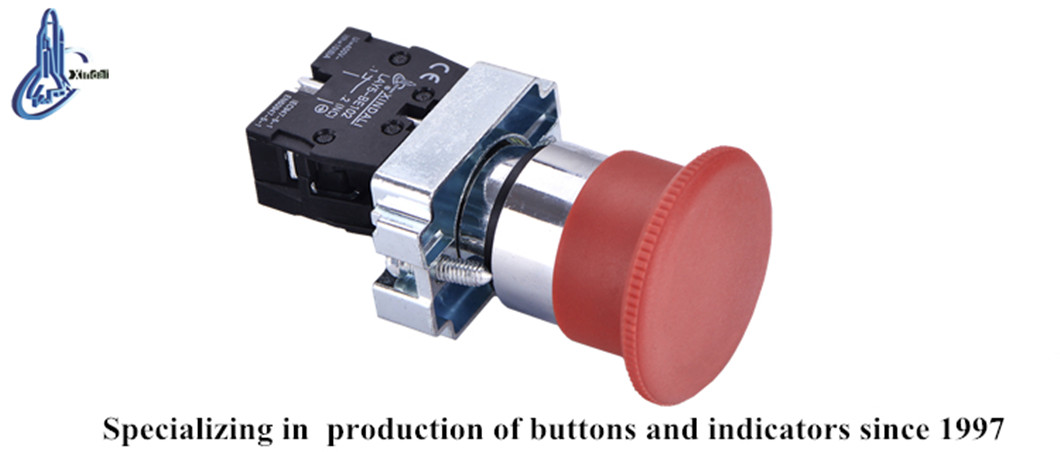

Mushroom Head Emergency Stop Push Button Switch
This emergency stop push button switch features a red mushroom-shaped actuator. It is designed for quick and reliable emergency stops in industrial applications.
Technical Specifications
Overview
Industrial Emergency Stop Solution

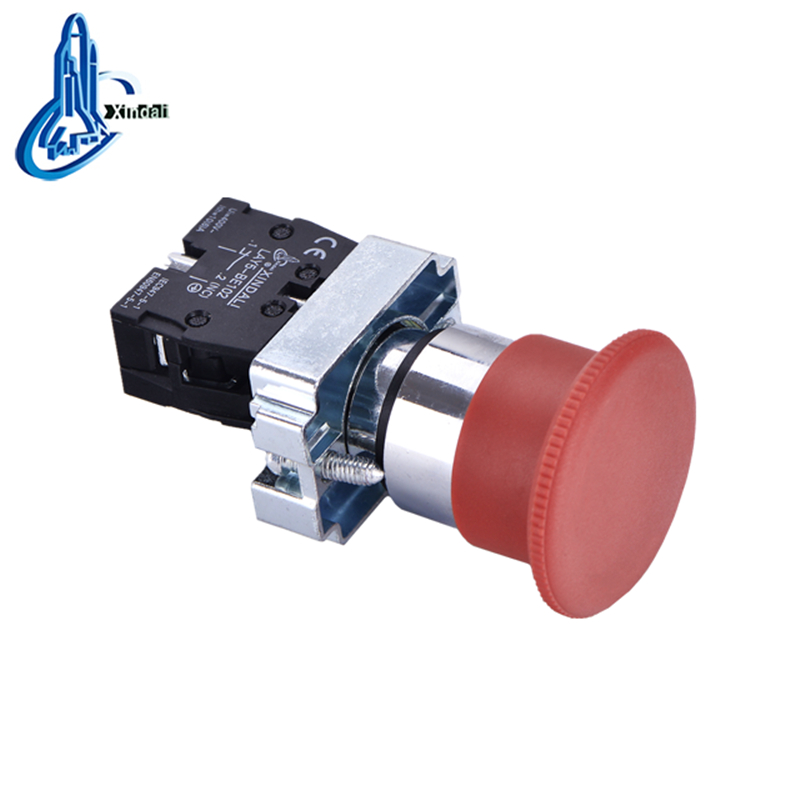

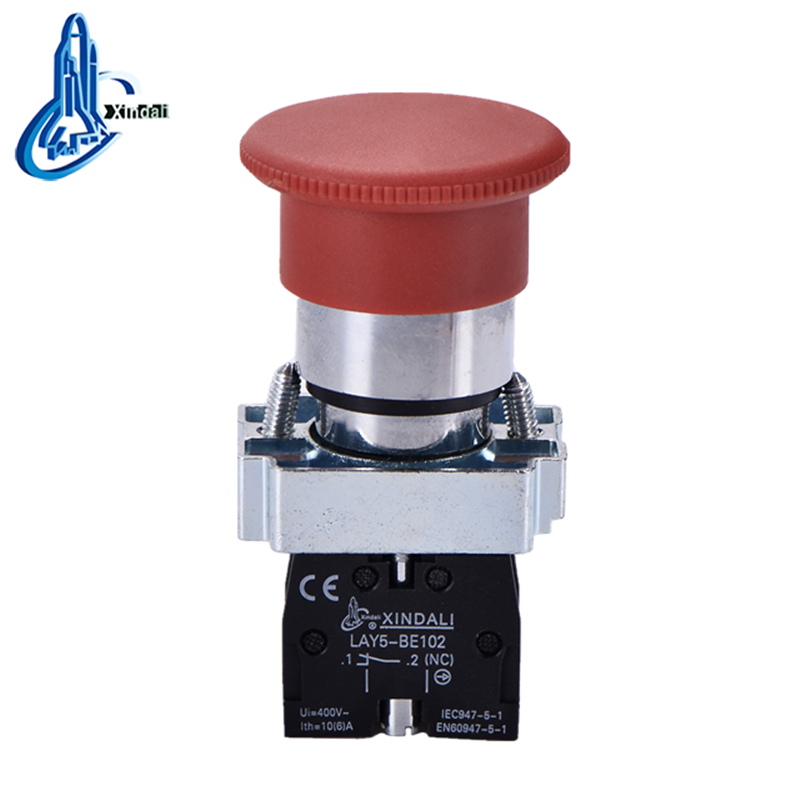

The LAY5-BC42 is a high-performance emergency stop push button switch engineered for critical industrial control applications. Featuring a prominent red mushroom-head design, it ensures immediate and reliable circuit interruption in emergency situations. The unit is constructed with durable materials, including zinc alloy and high-grade anti-flam plastic, and utilizes silver alloy contacts for superior anti-electrical erosion properties, ensuring long-term reliability in demanding environments.
Technical Parameters
Electrical Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Heating Current
Performance Specifications
| Parameter | Value |
|---|---|
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Withstand Voltage | AC 2.5KV/min |
| Voltage Wave | ±20% |
| Brightness | 60cd/m2 |
Durability
Service Life
- Mechanical Life (Pushbutton): 1,000,000 cycles
- Mechanical Life (Selector Switch): 500,000 cycles
- Electrical Life (Pushbutton): 5,000,000 cycles
- Electrical Life (Selector Switch): 250,000 cycles
- Continuous Working Life: 100,000 hours
Certifications
- Compliance & Standards
- CEISO 9001RoHSULGB/T14048.1IEC60947-5-1
Design
Construction Materials
Zinc Alloy BodyHigh-grade Anti-flam PlasticSilver Alloy Contacts
