Technical Specifications

Product Overview

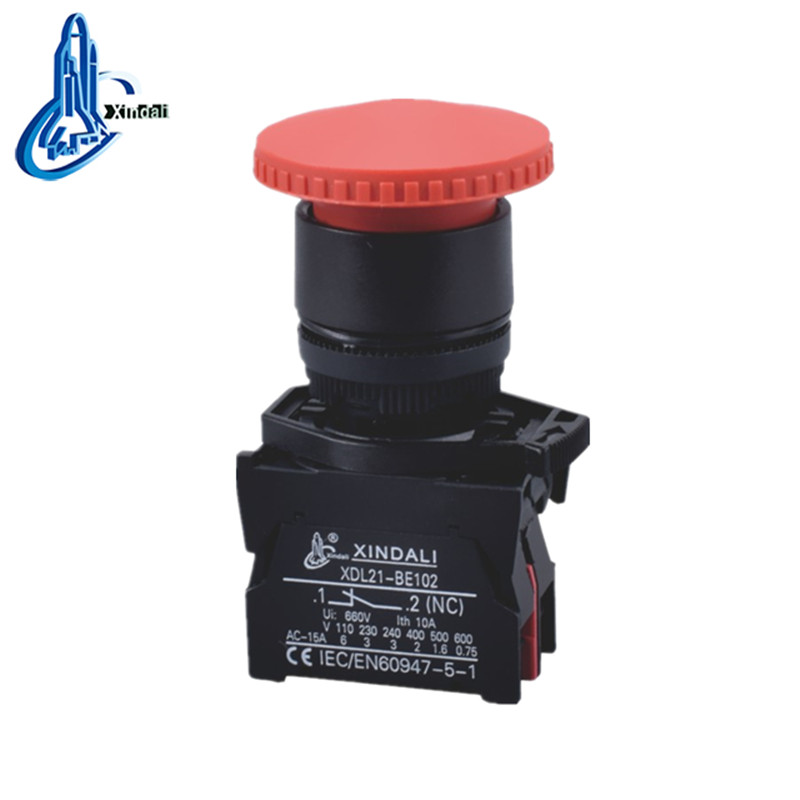

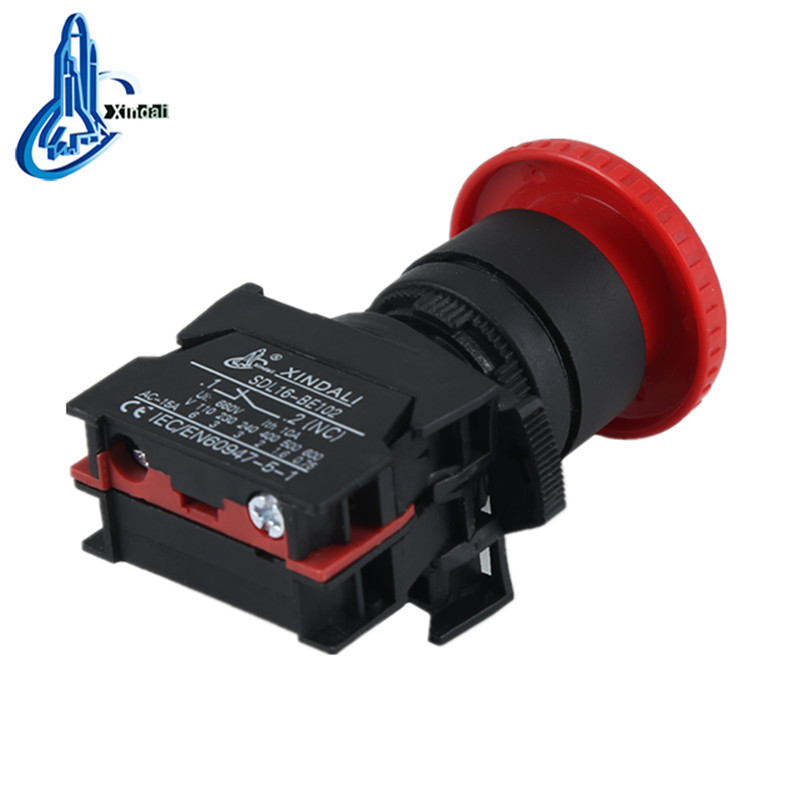

Industrial Grade Safety Switch

This mushroom head emergency stop push button switch is engineered for high-reliability in industrial machinery and control systems. Featuring an IP65 waterproof and dust-resistant rating, it ensures consistent operation in demanding environments. The design utilizes high-grade anti-flam plastic and silver alloy contacts for superior electrical erosion resistance and long-term durability.

Technical Specifications

Electrical Ratings

660 V

Rated Insulation Voltage

10 A

Thermal Current

Performance Metrics

Parameter	Value
Insulation Resistance	≥50MΩ
Contact Resistance	≤25mΩ
Withstand Voltage	AC 2.5KV/min
Indicator Brightness	60cd/m2

Emergency stop switch technical details — Technical diagram showing contact configuration and rated voltage specifications.

Design & Construction

Mounting & Dimensions

Mounting Hole Diameter: 22mm
Mushroom Head Diameter: 40mm
Maximum Panel Thickness: 5mm
Overall Height: 49mm
Head Height: 25.8mm

Certifications: CEISO 9001RoHSULIEC60947-5-1

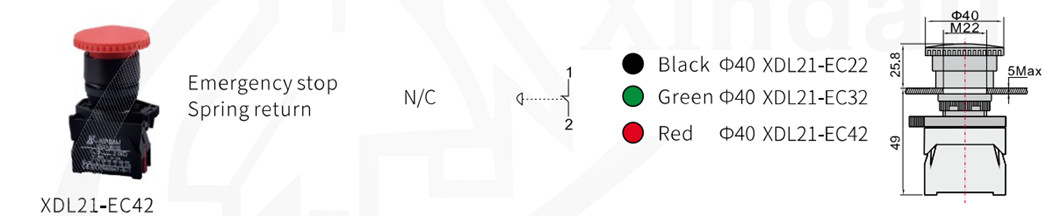

Emergency stop switch dimension diagram — Physical dimensions and mounting specifications for the M22 emergency stop series.
