Technical Specifications
Product Overview
Industrial Emergency Stop Solution
The XDL21-BS542 mushroom head push button switch is designed for reliable emergency control in demanding industrial environments. It features a robust zinc alloy and high-grade anti-flam plastic construction, ensuring durability and safety in critical applications. With a turn-to-release mechanism and N/C contact configuration, it provides a dependable method for manual emergency shutdown across power stations, distribution cabinets, and control systems.
Electrical Specifications
- Rated Insulation Voltage (Ui)
- 660 V
- Thermal Current (Ith)
- 10 A
- Contact Resistance
- 25 mΩ
Performance Metrics
Mechanical Life
300,000 ops
Emergency Stop Cycles
Protection Rating
IP65
Environmental Conditions
- Operating Temperature
- -5°C to +55°C
- Storage Temperature
- -25°C to +70°C
Compliance and Standards
- Certifications
- CEISO 9001RoHSUL
Technical Details

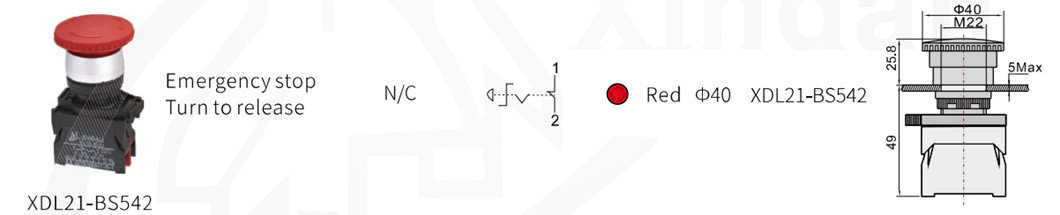

Mounting Specs
| Feature | Dimension |
|---|---|
| Actuator Diameter | 40mm |
| Mounting Thread | M22 |
| Head Height | 25.8mm |
| Total Height | 49mm |
