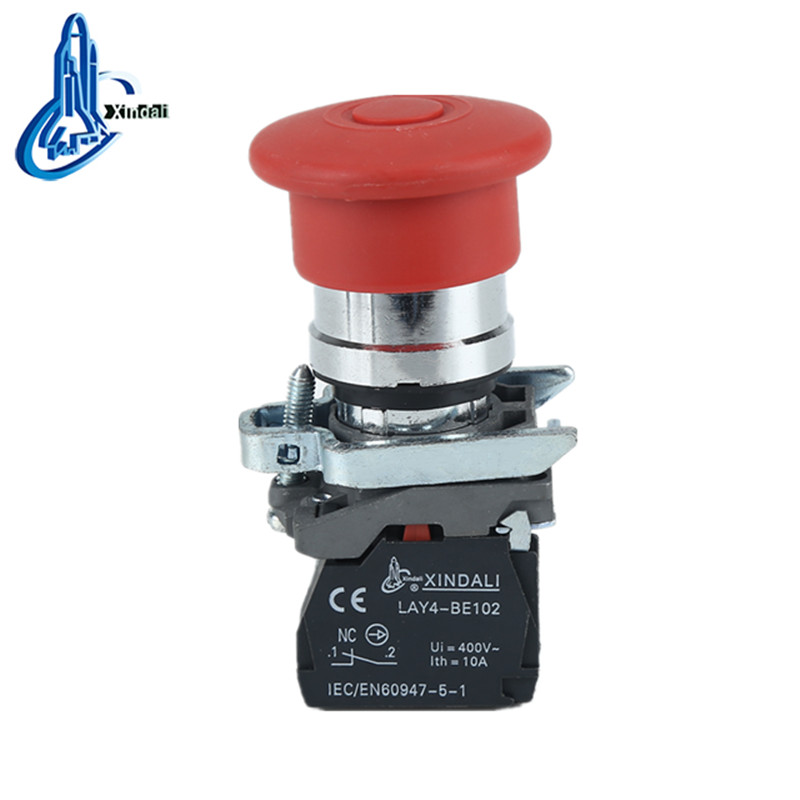

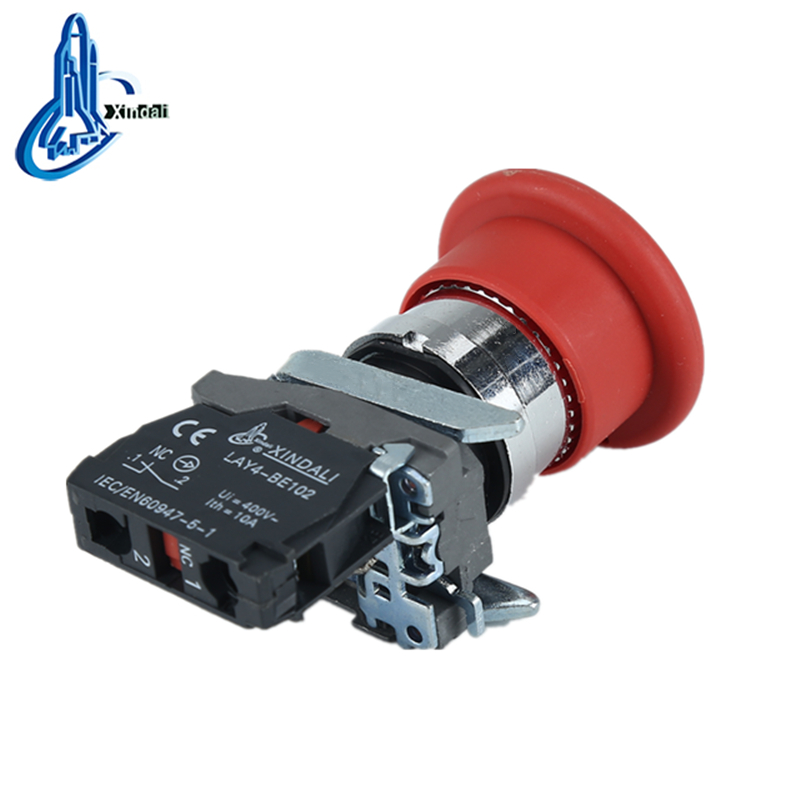

Mushroom Head Emergency Stop Push Button Switch
This emergency stop switch features a prominent red mushroom-shaped button for easy activation. The push-pull switch is constructed with a durable metal housing to withstand harsh environments.
Technical Specifications
Overview
Industrial Emergency Stop Switch

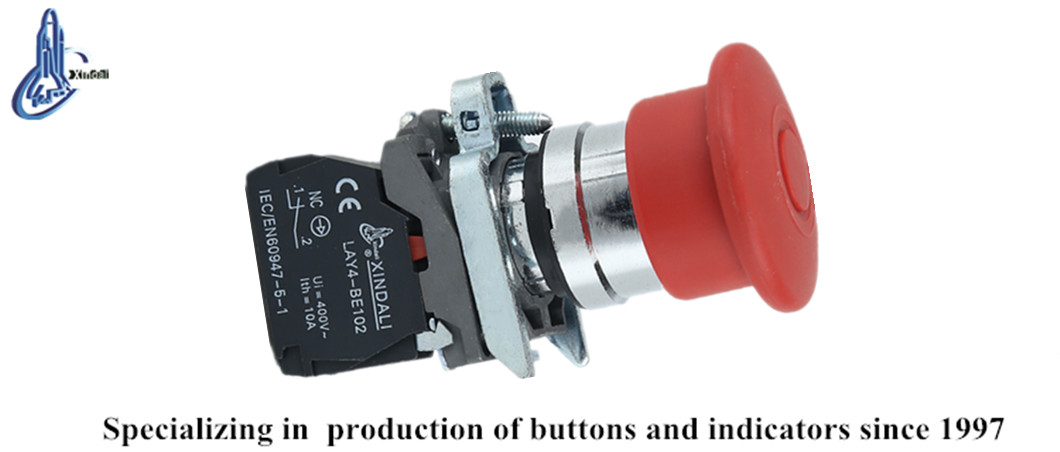

This metal mushroom head emergency stop switch is designed for critical safety applications in industrial environments. Featuring a robust push-pull operation, it ensures immediate and reliable circuit interruption in emergency situations. The unit is constructed with high-grade zinc alloy and anti-flame plastic, offering durability and high resistance to electrical erosion for long-term performance.
Technical Specifications
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Compliance & Standards
Standards Compliance
- GB/T14048.1
- IEC60947-5-1
- Certifications
- CEISO9001ROHSUL
Mechanical Design
Construction Materials
- Zinc Alloy
- High-grade Anti-flame Plastic
- Silver Alloy Contacts

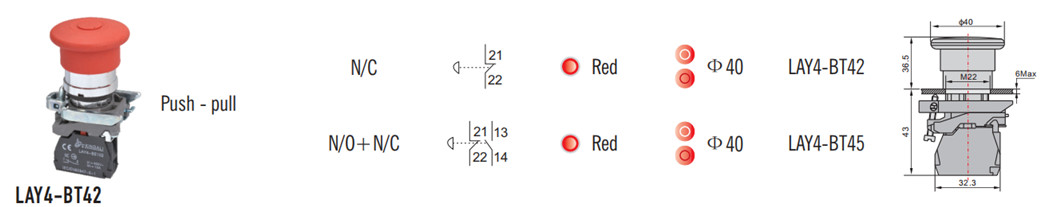

- Mounting Hole Diameter
- 22mm
- Mushroom Head Diameter
- 40 mm
- Operation Mechanism
- Push-Pull
