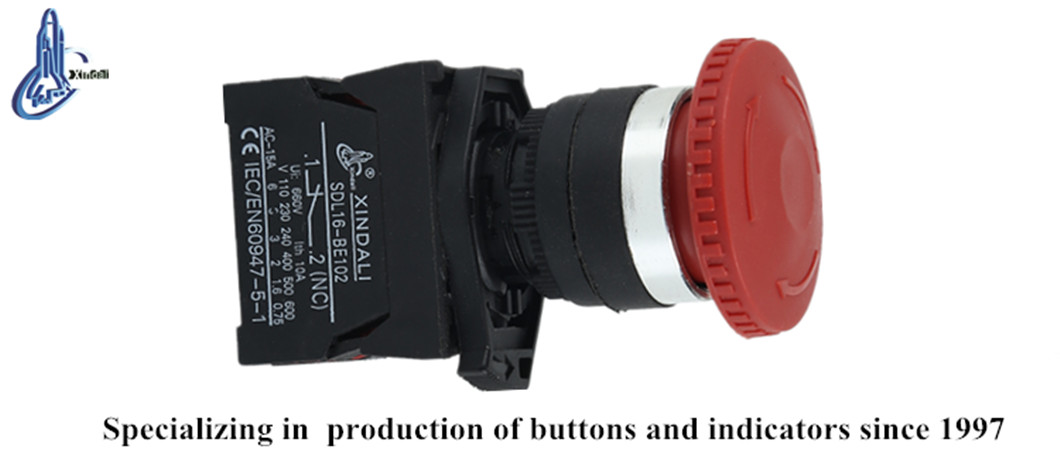

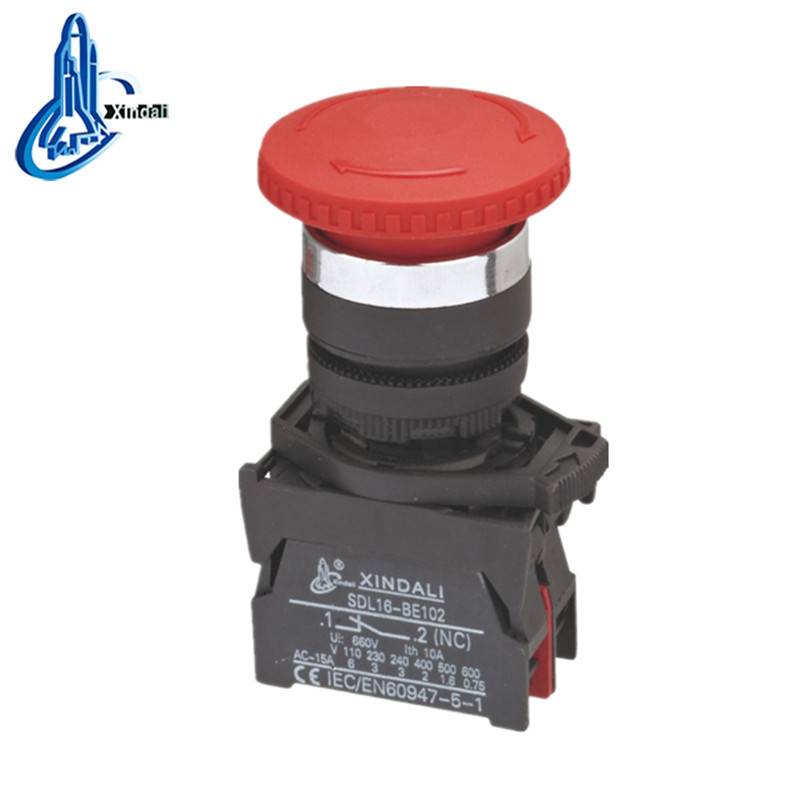

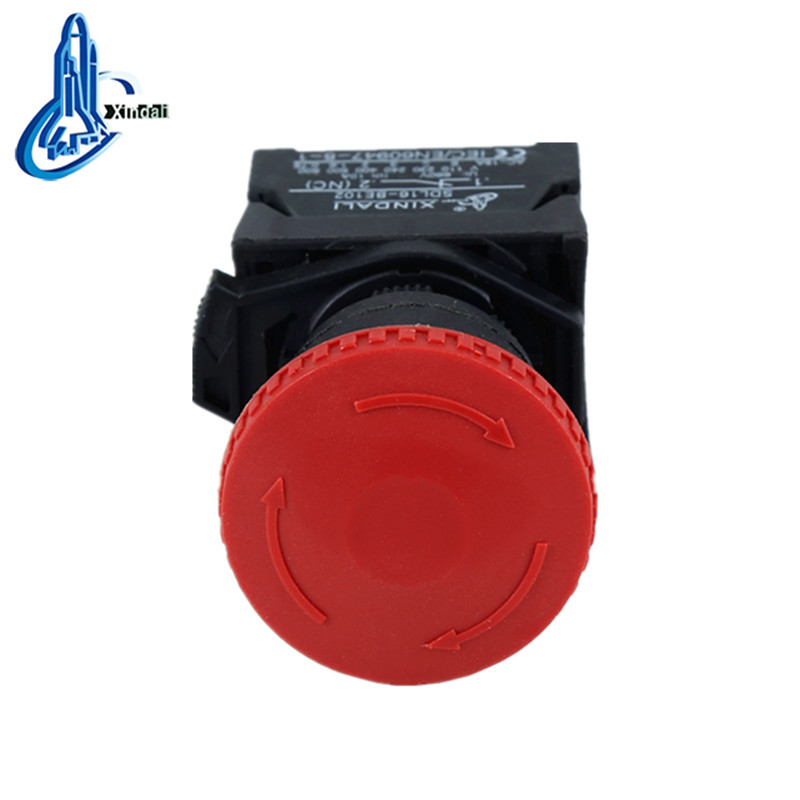

Mushroom Head Emergency Stop Push Button
This emergency stop push button features a red mushroom-shaped actuator for quick activation. The waterproof design ensures reliable performance in various industrial environments.
Technical Specifications
Product Overview
Industrial Emergency Stop Solution
This mushroom-head emergency stop push button is designed for critical industrial control applications requiring reliable and immediate shutdown capabilities. Built for harsh environments, the unit features waterproof construction and specialized silver alloy contacts to minimize electrical erosion. It is fully compliant with international safety standards, making it an ideal choice for distribution cabinets, control panels, and power station infrastructure.
Electrical Specifications
- Rated Insulation Voltage (Ui)
- 600 V
- Thermal Current (Ith)
- 10 A
- Contact Type
- Normally Closed (NC) - Slow breaking
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV

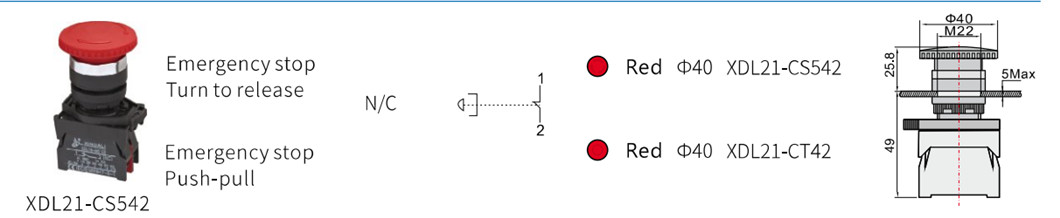

Mechanical Specifications
- Mechanical Life
- 300000 operations
- Actuator Design
- Mushroom Head (40mm diameter)
- Mounting Hole Diameter
- M22
- Reset Method
- Turn to release
Environmental & Standards
Protection Grade
IP65
- Operating Temperature
- -5°C to +55°C
- Standards Compliance
- CEIEC 60947-5-1GB/T 14048.1ROHSISO 9001
