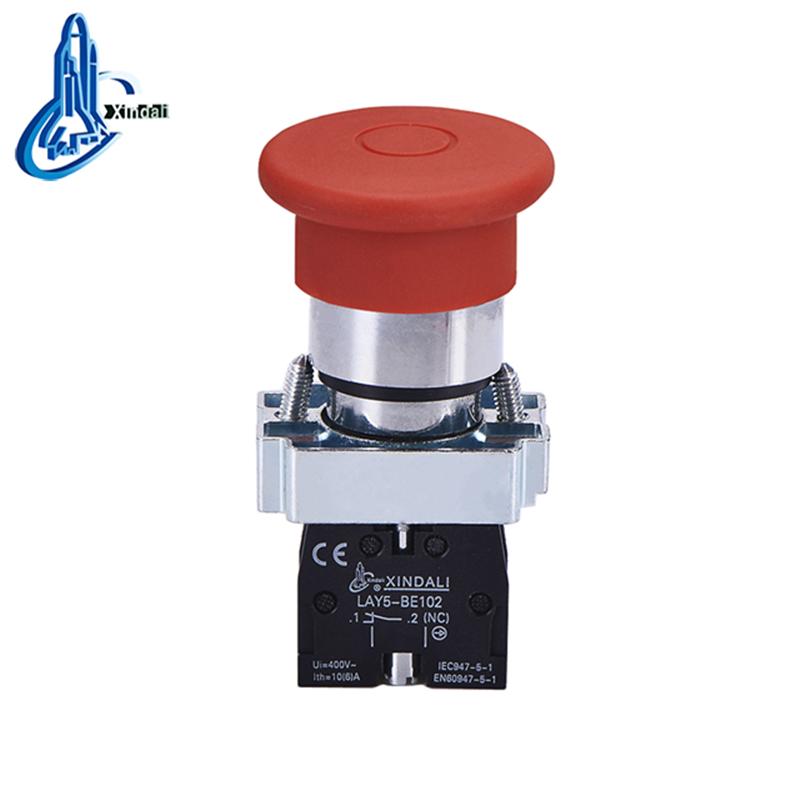

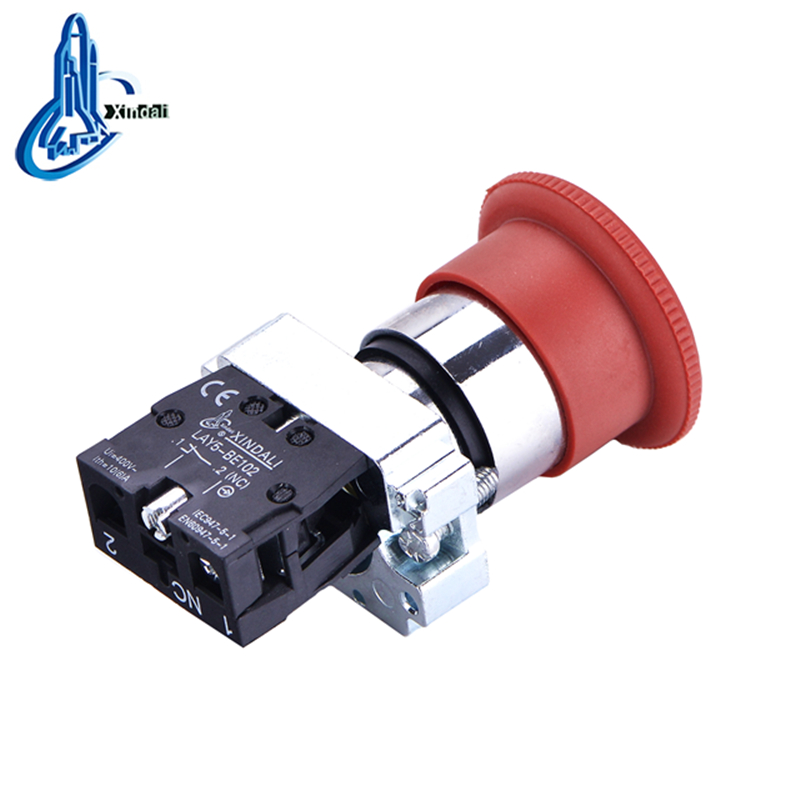

Mushroom Emergency Stop Push Button Switch
This mushroom-shaped emergency stop push button switch features a push-pull mechanism for activation. It provides a reliable solution for immediate shutdowns in critical situations.
Technical Specifications
Overview
Industrial Emergency Stop Solution
The LAY5-BT42 is a robust mushroom-shaped emergency stop push button switch designed for critical industrial safety applications. Featuring a reliable push-pull activation mechanism, this switch ensures immediate circuit interruption to halt machinery or processes in emergency situations. Built with high-grade anti-flame plastic and zinc alloy, it offers durability and performance in demanding environments, fully compliant with international safety standards.
Technical Specifications
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5kV/min
Certifications & Standards
- Standards & Certifications
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
Application & Usage
Typical Applications
- Distribution Boxes
- Distribution Cabinets
- Control Cabinets
- Power Stations
- Communication Networks

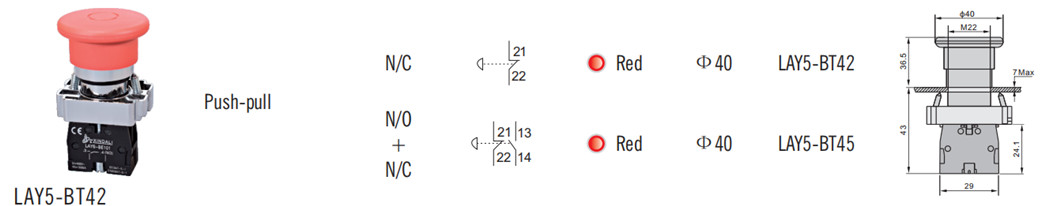

Physical Dimensions
Physical Dimensions
| Feature | Value |
|---|---|
| Actuator Diameter | Φ40mm |
| Mounting Hole Size | M22 |
| Max Panel Thickness | 7mm |
| Base Width | 29mm |
