Technical Specifications

Product Overview

High-Performance Industrial Switch

This momentary LED push button switch is engineered for demanding industrial environments requiring reliable signal and control operations. Built with a combination of zinc alloy and high-grade anti-flam plastic, it offers superior durability and high anti-electrical erosion properties. Its IP67-rated waterproof construction ensures consistent performance in harsh conditions, making it an ideal choice for control panels, machinery, and signaling systems.

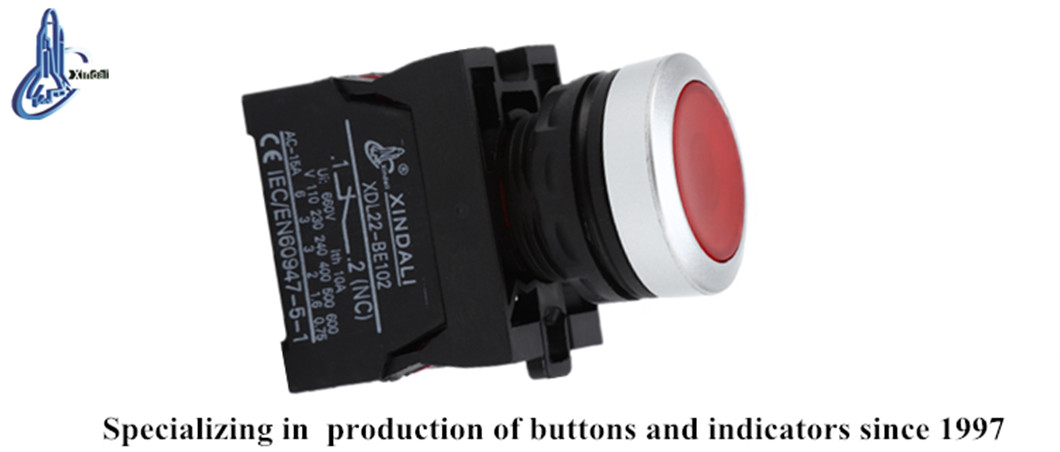

Momentary LED push button switch unit — A robust, waterproof LED push button designed for heavy-duty industrial control interfaces.

Technical Specifications

Voltage Ratings

660 V

Max AC Voltage

400 V

Max DC Voltage

Environmental Durability

Metric	Specification
Operating Temp	-5°C to +55°C
Storage Temp	-25°C to +70°C
Humidity	35% - 85% RH
Pollution Grade	3

Mechanical Properties

Fastening Torque: 0.8Nm (Max: 1.2Nm)
Installation Class: III
Mounting Hole Diameter: 30.4mm
Max Panel Thickness: 6mm

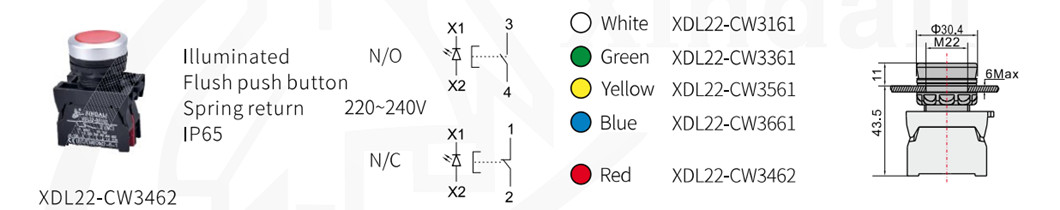

Illuminated flush push button dimensions and wiring guide — Technical diagram showing mounting dimensions and wiring configuration for N/O and N/C contacts.

Certifications

Protection Rating

IP67IP66IP65IP54IP40

Compliance & Certifications: CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
