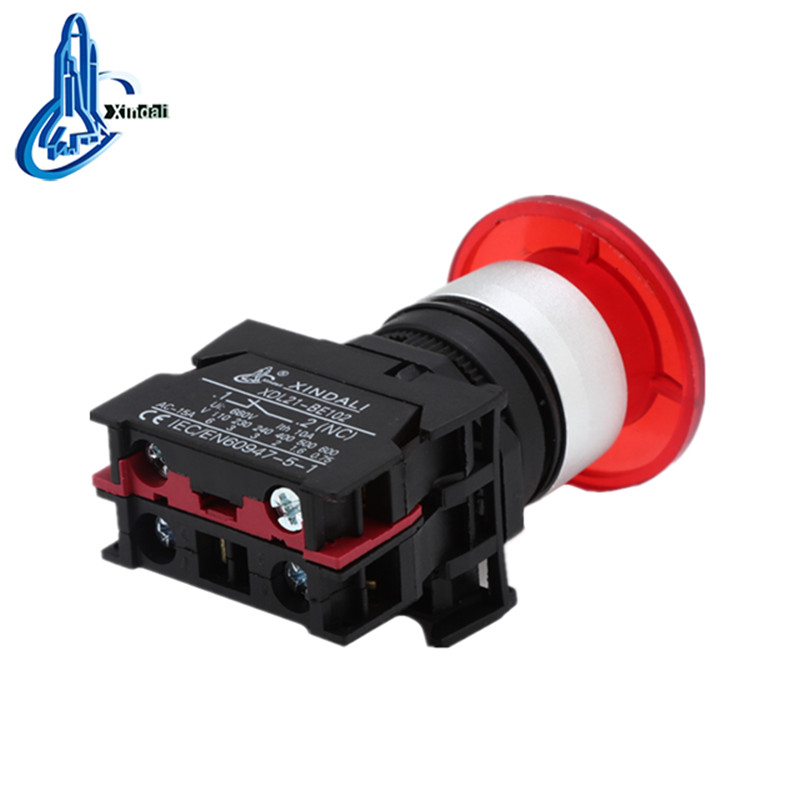

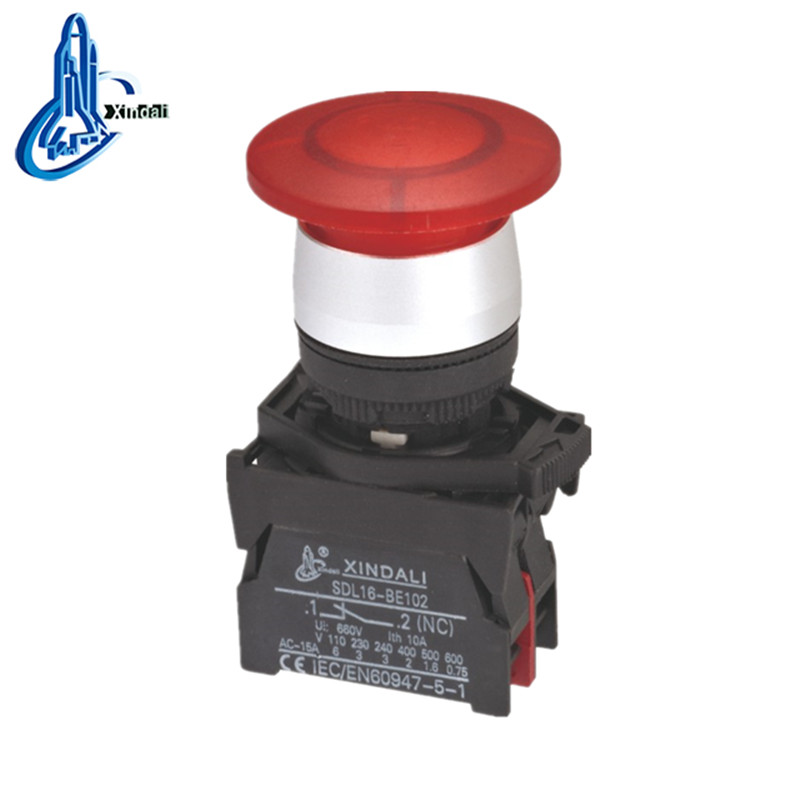

Momentary LED Push Button Switch for Emergency Lighting
This momentary LED push button switch is designed for emergency lighting and remote head pushbutton applications. It features a red illuminated button for clear visibility and immediate recognition.
Technical Specifications
Product Overview
Industrial Grade Momentary LED Push Button
The XDL21-BWC42 is a high-performance momentary LED push button switch designed for critical control applications in industrial environments, including emergency lighting and remote head systems. Built with high-grade anti-flame materials and silver alloy contacts, it offers superior anti-electrical erosion properties and reliable performance. This versatile switch is compatible with AC voltages up to 660V and meets international safety standards including CE, RoHS, and IEC compliance.
Electrical Ratings
Rated Insulation Voltage
600 V
Rated Insulation
- Conventional Heating Current
- 10 A
- Voltage Wave
- ±20%

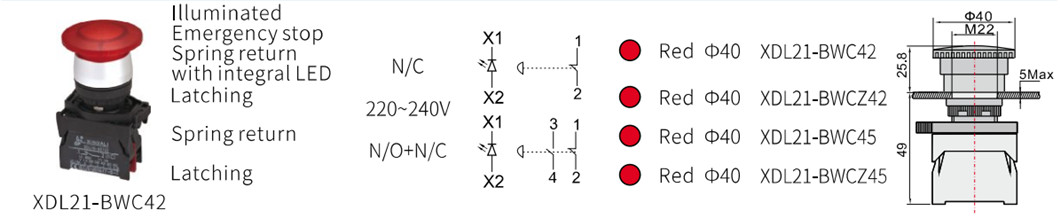

Mechanical Specifications
Ingress Protection
IP65
- Mounting Hole Diameter
- 22 mm
- Max Panel Thickness
- 5 mm
Performance Metrics
Mechanical Life (Cycles)
| Type | Cycles |
|---|---|
| Standard Button | 3,000,000 |
| Emergency Stop | 300,000 |
- Operating Temperature Range
- -5°C to +55°C
Certifications
- Compliance
- CEROHSISO 9001IEC 60947-5-1GB/T14048.1
