Miniature Waterproof LED Push Button Switch
This miniature push button switch features an integrated LED indicator and a waterproof design. It is designed for use in controlling circuits with AC voltage up to 660V and DC voltage below 400V.
Technical Specifications
Product Overview
Compact Industrial Control Solution
This miniature flat light switch is engineered for high-performance signal and control applications in industrial environments. Featuring a robust zinc alloy and high-grade anti-flame plastic construction, it provides reliable operation for electrical circuits up to 660V. With integrated LED indicators and versatile mounting options, this component is ideal for modern control cabinets, distribution boxes, and communication infrastructure.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Contact Resistance
- ≤25mΩ
- Insulation Resistance
- ≥50MΩ
- Withstand Voltage
- AC 2.5kV/min
Operational Metrics
Mechanical Life (Pushbutton)
1,000,000 Operations
Cycles
- LED Brightness
- 60 cd/m2
- Continuous Working Life
- 100000 hours

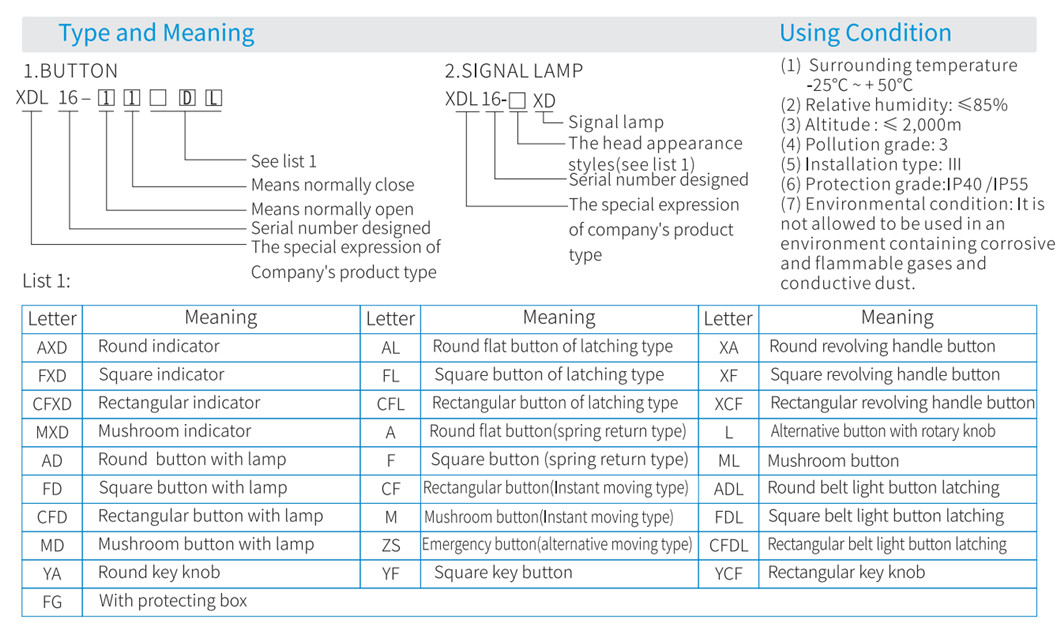

Environmental Conditions
Standards & Certifications
CEISO9001ROHSUL
- Temperature Range
- -25°C to +50°C
- Protection Grade
- IP40IP55

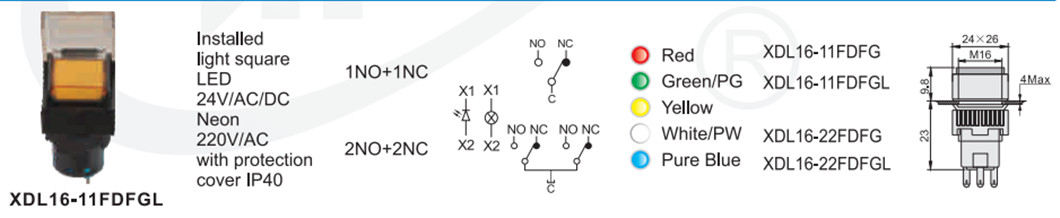

Product Details
Illumination Colors
- Red
- Green
- Yellow
- White
- Pure Blue
- Mounting Diameter
- M16
