Miniature Square LED Indicator Push Button Switch

Technical Specifications

Overview

Miniature Square LED Indicator

The XDL16-CFXD series is a professional-grade 16mm square LED indicator and push button switch designed for industrial control applications. Constructed with durable zinc alloy and high-grade anti-flame plastics, it provides reliable performance in control circuits up to 660V AC. Featuring high-visibility LED illumination, these units are ideal for signaling, warning, and emergency systems.

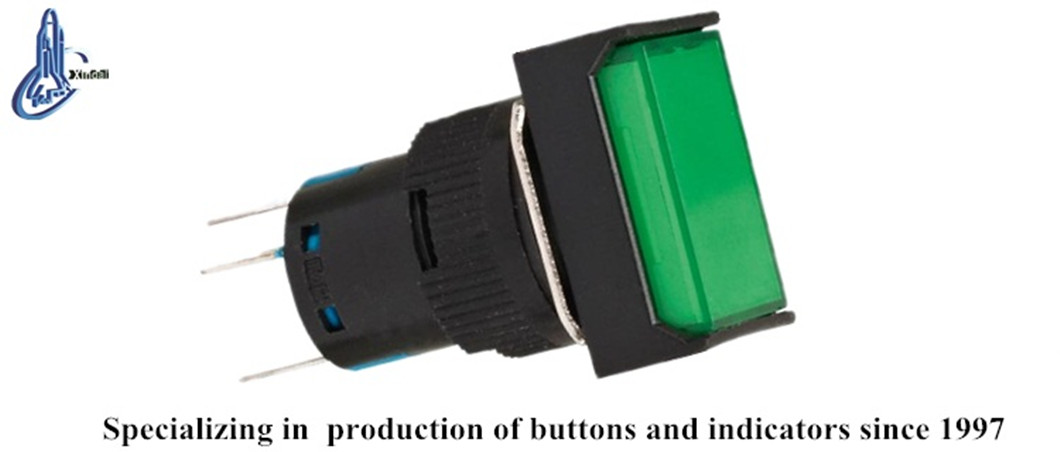

Square LED push button switch — Compact and robust design for high-visibility industrial signaling.

Technical Specifications

Rated Insulation Voltage: 600 V
Conventional Heating Current: 10 A
Insulation Resistance: ≥50MΩ
Contact Resistance: ≤25mΩ
Withstand Voltage: AC 2.5KV/min

Dimensions

Mounting Diameter: 16 mm
Face Dimensions: 18x24mm

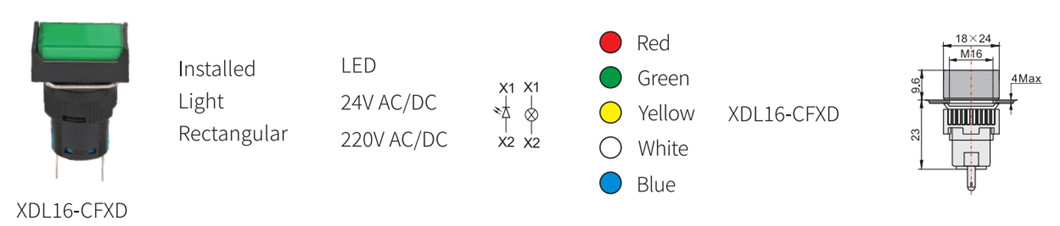

Technical diagram showing dimensions and voltage options — Dimensional specifications and power configuration for the XDL16-CFXD indicator lamp.

Environmental Ratings

Operating Temperature: -25°C to +50°C
Protection Grade: IP40IP55

Compliance

Certifications

CEISO 9001RoHSUL

Standards Met

GB/T14048.1
IEC60947-5-1
