Miniature On/Off Electrical Selector Switch
This miniature electrical selector switch provides on/off control. It features a plastic push button and is designed for applications needing a compact switching solution.
Technical Specifications
Product Overview
Compact Industrial Switching Solution
The XDL16-11XF series is a versatile, miniature selector switch designed for precision control in compact electrical environments. Featuring durable anti-flam plastic and high-grade silver alloy contacts, it ensures long-term operational reliability with superior resistance to electrical erosion. These switches are ideal for integration into distribution cabinets, power stations, and communication networks where space is at a premium.
Technical Specifications
Mechanical Life
500,000 cycles
Selector Switch Cycles
Operating Conditions

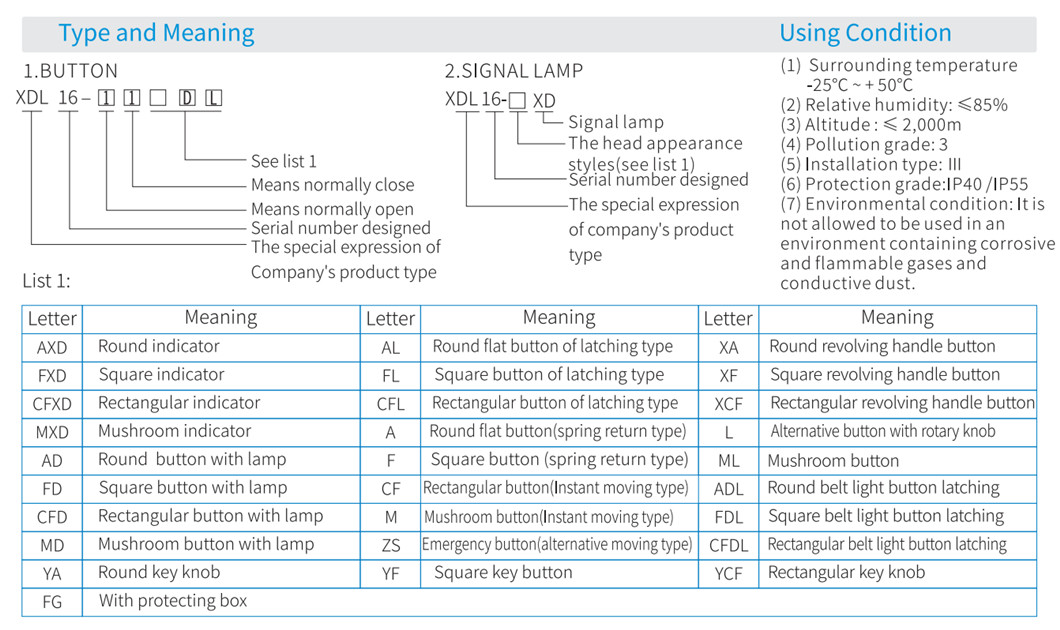

- Temperature range: -25°C to +50°C
- Relative humidity: ≤85%
- Altitude: ≤2,000m
- Pollution grade: 3
- Installation type: III
- Rated Insulation Voltage
- AC 600V (50Hz/60Hz)
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
Certifications
- Compliance
- CEISO 9001ROHSULGB/T14048.1IEC60947-5-1

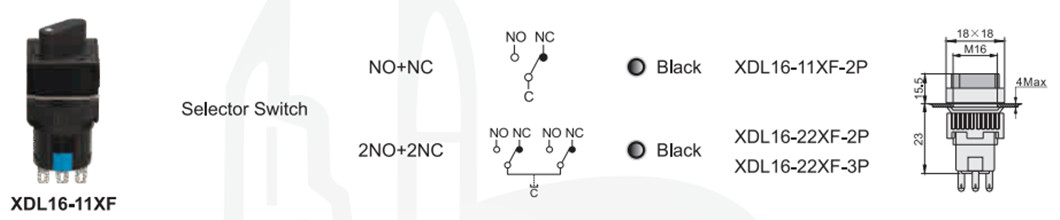

Physical Dimensions
Mounting and Size Specs
| Feature | Specification |
|---|---|
| Mounting Thread | M16 |
| Face Dimensions | 18x18mm |
| Protection Grade | IP40/IP55 |
