Metal Three-Position Pushbutton Switch
This metal three-position pushbutton switch is designed for controlling circuits in applications up to 660V AC or 400V DC. It is ideal for use as a control signal and for interlocking purposes.
Technical Specifications
Overview

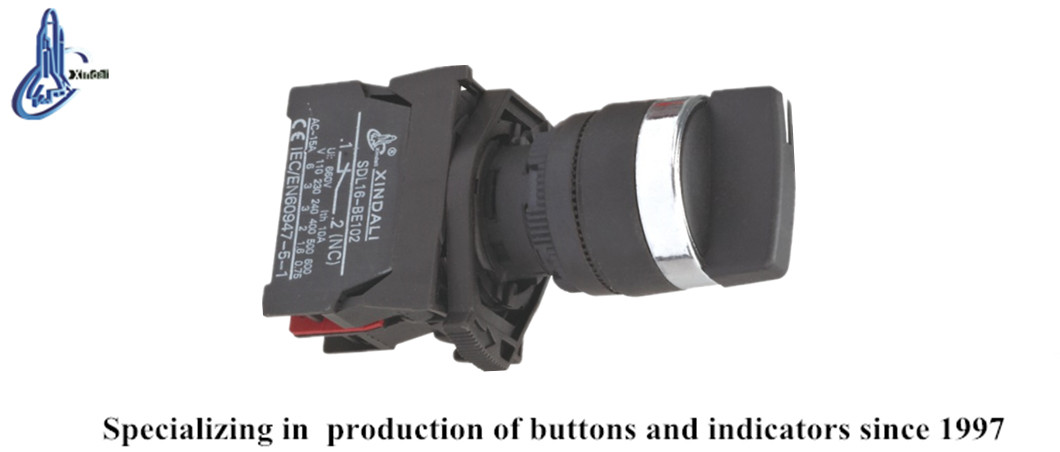

Industrial Three-Position Selector Switch
This high-performance three-position selector switch is engineered for demanding industrial control environments. Constructed with a durable zinc alloy body and high-grade anti-flam plastic, it ensures reliable operation for signal control and interlocking purposes. Designed for compatibility with AC and DC circuits, this switch meets international safety standards including CE, RoHS, and IEC compliance, making it an ideal choice for distribution cabinets and power control stations.
Electrical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Contact Resistance
- ≤25mΩ
- Insulation Resistance
- ≥50MΩ
Operational Metrics
Mechanical Life (Selector)
500,000 cycles
Operations
Ingress Protection
IP65
Environmental Data
- Operating Temperature Range
- -5°C to +55°C
- Storage Temperature Range
- -25°C to +70°C
Compliance
- Standard Certifications
- CERoHSISO 9001IEC 60947-5-1

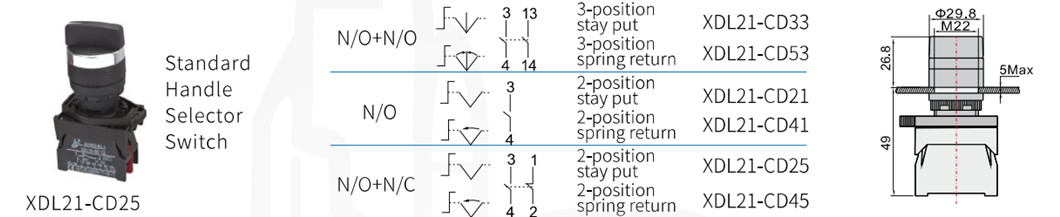

Physical Dimensions
Mounting Dimensions
| Attribute | Value |
|---|---|
| Mounting Hole Diameter | 22mm |
| Max Panel Thickness | 5mm |
| Overall Height | 49mm |
