Technical Specifications
Product Overview

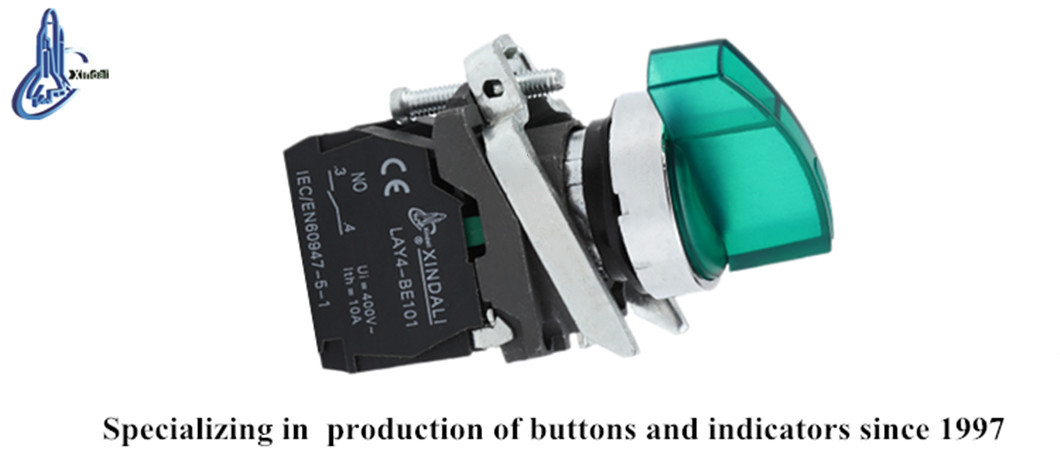

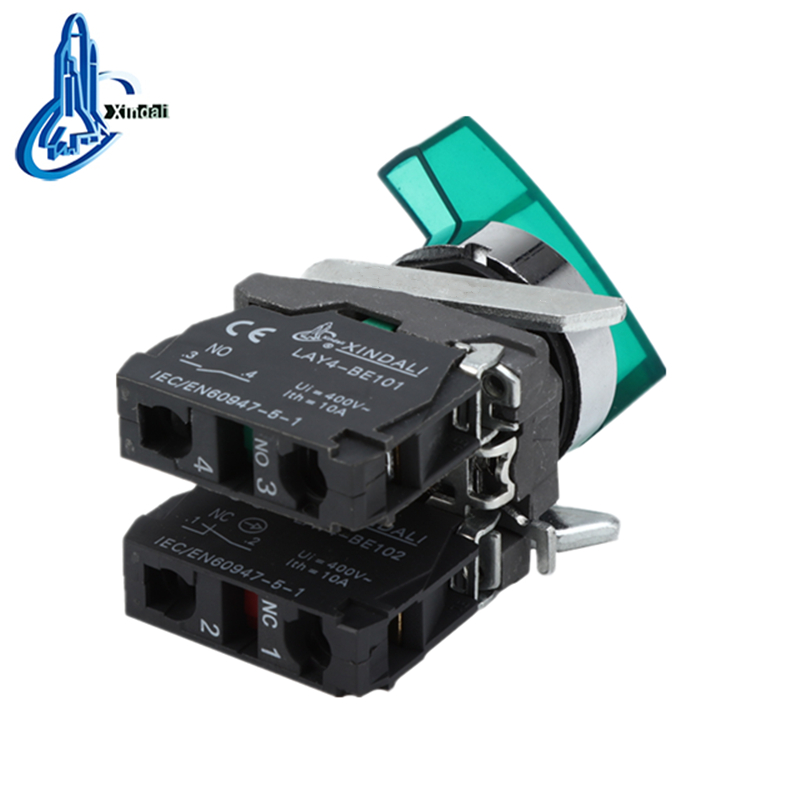

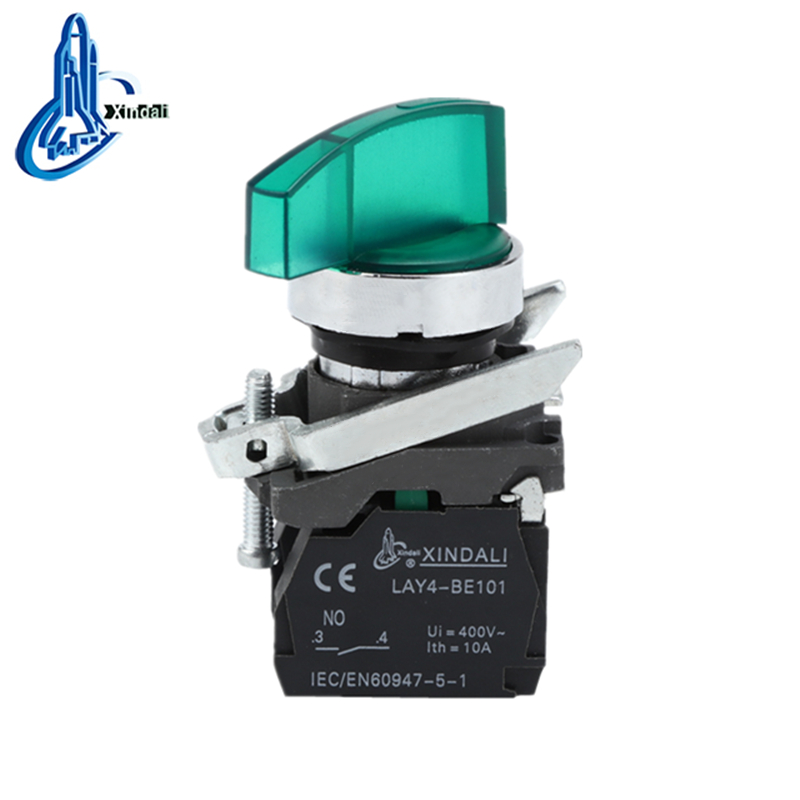

Industrial Metal Push Button Switch
This robust metal push button switch is designed for reliable control in industrial electrical applications, including distribution boxes, control cabinets, and power stations. Featuring a durable zinc alloy and high-grade anti-flame plastic construction, it offers excellent longevity and resistance to electrical erosion. The unit is available in versatile configurations, including 2-position and 3-position selector styles with integrated LED indicators, ensuring clear visual status signaling.
Electrical Ratings
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Power Frequency Withstand Voltage
- AC 2.5KV/min
- Voltage Wave Tolerance
- ±20%
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Signal Lamp Performance
60 cd/m2
Brightness
100,000 hours
Working Life
Physical Specifications

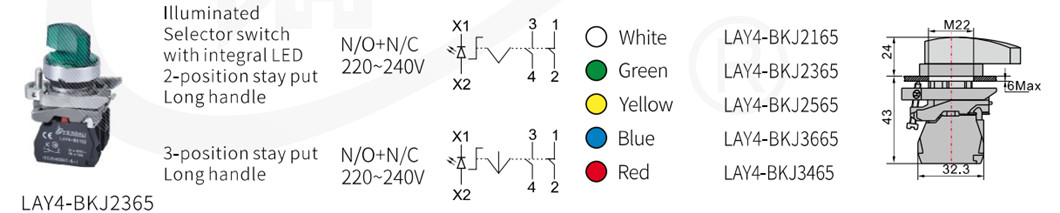

Mounting Dimensions
- Hole Diameter: 22mm
- Max Panel Thickness: 6mm
Available Colors
WhiteGreenYellowBlueRed
Compliance
- Certifications & Standards
- CERoHSIEC60947-5-1GB/T14048.1
