Metal Push Button Switch Double Pole
This metal push button switch offers on-off control with its double pole design. It is constructed for durability, making it suitable for industrial and commercial applications.
Technical Specifications
Overview

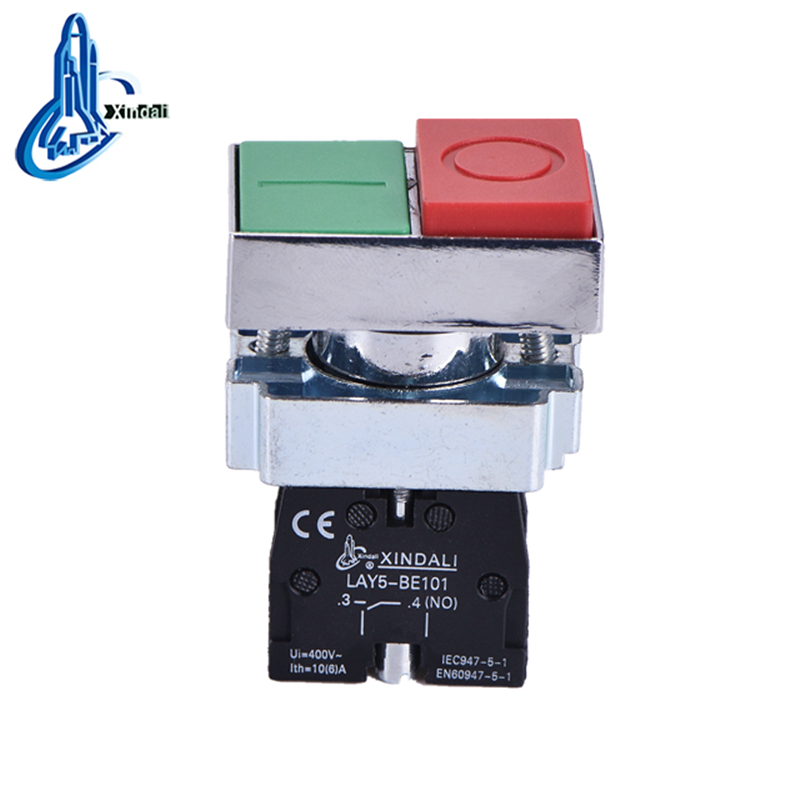

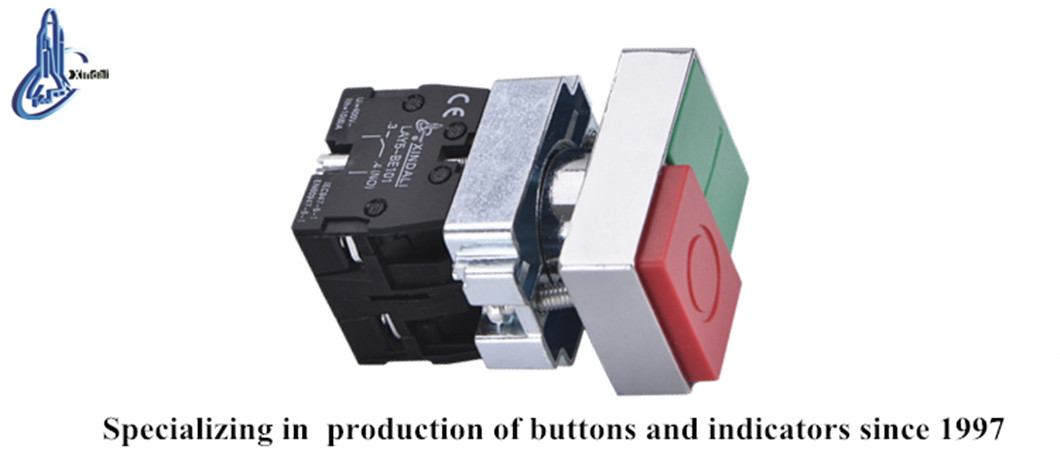

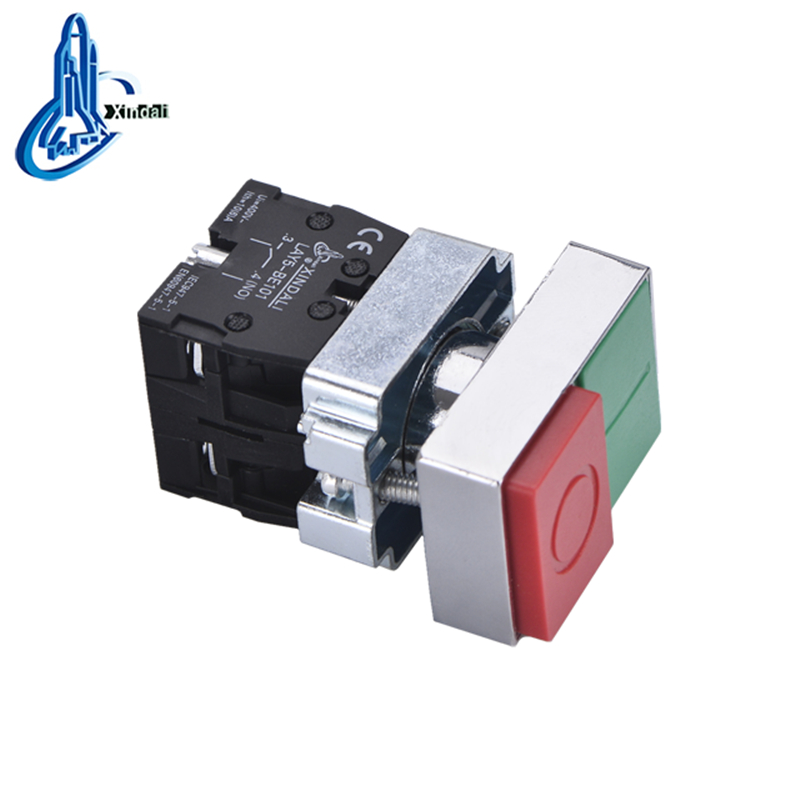

Industrial Metal Push Button Switch
This double-pole metal push button switch is engineered for demanding industrial control applications, offering reliable on-off functionality. Constructed with a zinc alloy body and high-grade anti-flame materials, it ensures durability and resistance to electrical erosion. The switch is designed for versatile use in control circuits, distribution cabinets, and power stations, complying with international safety standards.
Technical Specifications
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Certifications & Compliance
- Certifications
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
Physical Characteristics

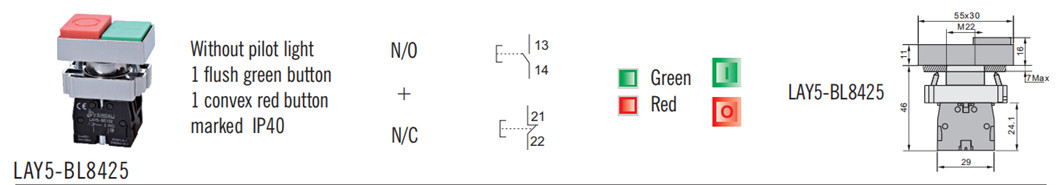

Key Dimensions
| Feature | Specification |
|---|---|
| Mounting Type | M22 |
| Top Dimensions | 55 x 30 mm |
| Base Width | 29 mm |
| Overall Height | 46 mm |
Protection Rating
IP40
