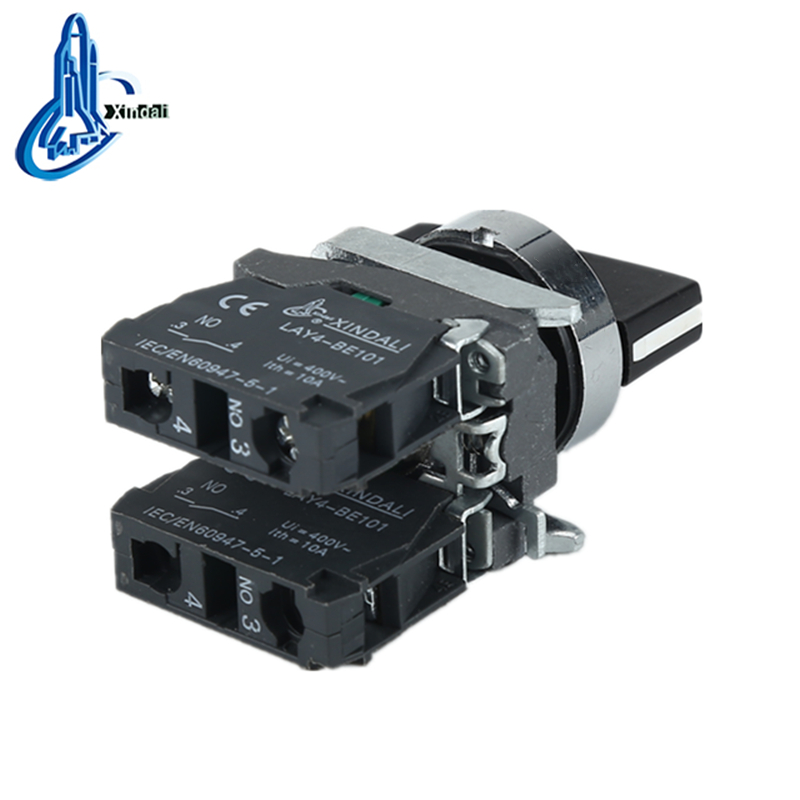

Metal Push Button Handle Switch
This metal push button switch is designed for industrial applications. It features a durable metal handle and robust construction for longevity.
Technical Specifications
Overview

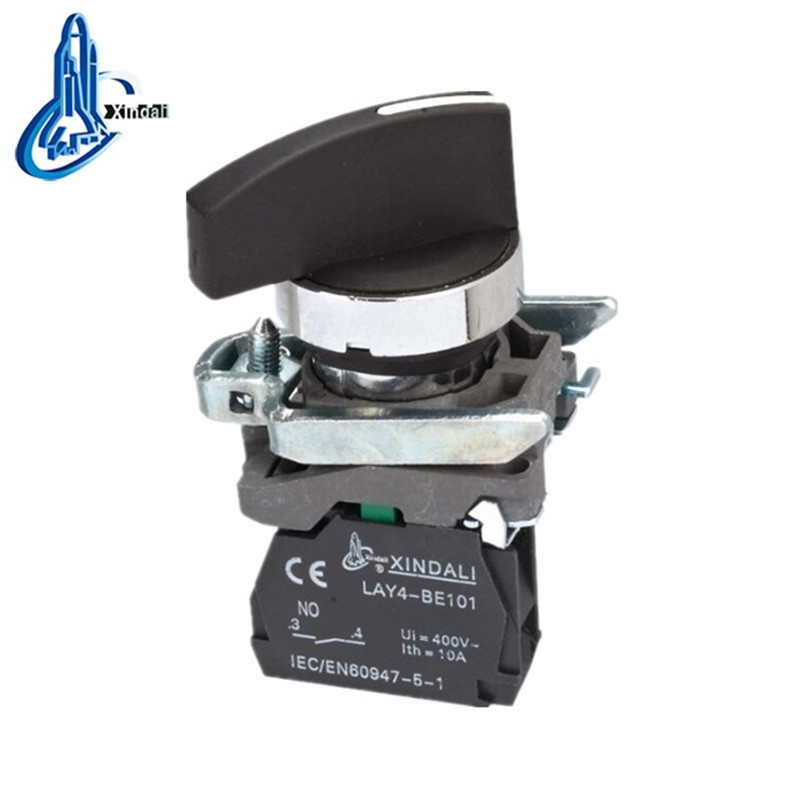

Industrial Metal Selector Switch
This robust metal selector switch is engineered for demanding industrial environments, featuring a durable metal handle for reliable operation. Designed for control circuits up to 660V AC or 400V DC, it provides precise signal control and interlocking capabilities. The unit is built with high-grade materials and silver alloy contacts to resist electrical erosion, ensuring a long service life in applications like distribution cabinets and power stations.
Electrical Ratings
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50 MΩ
- Contact Resistance
- ≤25 mΩ
- Withstand Voltage
- AC 2.5kV/min
Performance
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch

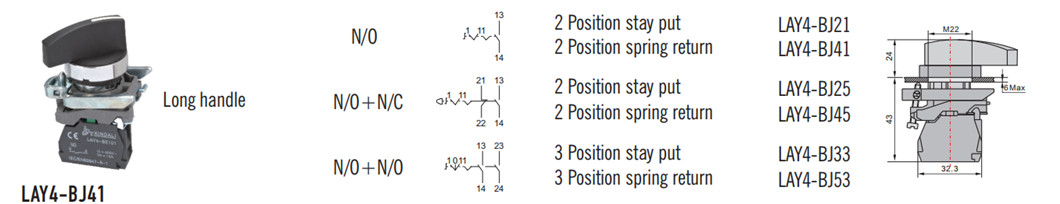

Dimensions & Mounting
Physical Dimensions
| Feature | Value |
|---|---|
| Base Width | 32.3 mm |
| Body Height | 43 mm |
| Handle Height | 24 mm |
- Mounting Hole Diameter
- 22 mm
- Max Panel Thickness
- 6 mm
Certifications & Compliance
- Certifications
- CEISO 9001RoHSULIEC 60947-5-1
