Technical Specifications
Overview

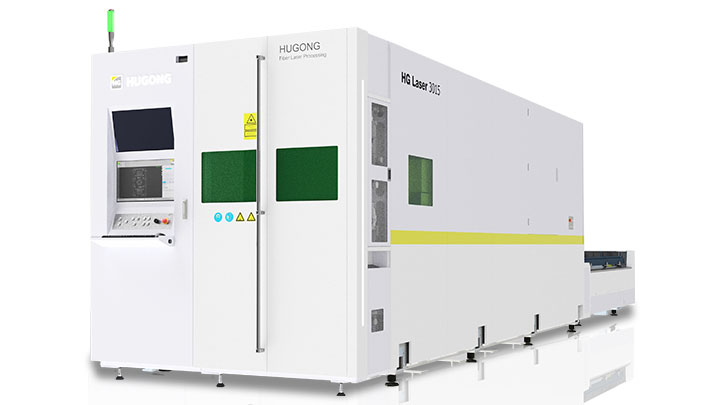

High-Precision Fiber Laser Cutting
This industrial-grade metal fiber laser cutting machine is engineered for high reliability, exceptional speed, and superior accuracy compared to traditional plasma or punching methods. Designed for versatility, it supports power configurations from 3kW to 15kW, making it ideal for processing various metal materials with clean edges and minimal waste. The system features a user-friendly interface, lower power consumption, and enhanced safety features to ensure an efficient and productive workflow for modern manufacturing environments.
Key Benefits
- Higher reliability via optimized table structure
- Superior cutting accuracy compared to plasma
- Faster processing speeds than punching
- Lower power consumption versus CO2 lasers
- Reduced noise and dust emission
- Enhanced worker safety
Performance Metrics
Performance Specifications
80 m/min
Max Transverse Speed
0.8 G
Acceleration
0.05 mm
Positioning Accuracy
0.03 mm
Repeating Accuracy
Technical Specifications
Model Comparison
| Feature | HGLB3015Q | HGLB3015E |
|---|---|---|
| Process Area (mm) | 1500x3000 | 1500x3000 |
| Total Weight (kg) | 5600 | 4000 |
| Overall Size (mm) | 10000*3100*2200 | 4500*2400*2100 |
Process Gases
O2 (M.S)N2 (S.S)
- Compatible Laser Sources
- IPGRaycusN-light
- CNC System
- Friendess/CYPUT
